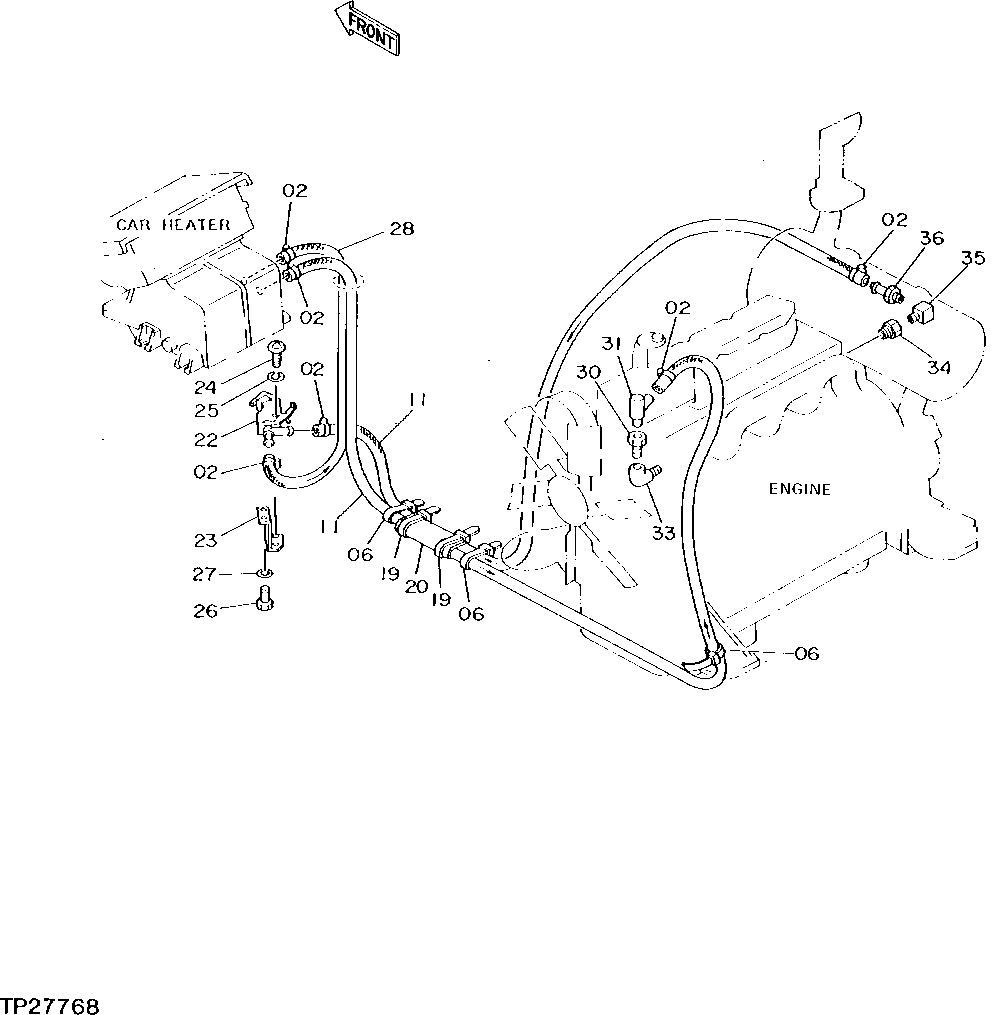

Запчасти John Deere 0D 4 - CAB HEATER PIPINGS 1830 - OPERATORS STATION 18

2

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

6шт.

6

H77698

TIE BAND

7шт.

11

HOSE

(MAKE FROM TY22328) (SUB FOR T78162) (HEATER TO ENGINE) (SHUTOFF VALVE TO ENGINE)

2шт.

19

H77698

TIE BAND

2шт.

20

4167524

ISOLATOR

(SUB FOR TH106494, 4326809) (SUB FOR AT164251)

1шт.

22

4195823

DRAIN VALVE

(SUB FOR TH108790)

1шт.

23

4213673

BRACKET

(SUB FOR TH110629)

1шт.

24

21M7252

SCREW

M4 X 16

2шт.

25

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

26

19M8324

CAP SCREW

M10 X 16

2шт.

27

12M7066

LOCK WASHER

10 MM

2шт.

28

HOSE

( TH110630 OR T115300 NO LONGER AVAILABLE) (CUT TO LENGTH FROM TY22326 BULK MATERIAL) (HEATER TO SHUTOFF VALVE)

1шт.

30

15H586

ADAPTER FITTING

3/8", (SUB FOR TH101079)

1шт.

31

AT105319

HAND OPERATED VALVE

(SUB FOR TH101081, ALONG WITH T103301, 15H597 AND 29H587) (SHUTOFF)

1шт.

15H597

COUPLING

3/8"

1шт.

29H587

THREADED NIPPLE

3/8"

1шт.

T103301

HOSE FITTING

1шт.

33

T107030

ELBOW FITTING

12.700 MM (1/2")

1шт.

34

15H586

ADAPTER FITTING

3/8"

1шт.

15H590

PIPE BUSHING

1/2", TO BLOCK

1шт.

35

T23837

FITTING

9.525 MM (3/8")

1шт.

36

R42312

HOSE FITTING

1шт.
