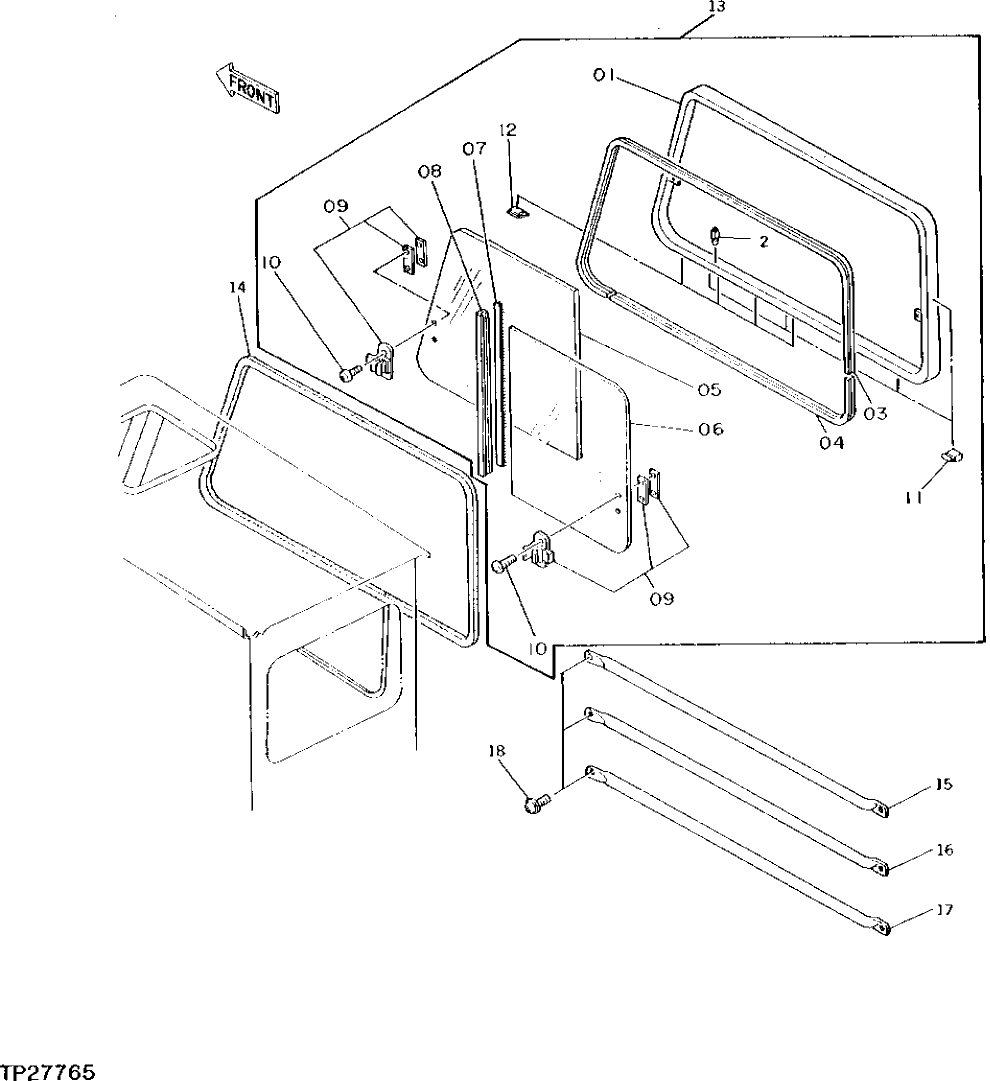

Запчасти John Deere 0D 6 - CAB WINDOW 1810 - OPERATORS STATION 18

1

FRAME

(SUB FOR TH110474) ( 4172316 NLA)

1шт.

2

4172320

STOP

(SUB FOR TH106630)

1шт.

3

4172318

RUNNER

(SUB FOR TH106620)

1шт.

4

4172319

RUNNER

(SUB FOR TH110476)

1шт.

5

TH106623

WINDOWPANE

1шт.

6

TH106622

WINDOWPANE

1шт.

7

4141711

WEATHERSTRIP

(SUB FOR TH106624)

1шт.

8

4217896

CHANNEL

(SUB FOR TH110754)

1шт.

9

4369653

LOCK

(SUB FOR TH106626, 4295610 AND 4141713)

2шт.

10

4219753

SCREW

(SUB FOR TH110774)

4шт.

11

4141714

SPACER

(SUB FOR TH106628)

4шт.

12

4141715

COVER

(SUB FOR TH106629)

4шт.

13

WINDOW

( TH110772 NO LONGER AVAILABLE)

1шт.

14

4217862

RUNNER

(SUB FOR TH110724)

1шт.

15

4217863

GUARD

(SUB FOR TH110725)

1шт.

16

4217864

GUARD

(SUB FOR TH110726)

1шт.

17

4217865

GUARD

(SUB FOR TH110727)

1шт.

18

4141745

SCREW

(SUB FOR TH106637)

6шт.

20

4369154

CAB

(SUB FOR TH110615) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (USE IF AVAILABLE)

1шт.

4369154

CAB

(SUB FOR TH110615) (SUB FOR AT130697) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
