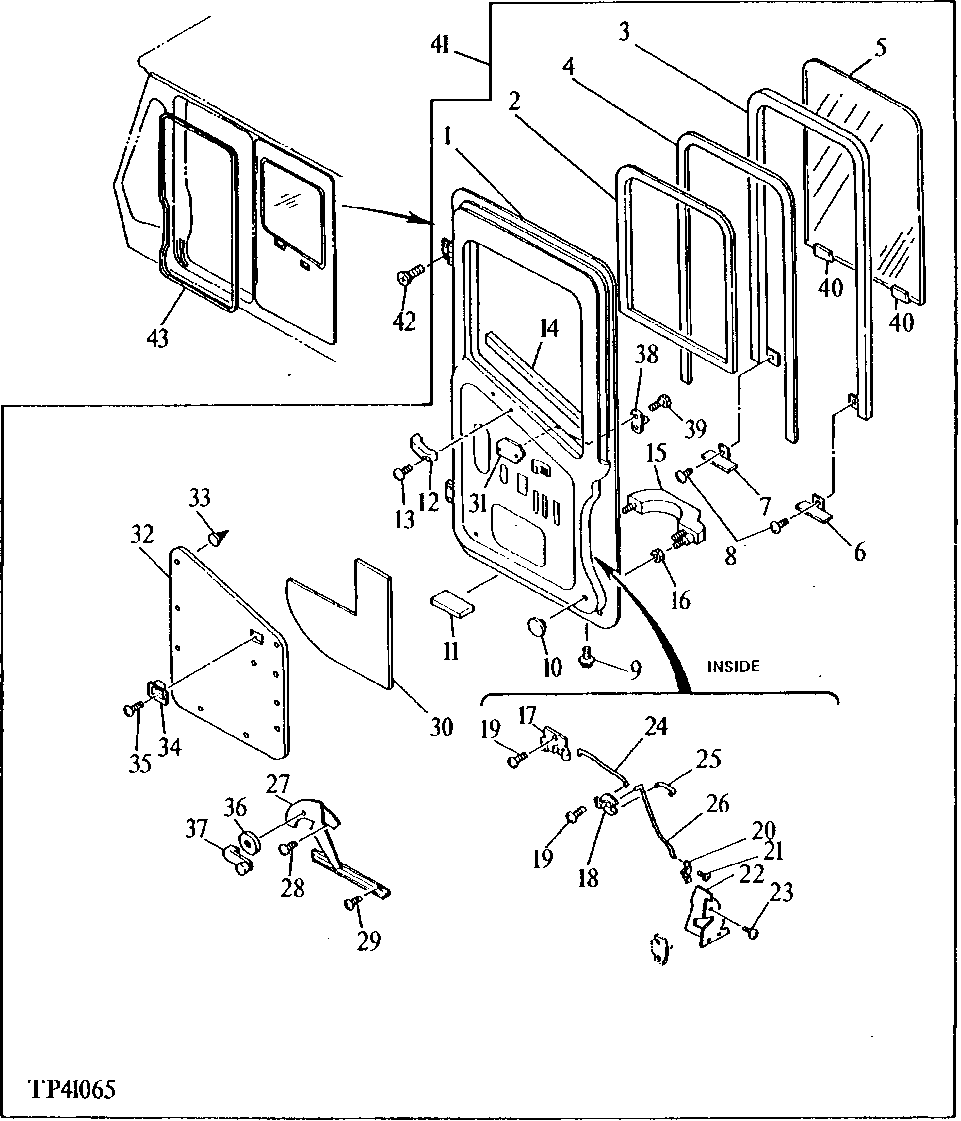

Запчасти John Deere 0D 4 - CAB DOOR 1810 - OPERATORS STATION 18

1

DOOR

(SUB TH110731)

1шт.

2

4217871

ISOLATOR

(SUB FOR TH110733) (RUBBER TRIM)

1шт.

3

4141639

FRAME

(SUB FOR TH106542) (SASH)

1шт.

4

WEATHERSTRIP

( 4141640 NO LONGER AVAILABLE) (SUB FOR TH106543)

1шт.

5

TH106544

WINDOWPANE

(ROLL DOWN)

1шт.

6

4141642

ANGLE

(SUB FOR TH106545)

1шт.

7

4141643

ANGLE

(SUB FOR TH106546)

1шт.

8

21M7246

SCREW

M6 X 16, (SUB FOR TH106547 OR 4141734)

ARшт.

12M7006

LOCK WASHER

6 MM

ARшт.

9

21M7246

SCREW

M6 X 16, (SUB FOR TH106548 OR 4141740)

4шт.

12M7006

LOCK WASHER

6 MM

4шт.

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

10

4217873

COVER

(SUB FOR TH110734)

4шт.

11

4141646

ISOLATOR

(SUB FOR TH106551)

1шт.

12

4204579

HANDLE

(SUB FOR TH110735) (SUB FOR TH108661)

1шт.

13

21M7246

SCREW

M6 X 16, (SUB FOR TH106547 OR 4141734)

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

14

4351147

MOLDING

(SUB FOR TH110736)

1шт.

15

4362134

HANDLE

(SUB FOR TH110737, 4217876) (OUTER)

1шт.

16

4217877

NUT

(SUB FOR TH110738)

2шт.

17

4217878

LATCH

(SUB FOR TH110739)

1шт.

18

4217879

LEVER

(SUB FOR TH110740)

1шт.

19

R53976

SCREW

M6 X 15, (SUB FOR TH110741 OR 4217880)

4шт.

12M7006

LOCK WASHER

6 MM

4шт.

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

20

4217881

LEVER

(SUB FOR TH110742)

1шт.

21

21M7246

SCREW

M6 X 16, (SUB FOR TH106547 OR 4141734)

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

22

4217882

LOCK

(SUB FOR TH110743)

1шт.

23

19M9198

SCREW

M6 X 12, (SUB FOR TH111055 OR 4224502)

3шт.

12H322

LOCK WASHER

1/4"

3шт.

24

4217883

ROD

(SUB FOR TH110744)

1шт.

25

4217884

ROD

(SUB FOR TH110745)

1шт.

26

4217885

ROD

(SUB FOR TH110746)

1шт.

27

LATCH

(SUB FOR TH106567) ( 4141660 NO LONGER AVAILABLE FOR SERVICE)

1шт.

28

4189968

SCREW

(SUB FOR TH106530) (SUB FOR TH107996)

4шт.

29

4189968

SCREW

(SUB FOR TH106530) (SUB FOR TH107996)

2шт.

30

4217886

SEAL

(SUB FOR TH110747)

1шт.

31

4217887

SEAL

(SUB FOR TH110748)

1шт.

32

4217888

ACOUSTICAL UPHOLSTERY

(SUB FOR TH110749)

1шт.

33

4320147

CLIP

(SUB FOR TH107997 OR 4141666)

10шт.

34

4217889

COVER

(SUB FOR TH110750)

1шт.

35

21M7249

SCREW

M5 X 10

1шт.

36

4141662

WASHER

(SUB FOR TH110458)

1шт.

37

4217890

HANDLE

(SUB FOR TH110751) (ROLL DOWN WINDOW)

1шт.

38

4233074

STRIKER

(SUB FOR TH110752)

1шт.

39

19M7077

CAP SCREW

M6 X 20, (SUB FOR TH110753 OR 4233075)

2шт.

12M7006

LOCK WASHER

6 MM

2шт.

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

40

4251700

BRACKET

(SUB FOR TH112103)

2шт.

41

4217869

DOOR

(SUB FOR TH110731)

1шт.

42

4141733

SCREW WITH WASHER

(SUB FOR TH106576)

6шт.

43

4182568

WEATHERSTRIP

(SUB FOR TH106577)

1шт.

44

4369154

CAB

(SUB FOR TH110615) (NOT ILLUSTRATED) (CONTAINS ALL PARTS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (USE IF AVAILABLE)

1шт.

4369154

CAB

(SUB FOR TH110615) (SUB FOR AT130697) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.
