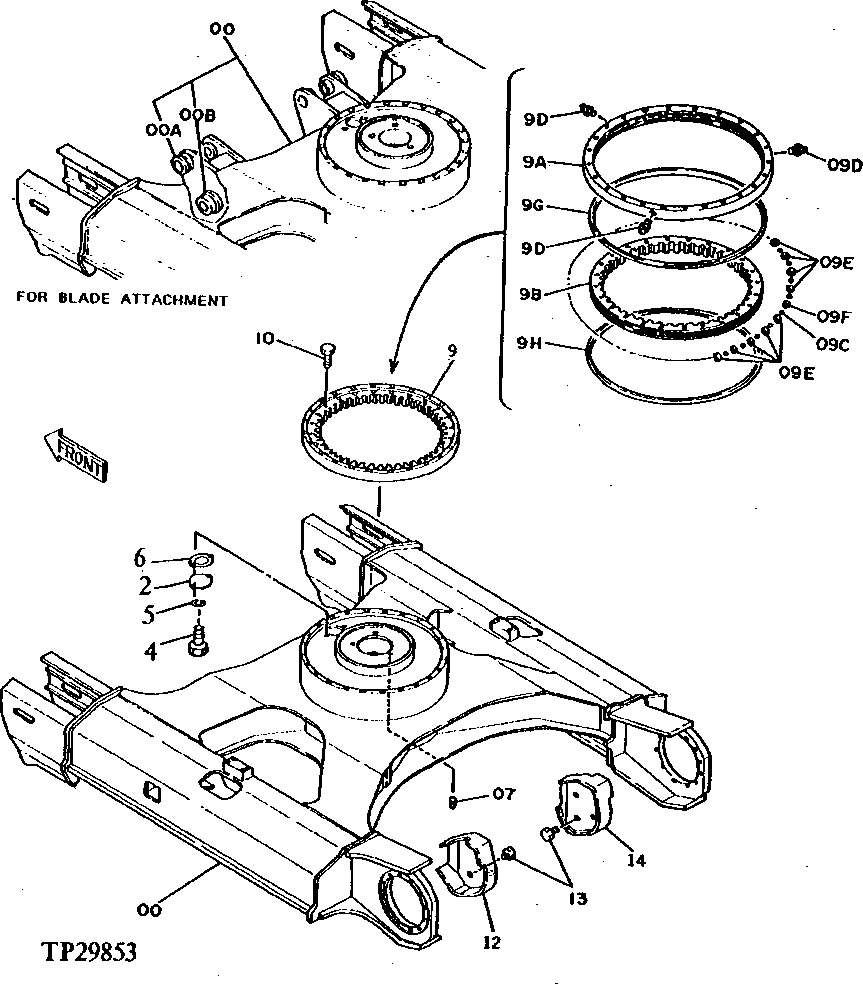

Запчасти John Deere 0D 4 - TRACK FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

0

FRAME

FOR STANDARD ( TH110788 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

FRAME

FOR BLADE ATTACHMENT ( TH110787 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

0A

4081613

SPACER

(SUB FOR TH105957) FOR BLADE ATTACHMENT

2шт.

0B

4081614

SPACER

(SUB FOR TH105958) FOR BLADE ATTACHMENT

2шт.

2

4128863

PLATE

(SUB FOR TH102264)

1шт.

4

19M8324

CAP SCREW

M10 X 16

2шт.

5

12M7066

LOCK WASHER

10 MM

2шт.

6

4272297

GASKET

(SUB FOR 4211149 AND TH110612)

1шт.

7

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

9

SWING BEARING

(A) (ASSY) (INCLUDES KEYS 9 THROUGH 9H) ( TH110519 NLA)

1шт.

SWING BEARING

(A) REMAN (ASSY) (INCLUDES KEYS 9 THROUGH 9H) ( AT190764 OR 4193433EX NLA)

1шт.

9A

BEARING RACE

(OUTER) (SUB AT190764)

1шт.

9B

BEARING RACE

(INNER) (SUB AT190764)

1шт.

9C

4138028

BALL

(SUB FOR TH110757) (SUB FOR TH106031) (1=66 PIECES) (DISCARD EXTRA BALLS)

1шт.

9D

JD7769

LUBRICATION FITTING

(SUB FOR TH100364)

3шт.

9E

4218312

SUPPORT

(SUB FOR TH110758) (16MM LONG ON OUTSIDE DIAMETER)

42шт.

9F

4218313

SUPPORT

(SUB FOR TH110759) (19MM LONG ON OUTSIDE DIAMETER)

24шт.

9G

T203958

SEAL

(A) (SUB FOR T191211) (SUB FOR TH108166 OR AT131732, THIS APPLICATION) (ALSO ORDER TY21517 AND AT66866) (SUB FOR AT131484 OR AT128483 OR AT131732, 4199645) (SUB FOR 4199645) (SUB FOR AT131732)

1шт.

TY21517

ADHESIVE

(NOT ILLUSTRATED)

ARшт.

AT66866

FLUID

(NOT ILLUSTRATED)

ARшт.

9H

T203958

SEAL

(A) (SUB FOR T191211) (SUB FOR TH108166 OR AT131732, THIS APPLICATION) (ALSO ORDER TY21517 AND AT66866) (SUB FOR AT131484 OR AT128483 OR AT131732) (SUB FOR 4199645)

1шт.

TY21517

ADHESIVE

(NOT ILLUSTRATED)

ARшт.

AT66866

FLUID

(NOT ILLUSTRATED)

ARшт.

10

19M8485

CAP SCREW

M16 X 90

24шт.

12

7019691

COVER

(SUB FOR TH110926, THIS APPLICATION) (SUB FOR TH111671) (LEFT)

1шт.

13

19M8231

CAP SCREW

M12 X 16, (SUB FOR TH100522)

6шт.

14

7019690

COVER

(RIGHT) (SUB FOR TH110926, THIS APPLICATION) (SUB FOR TH111672)

1шт.
