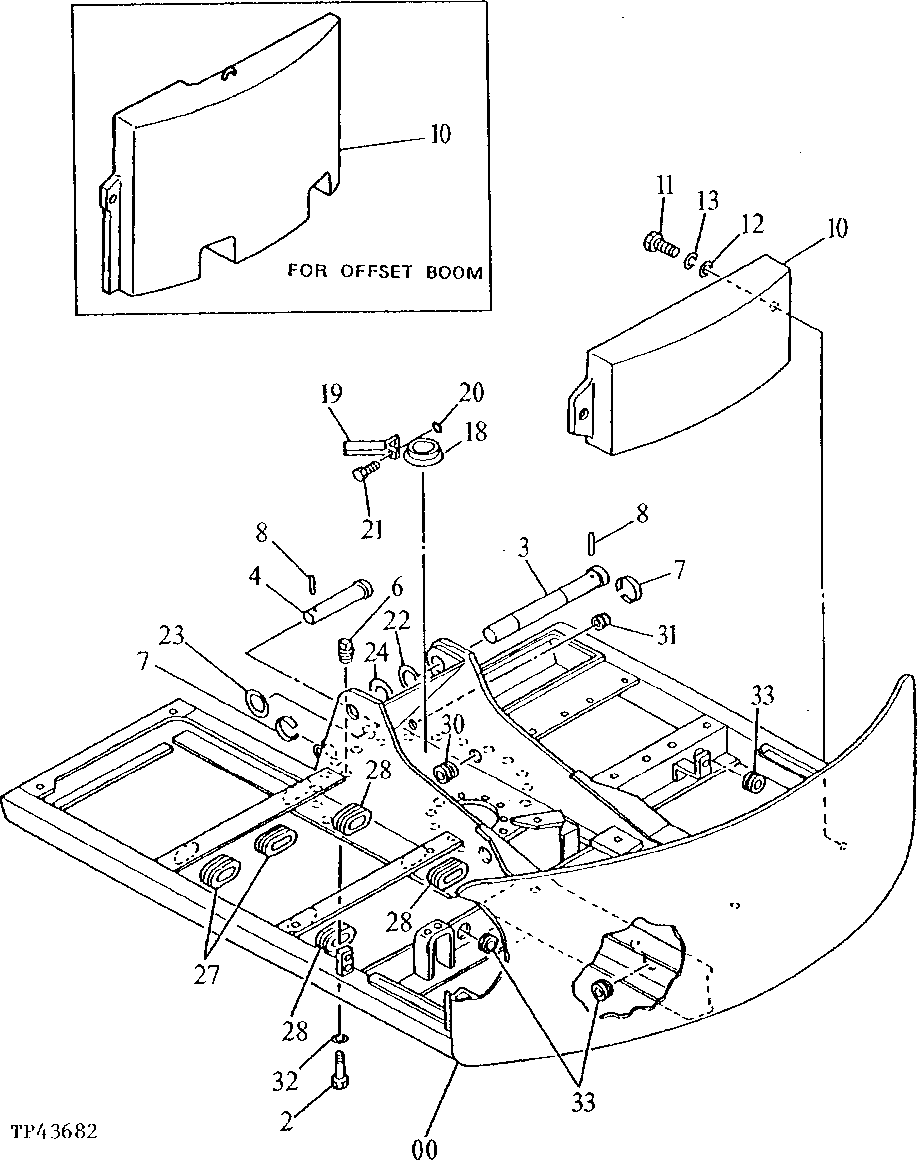

Запчасти John Deere 0D 2 - MAIN FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

0

MAIN FRAME

( TH110786 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

2

19M8350

CAP SCREW

M16 X 85, (SUB FOR T107814)

22шт.

3

3043504

PIN FASTENER

(SUB FOR TH110413)

1шт.

4

3037130

PIN FASTENER

(SUB FOR TH110414)

1шт.

6

J75214

FITTING PLUG

(SUB FOR TH105686)

1шт.

7

4065688

RETAINER

(SUB FOR TH100624)

2шт.

8

4065689

PIN FASTENER

(SUB FOR TH100625)

2шт.

10

COUNTERWEIGHT

(FOR STANDARD BOOM) ( TH106739 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

COUNTERWEIGHT

(FOR OFFSET BOOM) ( TH110934 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

11

19M8970

CAP SCREW

M18 X 120, (SUB FOR J931804)

2шт.

12

4140776

STRAP

(SUB FOR TH106404)

2шт.

13

12H236

LOCK WASHER

3/4"

2шт.

18

4195033

COVER

(SUB FOR TH110533)

1шт.

19

8082204

BRACKET

(SUB FOR 8036895) (ALSO ORDER (2) 19M7403 AND 24M7047)

1шт.

20

4086891

WASHER

13 X 26 X 3.200 MM (0.512" X 1.024" X 0.126") (SUB FOR TH104166)

2шт.

21

19M8017

CAP SCREW

M12 X 20, (WITH BLADE)

2шт.

19M8011

CAP SCREW

M12 X 30, (WITH BLADE)

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067) (WITH BLADE)

2шт.

19M8017

CAP SCREW

M12 X 20, (WITHOUT BLADE)

2шт.

19M8011

CAP SCREW

M12 X 30, (WITHOUT BLADE)

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067) (WITHOUT BLADE)

2шт.

22

4224057

WASHER

61 X 130 X 1 MM (2.402" X 5.118" X 0.039") (SUB FOR TH108045) (SUB FOR TH112247)

3шт.

23

4180196

WASHER

(SUB FOR TH108046)

ARшт.

24

4224058

WASHER

61 X 130 X 2 MM (2.402" X 5.118" X 0.079") (SUB FOR TH112248)

1шт.

27

4213559

GROMMET

(SUB FOR TH110627)

2шт.

28

4213560

BUSHING

(SUB FOR TH110628)

3шт.

30

4200176

GROMMET

(SUB FOR TH109397)

1шт.

31

4196825

GROMMET

(SUB FOR TH110544)

1шт.

32

4114405

WASHER

17 X 32 X 4.500 MM (0.669" X 1.260" X 0.177") (SUB FOR TH110675) (SUB FOR TH101105)

22шт.

33

4201995

GROMMET

(SUB FOR TH109396)

3шт.
