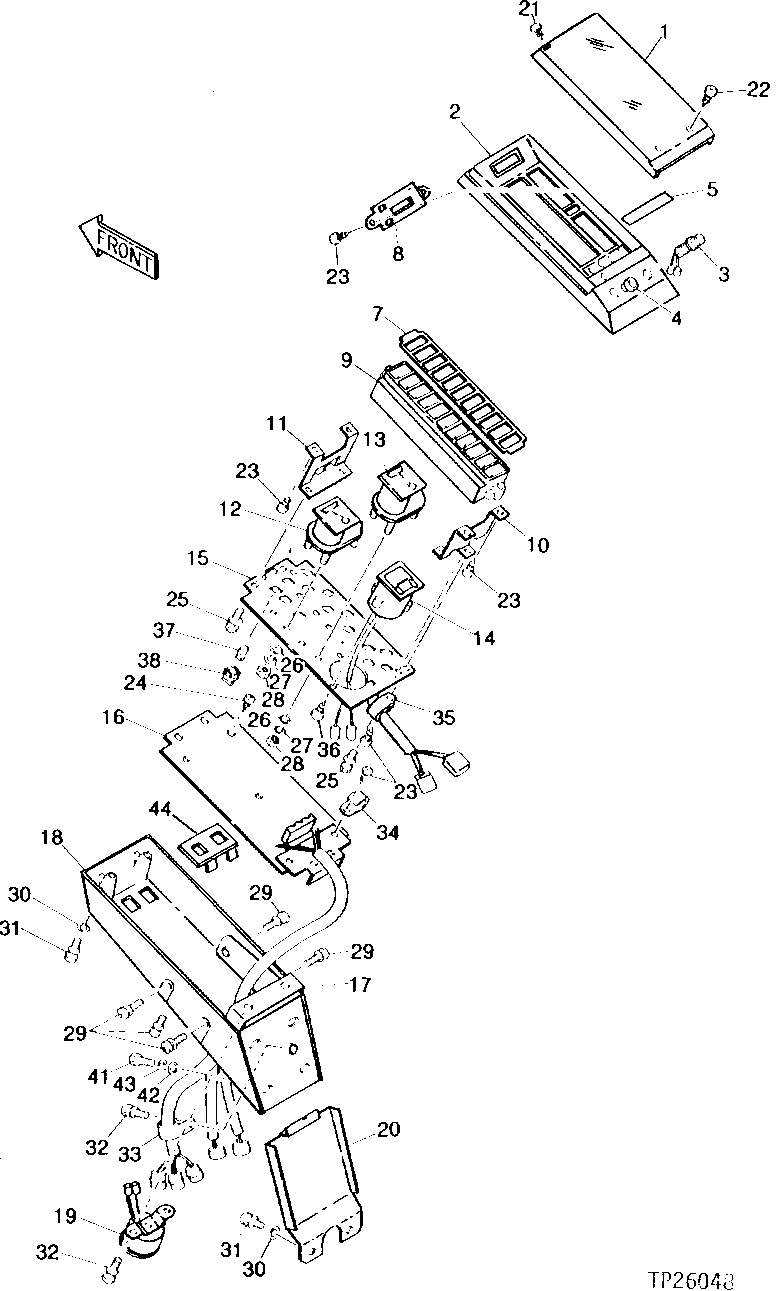

Запчасти John Deere 0D 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEM 16

1

4208843

COVER

(SUB FOR TH108514)

1шт.

2

4208844

HOUSING

(SUB FOR TH108515)

1шт.

3

4208845

SWITCH

(SUB FOR TH108516) (BUZZER CANCEL)

1шт.

4

4210973

CAP

(SUB FOR T114522) LENS

1шт.

5

LABEL

( TH110604 NOT AVAILABLE FOR SERVICE)

1шт.

7

4210976

LENS

(SUB FOR TH110606)

1шт.

8

4210977

LABEL

(SUB FOR TH110607)

1шт.

9

4208851

HOUSING

(SUB FOR TH108522)

1шт.

10

4208852

BRACKET

(SUB FOR TH108523)

1шт.

11

BRACKET

(SUB FOR TH108524) ( 4208853 NSEP)

1шт.

12

4208854

TEMPERATURE GAUGE

(SUB FOR TH108525)

1шт.

13

4208855

GAUGE

(SUB FOR TH108526) (FUEL)

1шт.

14

4208856

HOUR METER

(SUB FOR TH108527)

1шт.

15

4210975

CIRCUIT BOARD

(SUB FOR TH110605)

1шт.

16

4210978

CIRCUIT BOARD

(SUB FOR TH110608)

1шт.

17

4208859

BRACKET

(SUB FOR TH108530)

1шт.

18

4208860

HOUSING

(SUB FOR TH108531)

1шт.

19

4208861

AUDIBLE WARNING ALARM

(SUB FOR TH108532)

1шт.

20

4208862

COVER

(SUB FOR TH108533)

1шт.

21

4208864

SCREW

(SUB FOR TH108534) (SUB FOR TH108535)

2шт.

22

4208864

SCREW

(SUB FOR TH108535)

2шт.

23

37H95

SCREW

(SUB FOR TH108536)

10шт.

24

37M7067

SCREW

(SUB FOR TH108537)

2шт.

25

21M7395

SCREW

M4 X 8, (SUB FOR 4208867, ALONG WITH 24M7117 AND 12H315)

5шт.

24M7117

WASHER

4.300 X 9 X 0.800 MM

5шт.

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

5шт.

26

4208868

SHIM

0.460 MM (0.018") (SUB FOR TH108539)

8шт.

27

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

8шт.

28

14M7030

NUT

M3

8шт.

29

21M7305

SCREW

M6 X 12, (SUB FOR 4208870, ALONG WITH 24M7054 AND 12M7006)

6шт.

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.

12M7006

LOCK WASHER

6 MM, (SUB FOR 12M7099)

6шт.

30

24M7117

WASHER

4.300 X 9 X 0.800 MM, (SUB FOR TH108541)

6шт.

31

21M7396

SCREW

M4 X 10, (SUB FOR 4208872, ALONG WITH 12H315)

6шт.

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

6шт.

32

21M7347

SCREW

M5 X 14, (SUB FOR 4208873, ALONG WITH 24M7027 AND 12M7064)

3шт.

24M7027

WASHER

5.300 X 10 X 1 MM

3шт.

12M7064

LOCK WASHER

5 MM

3шт.

33

4208874

CLIP

(SUB FOR TH108544)

1шт.

34

4213161

CLIP

(SUB FOR T114524)

2шт.

35

4210979

CLIP

(SUB FOR TH110609)

1шт.

36

37M7181

SCREW

(SUB FOR TH108547)

3шт.

37

4208878

BULB

(SUB FOR TH108548 OR (14) T67008) (SUB FOR TH108548)

14шт.

38

4208879

SOCKET

(SUB FOR TH108549)

14шт.

41

19M7881

SCREW

M8 X 20

4шт.

42

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

43

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

44

4252141

COVER

(SUB FOR AT128332)

1шт.
