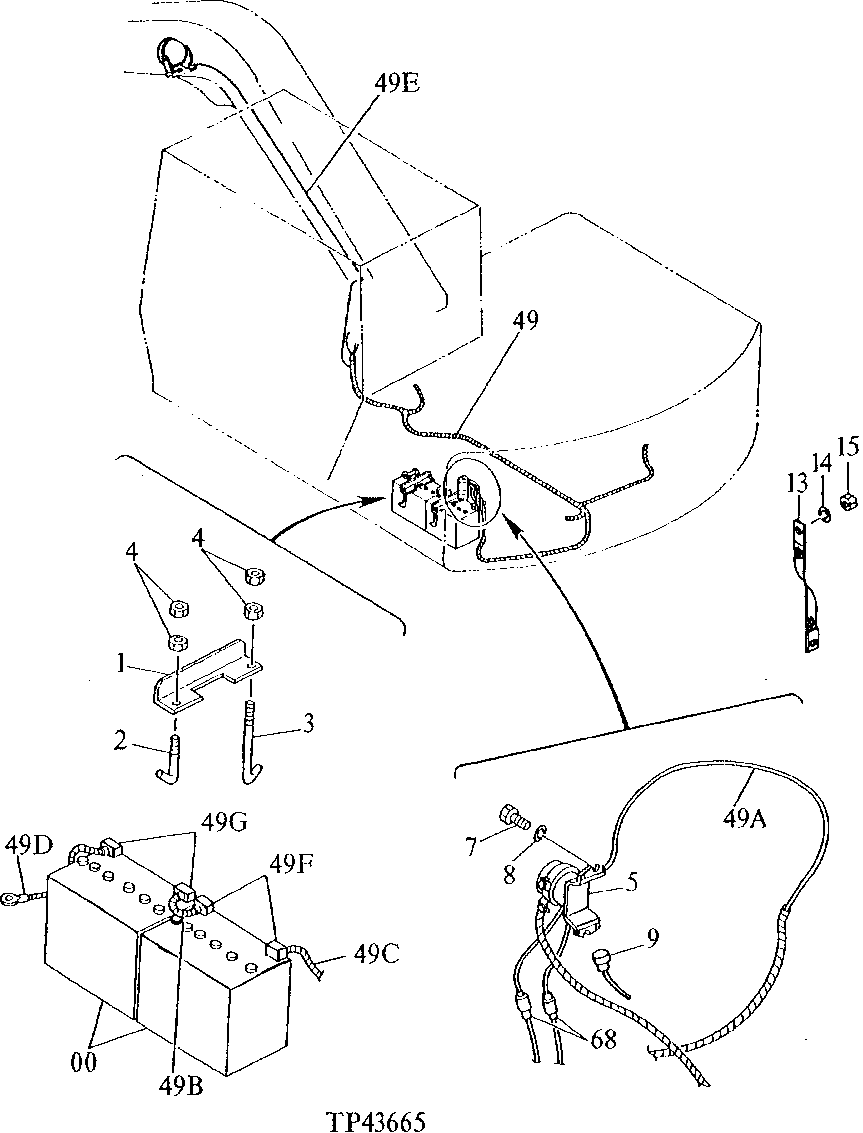

Запчасти John Deere 0D 8 - ELECTRIC PARTS 1674 - ELECTRICAL SYSTEM 16

0

TY21764

DRY CHARGED BATTERY

(SUB FOR TY6113)

2шт.

1

4195578

BRACKET

(SUB FOR TH110536)

2шт.

2

Z40946

HOOK BOLT

(SUB FOR TH110537)

2шт.

3

H158292

HOOK BOLT

(SUB FOR TH105987)

2шт.

4

14M7273

NUT

M8

8шт.

5

4031771

RELAY

(SUB FOR TH104069) BATTERY

1шт.

7

19M7376

CAP SCREW

M8 X 22

2шт.

8

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

9

4240648

WIRING LEAD

(SUB FOR AT130831) (TWO POLE MALE)

1шт.

13

AT47069

GROUND CABLE

406.400 MM (16") (SUB FOR AT154993) (GROUND STRAP) (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.

14

12M7066

LOCK WASHER

10 MM

1шт.

15

14M7274

NUT

M10

1шт.

49

4215582

WIRING HARNESS

(SUB FOR TH110646) (INCLUDES ITEMS 49A THROUGH 49G)

1шт.

49A

4246619

WIRING HARNESS

(SUB FOR TH112020) (BATTERY RELAY TO STARTER)

1шт.

49B

4246621

WIRING HARNESS

(SUB FOR TH112021) (POSITIVE TO NEGATIVE POSTS ON BATTERY)

1шт.

49C

4246620

WIRING HARNESS

(SUB FOR TH112022) (POSITIVE POST TO BATTERY RELAY)

1шт.

49D

4246622

WIRING HARNESS

(SUB FOR TH112023) (NEGATIVE POST TO GROUND)

1шт.

49E

4246618

WIRING HARNESS

(SUB FOR TH112024) (TO BOOM LIGHT)

1шт.

49F

4256240

CAP

(SUB FOR TH112250)

2шт.

49G

4256241

CAP

(SUB FOR TH112251)

2шт.

68

4214850

LINK

(SUB FOR TH110638) (FUSIBLE)

1шт.
