Запчасти John Deere 0 1 - ENGINE THERMOSTAT AND HOUSING 418 - ENGINE 4

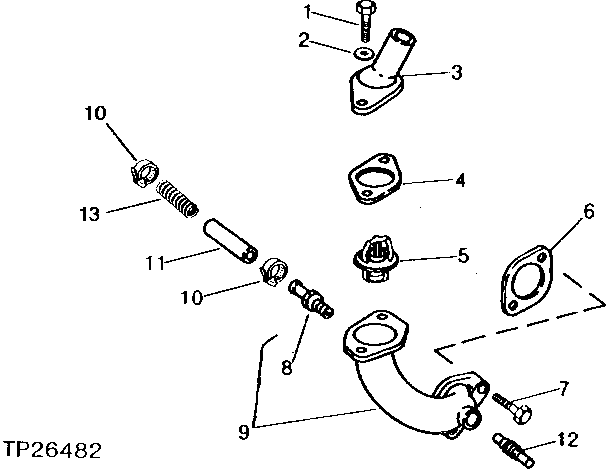

Схема запчастей John Deere 0 - 1 - ENGINE THERMOSTAT AND HOUSING 418 - ENGINE 4

Артикул

Название

Примечание

Количество

1

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

2

24M7096

WASHER

0.413" X 0.709" X 0.063"

2шт.

3

T20317

COVER

1шт.

4

T20215

GASKET

1шт.

5

RE33705

THERMOSTAT

82C (180°F) (SUB FOR AT22961)

1шт.

6

T20219

GASKET

1шт.

7

19H1726

CAP SCREW

3/8" X 2-1/4"

2шт.

12H304

LOCK WASHER

3/8"

2шт.

8

T19651

HOSE FITTING

1шт.

9

AR73097

HOUSING

(MARKED R60256)

1шт.

10

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

2шт.

11

T12815

HOSE

1шт.

12

AT105546

SWITCH

(ENGINE TEMPERATURE WARNING) (SUB FOR AH76125)

1шт.

13

T561T

SPRING

1шт.

Выбрано товаров: 14
