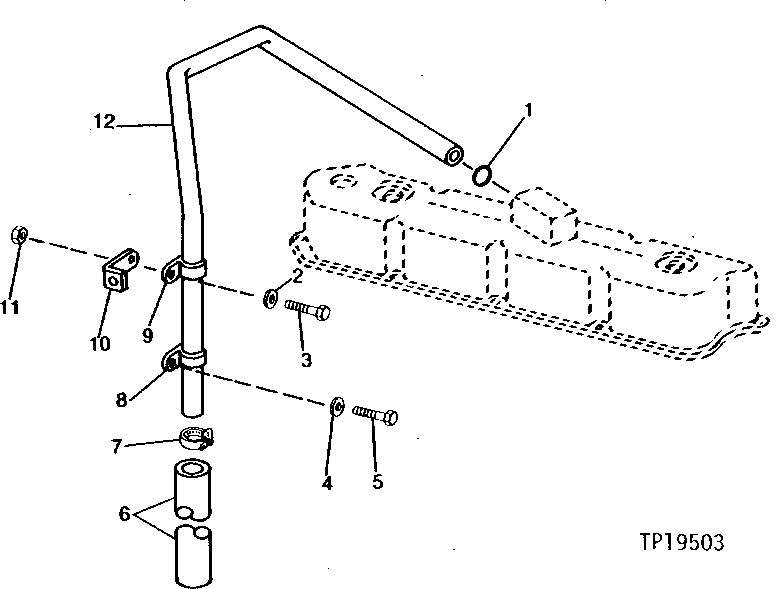

Запчасти John Deere 0 1 - ENGINE VENTILATOR TUBE 408 - ENGINE 4

1

R56463

O-RING

1шт.

2

24H1685

WASHER

11/32" X 47/64" X 0.083"

1шт.

3

19H2284

CAP SCREW

3/8" X 7/8"

1шт.

4

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

5

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

6

R100540

HOSE

(SUB FOR R84484) DO NOT REPLACE

NAшт.

7

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650) DO NOT REPLACE

NAшт.

8

T24432

CLAMP

1шт.

9

R40791

CLAMP

2шт.

10

R73975

BRACKET

1шт.

11

12H304

LOCK WASHER

3/8"

1шт.

12

14H1076

NUT

3/8"

1шт.

13

R109941

TUBE

(SUB FOR R59047)

1шт.
