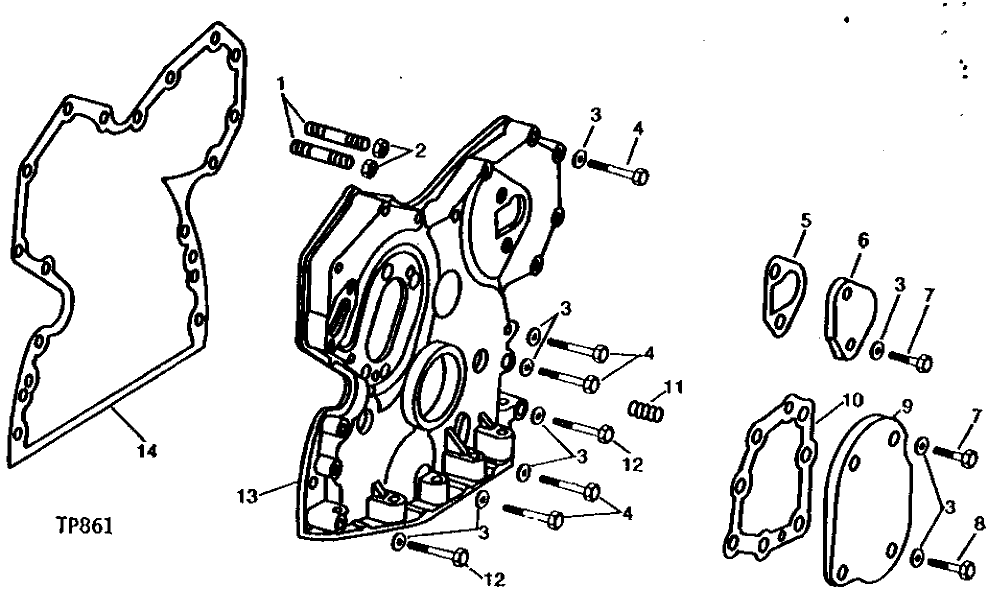

Запчасти John Deere 0 5 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR R122226)

2шт.

2

14H1076

NUT

3/8"

2шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

ARшт.

4

19H2549

CAP SCREW

3/8" X 1-7/8"

10шт.

5

R78366

GASKET

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

19H2284

CAP SCREW

3/8" X 7/8"

3шт.

R124277

CAP SCREW

(USE WITH R126041) (SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

9

T20272

COVER

1шт.

10

T20273

GASKET

1шт.

11

15H275

PIPE PLUG

1/4"

1шт.

12

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

13

AR58196

COVER

(MARKED R52880) (ALSO ORDER T20272, T20273, 15H275, 19H1726, (3) 19H2284 AND (4) 24H1304) (SUB RE39252)

1шт.

14

T20155

GASKET

1шт.
