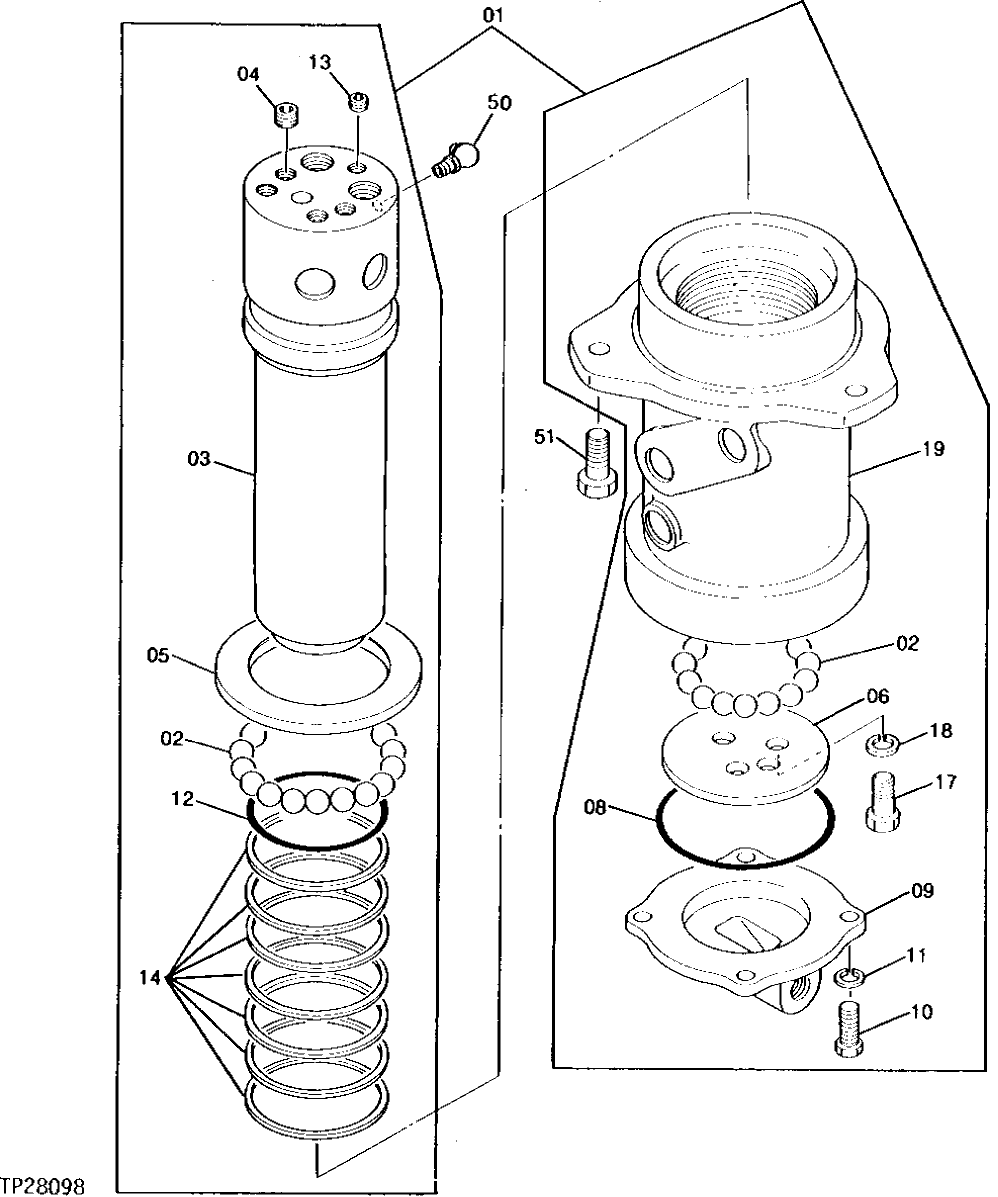

Запчасти John Deere 0 6 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

1

9125269

MANIFOLD

(SUB FOR TH106759)

1шт.

2

972658

BALL

(SUB FOR T38788)

32шт.

3

SPINDLE

(SUB TH106759)

1шт.

4

94-2012

FITTING PLUG

(SUB FOR TH100653)

4шт.

5

4140771

COVER

(SUB FOR TH106047)

1шт.

6

4158490

THRUST WASHER

(SUB FOR TH106762)

1шт.

8

T110443

O-RING

109.400 X 3.100 MM (4.307" X 0.122") (SUB FOR TH100650)

1шт.

9

2017034

COVER

(SUB FOR TH100651)

1шт.

10

19M7662

CAP SCREW

M10 X 30

4шт.

11

12M7066

LOCK WASHER

10 MM (0.394") (SUB FOR TH100417)

4шт.

12

T204374

O-RING

(SUB FOR TH106060, TH105932 AND AT264385)

1шт.

13

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

14

AT154162

SEAL

(SUB FOR TH106084)

7шт.

17

19M7872

CAP SCREW

M12 X 25

3шт.

18

12H301

LOCK WASHER

12.700 MM (1/2")

3шт.

19

HOUSING

(SUB TH106759)

1шт.

50

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

51

19M7662

CAP SCREW

M10 X 30

3шт.
