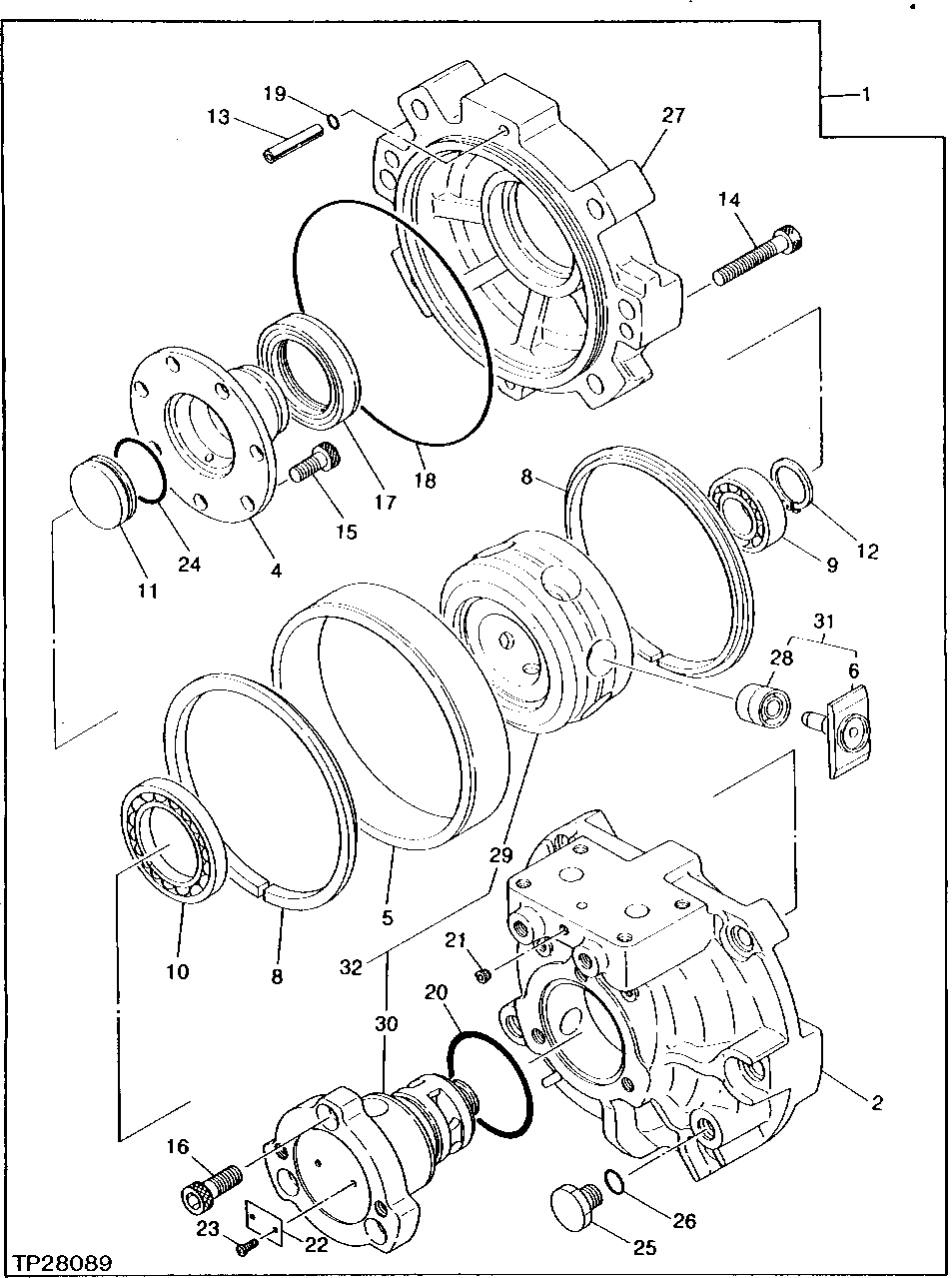

Запчасти John Deere 0 2 - PROPEL MOTOR 250 - AXLES AND SUSPENSION SYSTEMS 2

1

9053839

MOTOR

(SUB FOR TH106255) (SUB FOR TH111709) (MOTOR)

1шт.

2

HOUSING

( TH111861 NO LONGER AVAILABLE) (SUB TH111709)

1шт.

4

CAP

( TH105890 NO LONGER AVAILABLE)

1шт.

5

RING

( TH111861 NO LONGER AVAILABLE)

1шт.

6

PISTON

(SUB FOR TH105883) ( TH110398 NO LONGER AVAILABLE FOR SERVICE)

7шт.

8

RING

( TH106000 NO LONGER AVAILABLE)

2шт.

9

JD7681

BALL BEARING

(SUB FOR TH106274)

1шт.

10

4092967

BALL BEARING

(SUB FOR TH105975)

1шт.

11

CAP

( TH105968 NO LONGER AVAILABLE)

1шт.

12

40M7084

SNAP RING

(SUB FOR TH106272)

1шт.

13

34M7049

SPRING PIN

8 X 50 MM, (SUB FOR TH106836) (SUB FOR 34M7048)

2шт.

14

19M8338

SCREW

M10 X 40

2шт.

15

M341022

SCREW

(SUB FOR TH105695)

7шт.

16

19M8168

SCREW

M12 X 25

3шт.

17

0234114

SEAL

(SUB FOR TH105989)

1шт.

18

4092970

O-RING

(SUB FOR TH105976)

1шт.

19

M800650

PACKING

(SUB FOR TH100716)

1шт.

20

TH105684

O-RING

1шт.

21

94-2010

FITTING PLUG

(SUB FOR TH100689)

3шт.

22

LABEL

(NAME PLATE) (NOT AVAILABLE)

1шт.

23

37H99

SCREW

0.100" X 1/4", (SUB FOR TH100069)

2шт.

24

CH14701

O-RING

(SUB FOR TH101914)

1шт.

25

4074727

DRAIN PLUG

(SUB FOR TH100027)

1шт.

26

CH11562

O-RING

(SUB FOR TH102676)

4шт.

27

HOUSING

( TH106837 NO LONGER AVAILABLE) (SUB TH111709)

1шт.

28

BALL JOINT

(SUB FOR TH106279) ( TH110991 NO LONGER AVAILABLE FOR SERVICE)

7шт.

29

ROTOR

(SUB TH106838)

1шт.

30

VALVE

(SUB TH106838)

1шт.

31

9115792

PISTON

(SUB FOR TH112107) (SUB FOR AT131485)

1шт.

32

VALVE

( TH106838 NO LONGER AVAILABLE)

1шт.
