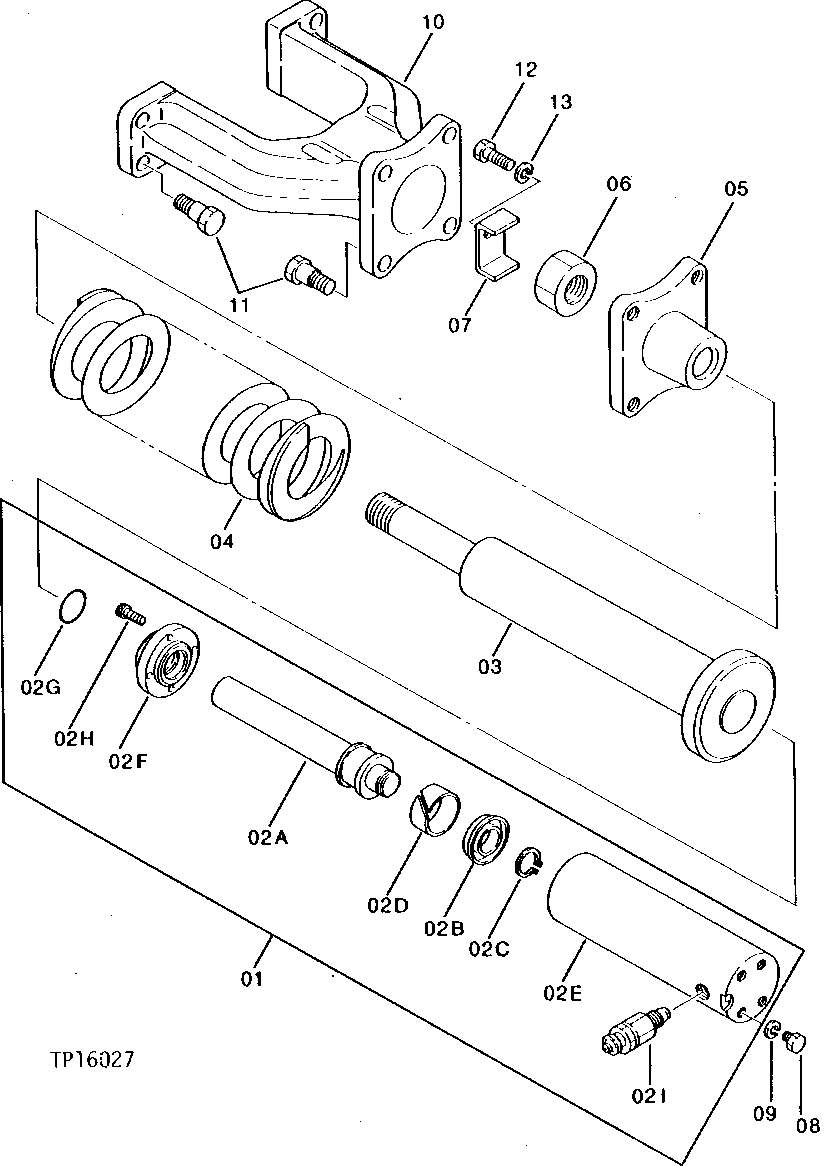

Запчасти John Deere 0 2 - TRACK ADJUSTER 130 - TRACKS 1

1

ADJUSTER

( TH106251 NO LONGER AVAILABLE)

1шт.

2A

3024800

ROD

(SUB FOR TH105898)

1шт.

2B

4114003

PACKING

(SUB FOR TH106001)

1шт.

2C

40M7195

SNAP RING

(SUB FOR 40M1828)

1шт.

2D

4106878

WEAR RING

(SUB FOR TH105996)

1шт.

2E

3024801

HYDRAULIC CYLINDER

(SUB FOR TH105899)

1шт.

2F

4136645

FLANGE

(SUB FOR TH106027)

1шт.

2G

A810030

O-RING

(SUB FOR U46167)

1шт.

2H

19M8627

SCREW

M6 X 20, (SUB FOR TH105693)

4шт.

2I

4341596

FLOW CONTROL HYD. VALVE

(SUB FOR AT128468 AND TH108069) (SUB FOR AT179102)

1шт.

3

3024798

ROD

(SUB FOR TH105896)

1шт.

4

3024797

SPRING

(SUB FOR TH105895)

1шт.

5

3024799

HOLDER

(SUB FOR TH105897)

1шт.

6

M513024

NUT

(SUB FOR TH105700)

1шт.

7

4136646

LOCK

(SUB FOR TH106028)

1шт.

8

19M7358

CAP SCREW

M10 X 40

4шт.

9

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

10

1006640

YOKE

(SUB FOR TH105866)

1шт.

11

19M6332

CAP SCREW

M14 X 35, (SUB FOR TH101873)

8шт.

12

19M7662

CAP SCREW

M10 X 30, (SUB FOR TH105687)

1шт.

13

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

1шт.
