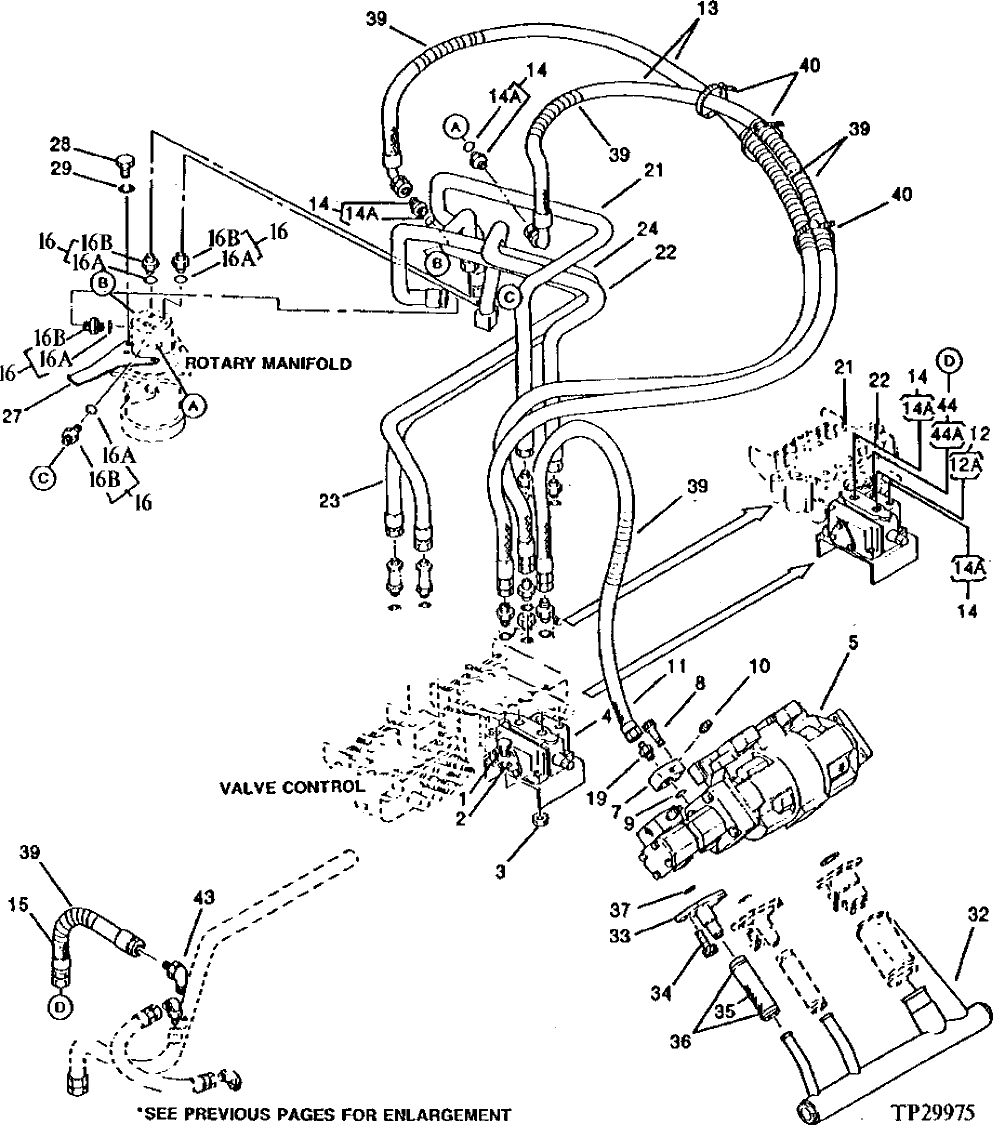

Запчасти John Deere 0 6 - MAIN HYDRAULIC LINES AND HOSES 3460 - GRADING DEVICE 34

1

19M7662

CAP SCREW

M10 X 30

3шт.

2

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

3шт.

3

14M7274

NUT

M10

3шт.

4

4169915

HYD ACTUATED CONTROL VALVE

(SUB FOR TH106091)

1шт.

5

HYDRAULIC PUMP

( TH106102 NO LONGER AVAILABLE)

1шт.

7

3033772

FLANGE FITTING

(SUB FOR TH105925)

1шт.

8

M341045

SCREW

(SUB FOR TH105696)

4шт.

9

A811030

O-RING

(SUB FOR TH101300)

1шт.

10

M800462

PLUG

(SUB FOR TH101049)

1шт.

11

AT67064

HYDRAULIC HOSE - FABRICATE

9/16" X 750 MM (29-1/2") X 9/16", (SUB FOR TH106143)

1шт.

12

4200466

ADAPTER FITTING

(SUB FOR TH101064) (SUB FOR TH108320)

1шт.

12A

CH11570

O-RING

(SUB FOR TH100049)

1шт.

13

4190230

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106144)

2шт.

14

4190243

ADAPTER FITTING

(SUB FOR TH106151)

4шт.

14A

CH11570

O-RING

(SUB FOR TH100049)

1шт.

15

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101929) (SUB FOR TH106134)

1шт.

16

ADAPTER FITTING

( TH101294 NO LONGER AVAILABLE)

4шт.

16A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

16B

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303) (SUB FOR TH101294, ALONG WITH U46489)

1шт.

19

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

21

8032510

OIL LINE

(SUB FOR TH106224)

1шт.

22

8036047

OIL LINE

(SUB FOR TH106241)

1шт.

23

8032512

OIL LINE

(SUB FOR TH106226)

1шт.

24

8032511

OIL LINE

(SUB FOR TH106225)

1шт.

27

4158491

STOP

(SUB FOR TH106079)

1шт.

28

19M7872

CAP SCREW

M12 X 25

3шт.

29

12H301

LOCK WASHER

1/2"

3шт.

32

7017115

LINE

(SUB FOR TH106196)

1шт.

33

9722275

LINE

(SUB FOR TH106284)

1шт.

34

19M8447

SCREW

(SUB FOR TH100941)

4шт.

35

HOSE

(SUB FOR TH106008) ( 4120248 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 150 MM LENGTH)

1шт.

36

TY22467

CLAMP

(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

37

A811030

O-RING

(SUB FOR TH101300)

1шт.

39

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

6шт.

40

H77698

TIE BAND

(SUB FOR T44946)

3шт.

43

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

44

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006)

1шт.

44A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.
