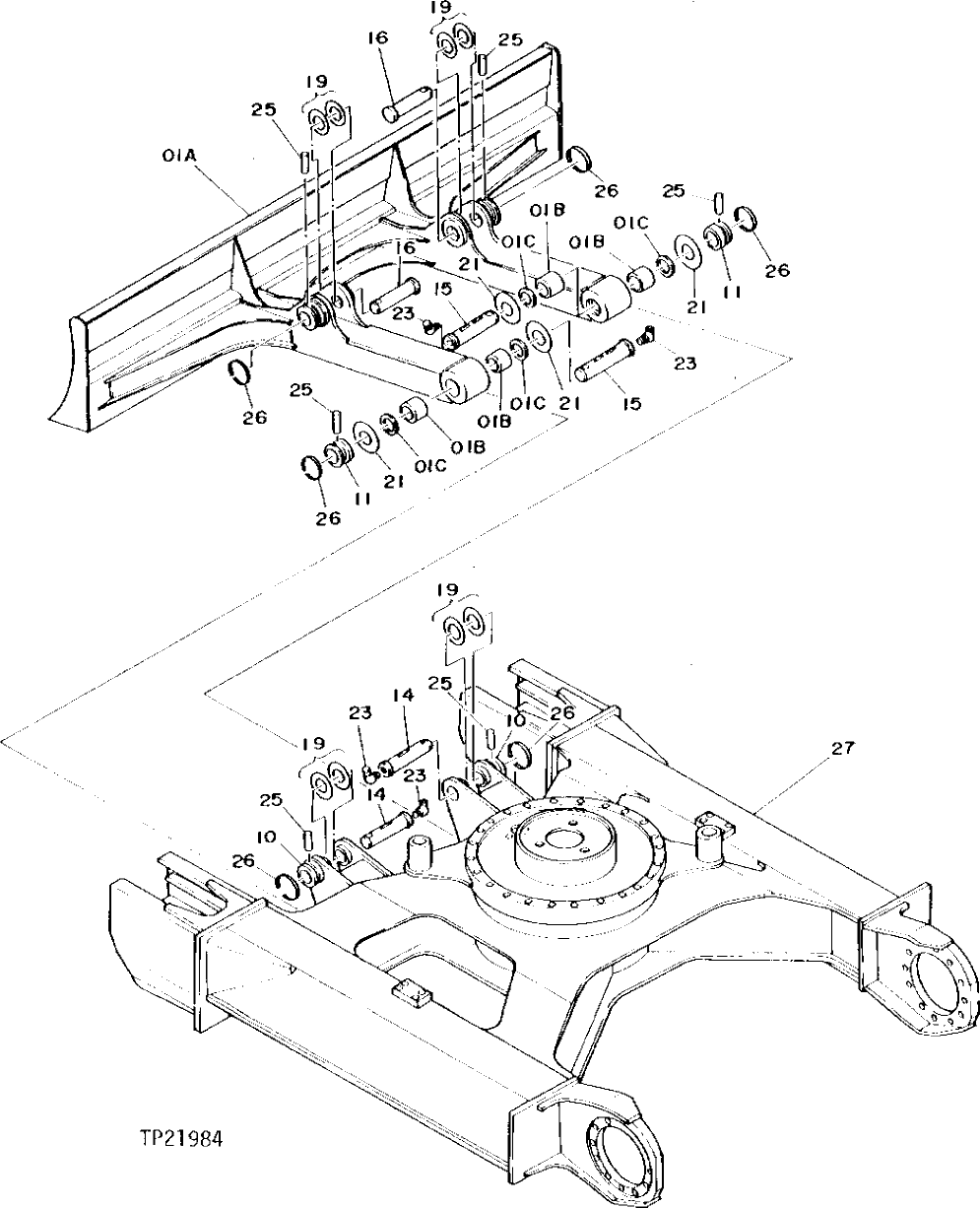

Запчасти John Deere 0 2 - BLADE 3400 - GRADING DEVICE 34

1

9077353

BLADE

(SUB FOR TH110981) (NOT ILLUSTRATED) (CONTAINS ITEMS 1A, 1B AND 1C)

1шт.

1A

BLADE

(SUB TH110981)

1шт.

1B

4128479

BUSHING

(SUB FOR TH105977) (SUB FOR TH106015)

4шт.

1C

4094087

SEAL

(SUB FOR TH105980)

4шт.

10

4081613

SPACER

(SUB FOR TH105957)

2шт.

11

4081614

SPACER

(SUB FOR TH105958)

2шт.

14

3022951

PIN FASTENER

(SUB FOR TH105891)

2шт.

15

3022952

PIN FASTENER

(SUB FOR TH105892)

2шт.

16

3015904

PIN FASTENER

(SUB FOR TH105887)

2шт.

19

4042136

WASHER

(SUB FOR TH105941)

ARшт.

21

4042135

WASHER

(SUB FOR TH105940)

ARшт.

23

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

4шт.

25

4065689

PIN FASTENER

(SUB FOR TH100625)

6шт.

26

4065688

RETAINER

(SUB FOR TH100624)

6шт.

27

FRAME

( TH106755 NO LONGER AVAILABLE)

1шт.
