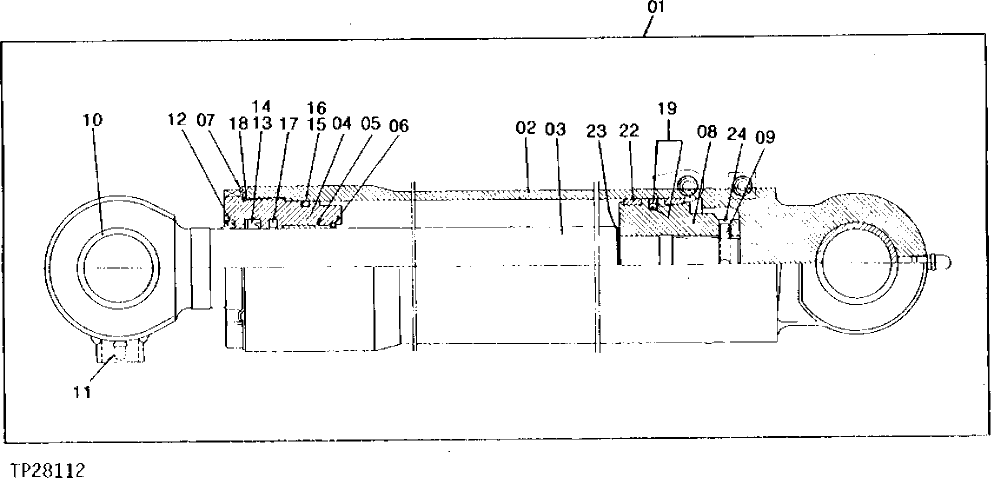

Запчасти John Deere 0 21 - OFFSET BOOM CYLINDER 3360 - EXCAVATOR 33

1

3033869

HYDRAULIC CYLINDER

(SUB FOR TH106736)

1шт.

2

0295101

HYDRAULIC CYLINDER BARREL

(SUB FOR TH106863)

1шт.

3

0295102

ROD

(SUB FOR TH106864)

1шт.

4

0257803

CYLINDER HEAD

(SUB FOR TH106865)

1шт.

5

988670

BUSHING

(SUB FOR TH106301)

1шт.

6

0225704

SNAP RING

(SUB FOR TH105772)

1шт.

7

0174517

LOCK WASHER

(K) (SUB FOR TH106866)

1шт.

8

0257807

PISTON

(SUB FOR TH106867)

1шт.

9

0225605

PIN

(SUB FOR TH105759)

1шт.

10

4265483

BUSHING

(SUB FOR TH106868) (SUB FOR AT137407)

2шт.

11

JD7781

LUBRICATION FITTING

(SUB FOR TH105707)

2шт.

12

AT264377

RING

(K) (SUB FOR TH105777)

1шт.

13

AT264378

RING

(K) (SUB FOR TH105778)

1шт.

14

AT264379

BACK-UP RING

(K) (SUB FOR TH105779)

1шт.

15

TH100156

O-RING

(K) (SUB FOR TH106869)

1шт.

16

4513525

BACK-UP RING

(K) (SUB FOR TH106870)

1шт.

17

AT264380

RING

(K) (SUB FOR TH105780)

1шт.

18

AT264320

O-RING

(K) (SUB FOR TH106871, T110448)

1шт.

19

AT264386

RING

(K) (SUB FOR TH106872, 0240915)

1шт.

22

0240916

RING

(SUB FOR TH106873)

2шт.

23

0240805

SHIM

(SUB FOR TH105801)

1шт.

24

0225606

SNAP RING

(SUB FOR TH105760)

1шт.
