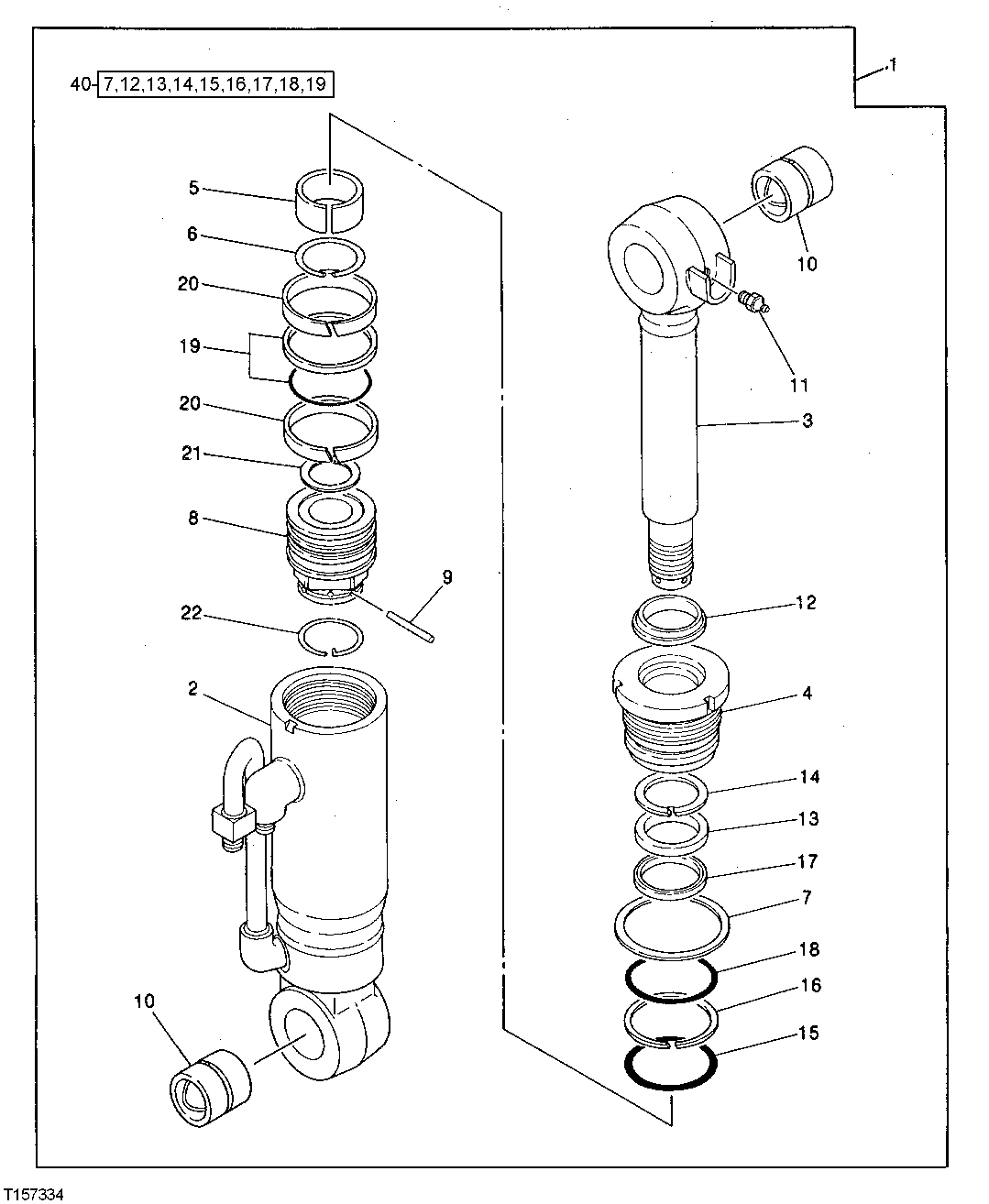

Запчасти John Deere 0 18 - BLADE CYLINDER 3360 - EXCAVATOR 33

1

3029310

HYDRAULIC CYLINDER

(SUB FOR TH105913)

1шт.

2

0243801

HYDRAULIC CYLINDER BARREL

(SUB FOR TH106897)

1шт.

3

0243802

ROD

(SUB FOR TH106898)

1шт.

4

0225803

CYLINDER HEAD

(SUB FOR TH105784)

1шт.

5

4004676

WEAR RING

(SUB FOR TH106899)

1шт.

6

0225804

SNAP RING

(SUB FOR TH105785)

1шт.

7

0178723

LOCK WASHER

(SUB FOR TH105710)

1шт.

8

0225818

PISTON

(SUB FOR TH105798)

1шт.

9

0225806

PIN

(SUB FOR TH105786)

1шт.

10

0225808

BUSHING

(SUB FOR TH105788)

2шт.

11

JD7781

LUBRICATION FITTING

(SUB FOR TH105707)

1шт.

12

AT264381

SEAL

(SUB FOR TH105789, 0453517)

1шт.

13

AT264382

SEAL

(SUB FOR TH105790, 0225810)

1шт.

14

AT264383

BACK-UP RING

(SUB FOR TH105791, 0225811)

1шт.

15

T204374

O-RING

(SUB FOR TH105932 AND AT264385)

1шт.

16

4017627

BACK-UP RING

(SUB FOR TH105931)

1шт.

17

AT264384

RING

(SUB FOR TH105792, 0225812)

1шт.

18

CH18696

PACKING

(SUB FOR TH105709)

1шт.

19

0243803

RING

(SUB FOR TH105803)

1шт.

20

0225815

RING

(SUB FOR TH105795)

2шт.

21

0225816

SHIM

(SUB FOR TH105796)

1шт.

22

0225807

SNAP RING

(SUB FOR TH105787)

1шт.

40

0225815

RING

(ALSO ORDER (2) 4S00151) (SUB FOR TH105795)

1шт.
