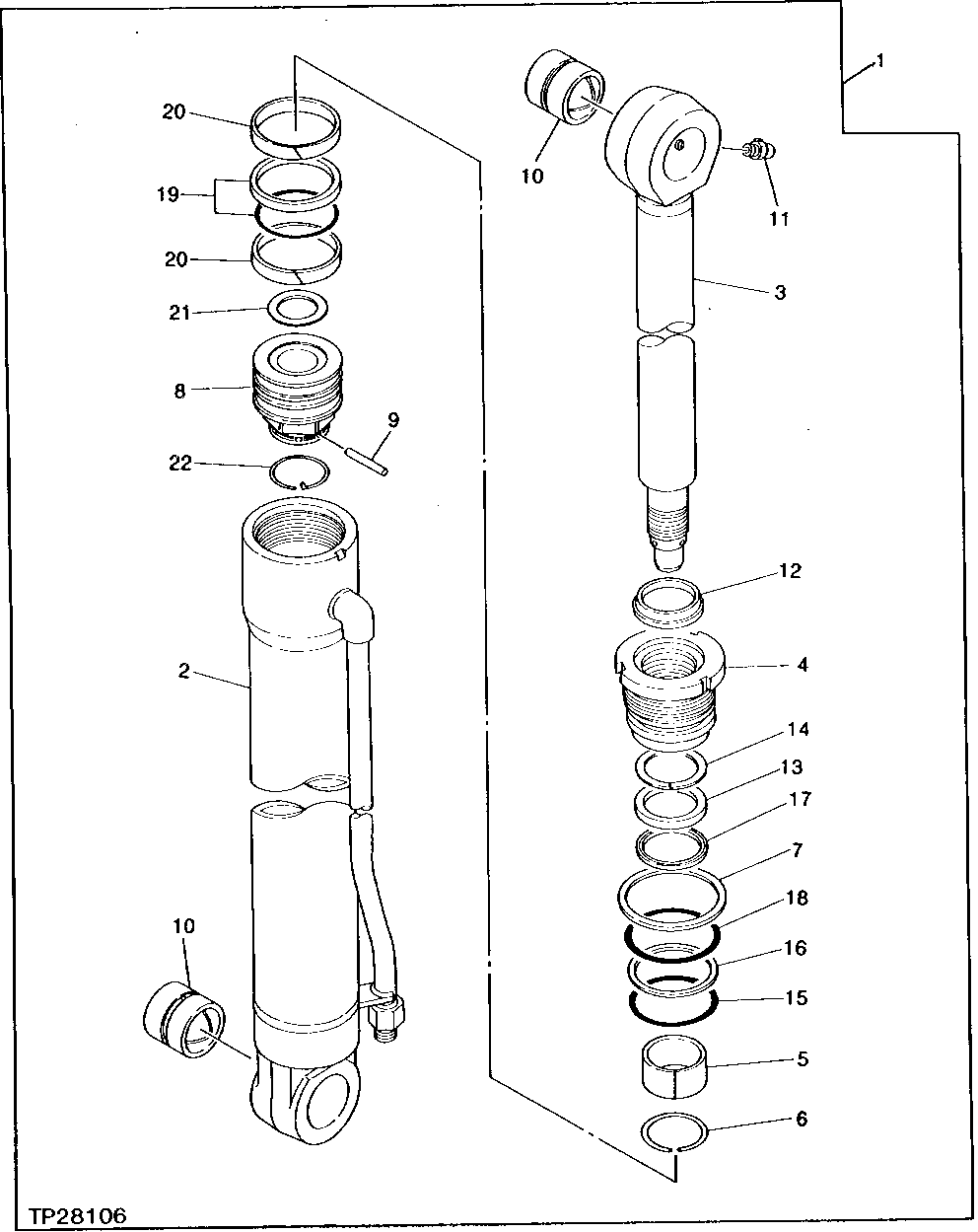

Запчасти John Deere 0 12 - ARM CYLINDER 3360 - EXCAVATOR 33

1

3031439

HYDRAULIC CYLINDER

(SUB FOR TH105922)

1шт.

2

0291401

HYDRAULIC CYLINDER BARREL

(SUB FOR TH105835)

1шт.

3

0291402

ROD

(SUB FOR TH105836)

1шт.

4

0225703

CYLINDER HEAD

(SUB FOR TH105771)

1шт.

5

988670

BUSHING

(SUB FOR TH106301)

1шт.

6

0225704

SNAP RING

(SUB FOR TH105772)

1шт.

7

0178416

LOCK WASHER

(K) (SUB FOR TH105708)

1шт.

8

0225719

PISTON

(SUB FOR TH105782)

1шт.

9

0225706

PIN

(SUB FOR TH105773)

1шт.

10

0225708-P

BUSHING

(SUB FOR TH105775)

2шт.

11

CH18478

ELBOW FITTING

(SUB FOR TH105776)

1шт.

12

AT264377

RING

(K) (SUB FOR TH105777)

1шт.

13

AT264378

RING

(K) (SUB FOR TH105778)

1шт.

14

AT264379

BACK-UP RING

(K) (SUB FOR TH105779)

1шт.

15

AT264418

O-RING

(K) (SUB FOR 4367664, U46155)

1шт.

16

4110216

BACK-UP RING

(K) (SUB FOR TH105999)

1шт.

17

AT264380

RING

(K) (SUB FOR TH105780)

1шт.

18

AT264319

O-RING

(K) (SUB FOR TH105943, T110447)

1шт.

19

0240807

RING

(K) (SUB FOR TH105802)

1шт.

20

4S00154

RING

(K) (SUB FOR TH105781)

2шт.

21

0240805

SHIM

(SUB FOR TH105801)

1шт.

22

0225707

SNAP RING

(SUB FOR TH105774)

1шт.
