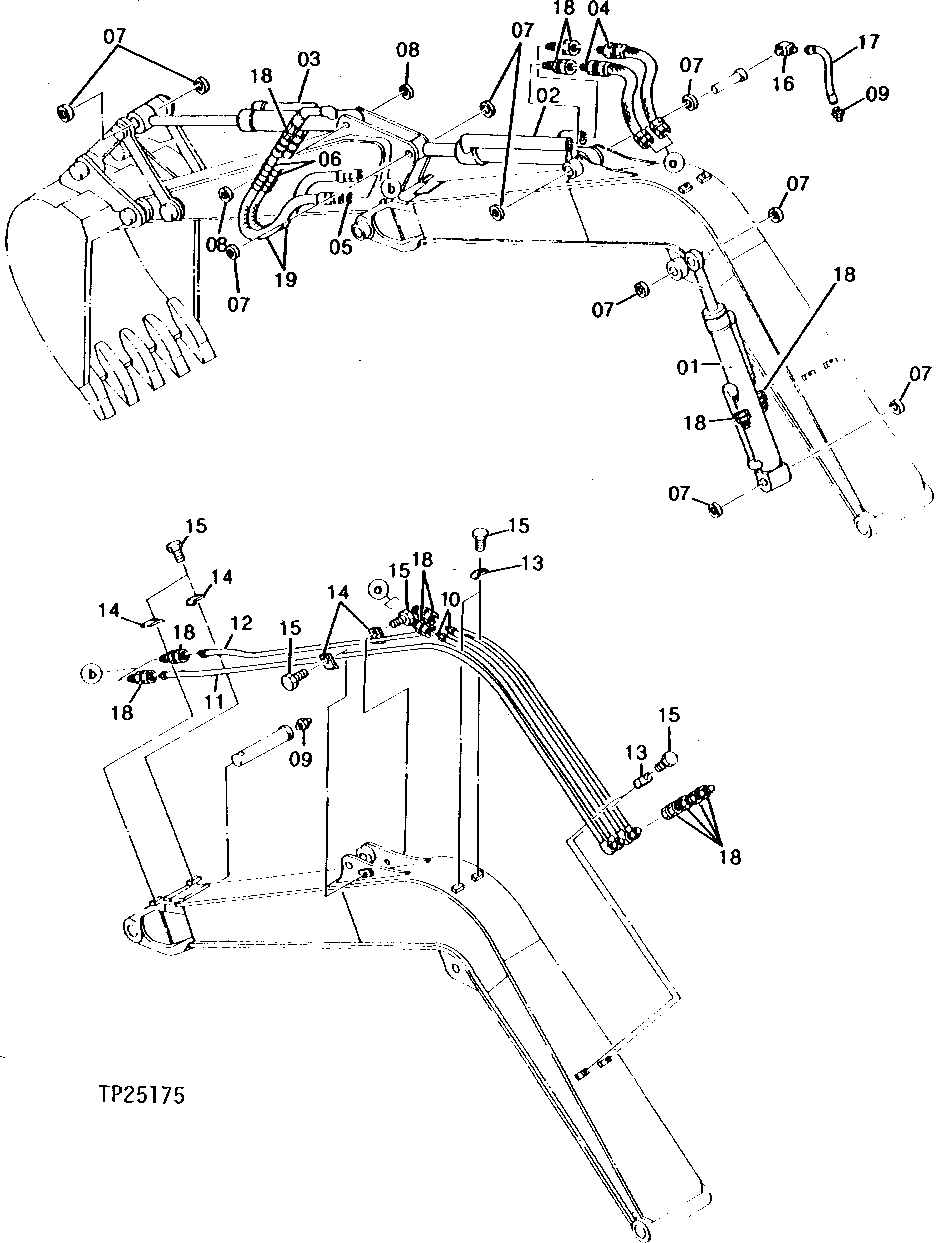

Запчасти John Deere 0 8 - ARM AND BOOM HYDRAULICS 3360 - EXCAVATOR 33

1

3031438

HYDRAULIC CYLINDER

(SUB FOR TH105921) (BOOM)

1шт.

2

3031439

HYDRAULIC CYLINDER

(SUB FOR TH105922) (ARM)

1шт.

3

3025448

HYDRAULIC CYLINDER

(SUB FOR TH105901) (BUCKET)

1шт.

4

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106134)

2шт.

5

24M7051

WASHER

21 X 37 X 3 MM

4шт.

6

TH105946

HOSE GUARD

2шт.

7

4117954

SEAL

(SUB FOR TH106006)

10шт.

8

AT318033

SEAL

(SUB FOR TH106007 OR 4117955)

2шт.

9

TH106158

ADAPTER FITTING

2шт.

10

8032942

OIL LINE

(SUB FOR TH106227)

2шт.

11

8033086

OIL LINE

(SUB FOR TH106229)

1шт.

12

8033085

OIL LINE

(SUB FOR TH106228)

1шт.

13

4053593

CLAMP

(SUB FOR TH100969)

4шт.

14

4053594

CLAMP

(SUB FOR TH100970)

4шт.

15

19M7358

CAP SCREW

M10 X 40

8шт.

16

94-1401

ELBOW FITTING

(SUB FOR TH101387)

1шт.

17

TH106061

HYDRAULIC HOSE - FABRICATE

1шт.

18

TH106158

ADAPTER FITTING

14шт.

19

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106134) (USE WITH SHORT ARM)

2шт.

4190225

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106138) (USE WITH LONG ARM)

2шт.
