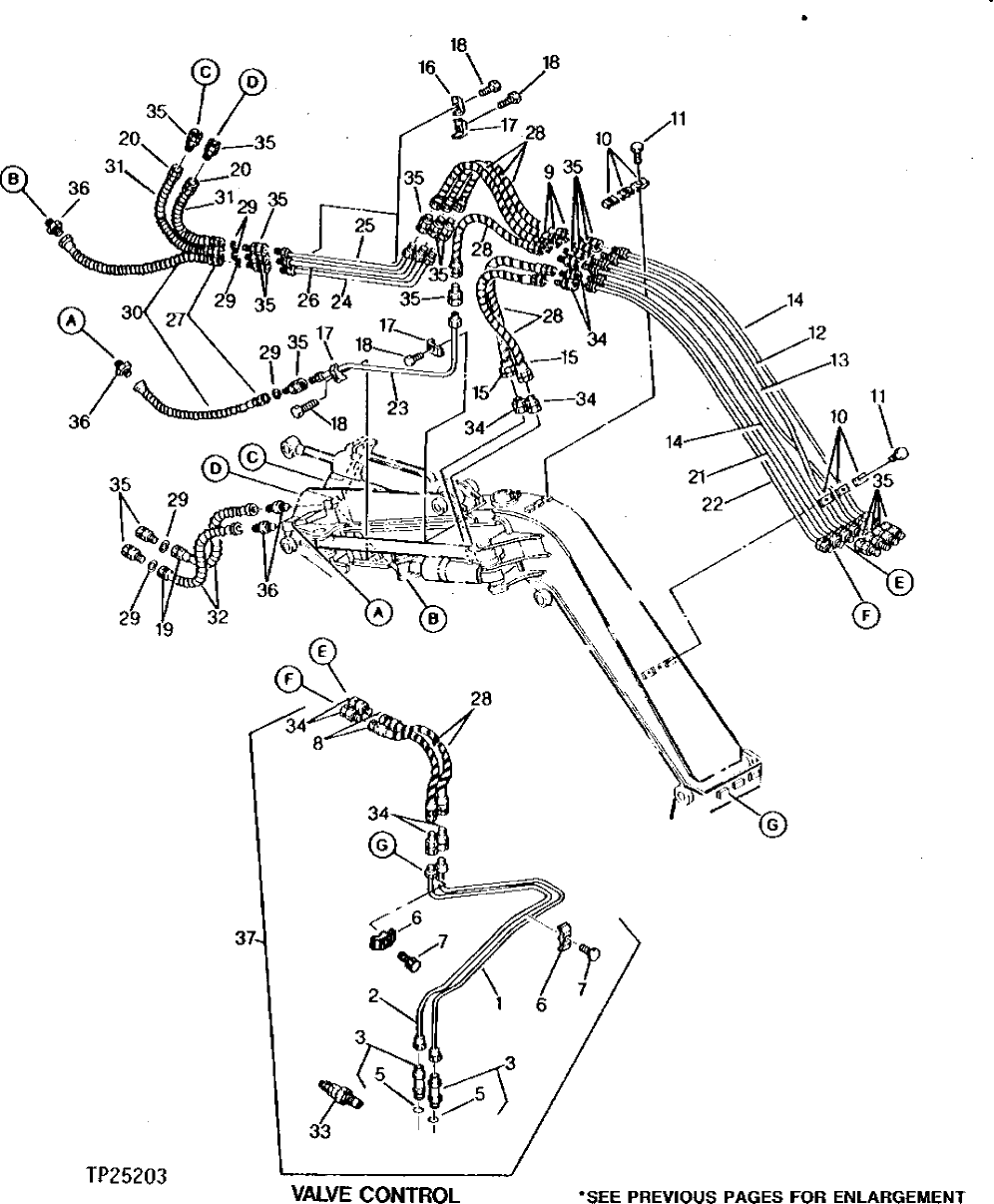

Запчасти John Deere 0 6 - OFFSET BOOM HOSES AND LINES 3360 - EXCAVATOR 33
№
Артикул
Название
Примечание
Количество
1
7015610
OIL LINE
(SUB FOR TH106195)
1шт.
2
7017117
OIL LINE
(SUB FOR TH106198)
1шт.
3
4139969
ADAPTER FITTING
(SUB FOR TH106041)
2шт.
6
4053593
CLAMP
(SUB FOR TH100969)
2шт.
7
19M7358
CAP SCREW
M10 X 40
2шт.
8
4190232
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH106145)
2шт.
9
4190224
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH106134)
4шт.
10
4053593
CLAMP
(SUB FOR TH100969)
6шт.
11
19M7358
CAP SCREW
M10 X 40
6шт.
12
8033863
OIL LINE
(SUB FOR TH106233)
1шт.
13
8033862
OIL LINE
(SUB FOR TH106232)
1шт.
14
8033861
OIL LINE
(SUB FOR TH106231)
2шт.
15
4190233
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH106146)
2шт.
16
4053593
CLAMP
(SUB FOR TH100969)
2шт.
17
4053594
CLAMP
(SUB FOR TH100970)
4шт.
18
19M7358
CAP SCREW
M10 X 40
6шт.
19
4190224
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH106134)
2шт.
20
4190234
HYDRAULIC HOSE - FABRICATE
(SUB FOR TH106147)
2шт.
21
8033865
OIL LINE
(SUB FOR TH106235)
1шт.
22
8033864
OIL LINE
(SUB FOR TH106234)
1шт.
23
8029884
OIL LINE
(SUB FOR TH106214)
1шт.
24
8028213
OIL LINE
(SUB FOR TH106209)
1шт.
25
8028215
OIL LINE
(SUB FOR TH106211)
1шт.
26
8028214
OIL LINE
(SUB FOR TH106210)
1шт.
27
AT42233
HYDRAULIC HOSE
(SUB FOR TH106148) (USE IF AVAILABLE)
2шт.
AT42233
HYDRAULIC HOSE
3/4" X 762 MM (30") X 3/4", (SUB FOR TH106148)
2шт.
28
HOSE GUARD
(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)
10шт.
29
4073051
WASHER
(SUB FOR TH105953)
8шт.
30
HOSE GUARD
(FURNISH TH101393 CUT TO LENGTH) ( TH105945 NO LONGER AVAILABLE)
2шт.
31
4070691
GUARD
(SUB FOR TH105952)
2шт.
32
HOSE GUARD
(FURNISH TH101393 CUT TO LENGTH)
2шт.
33
4180674
PRESSURE RELIEF VALVE
(SUB FOR TH106101)
2шт.
34
TH106156
ADAPTER FITTING
8шт.
35
TH106158
ADAPTER FITTING
20шт.
36
4154653
ADAPTER FITTING
(SUB FOR TH100989)
4шт.
37
OIL LINE
( TH108082 NO LONGER AVAILABLE)
1шт.
Выбрано товаров: 37
