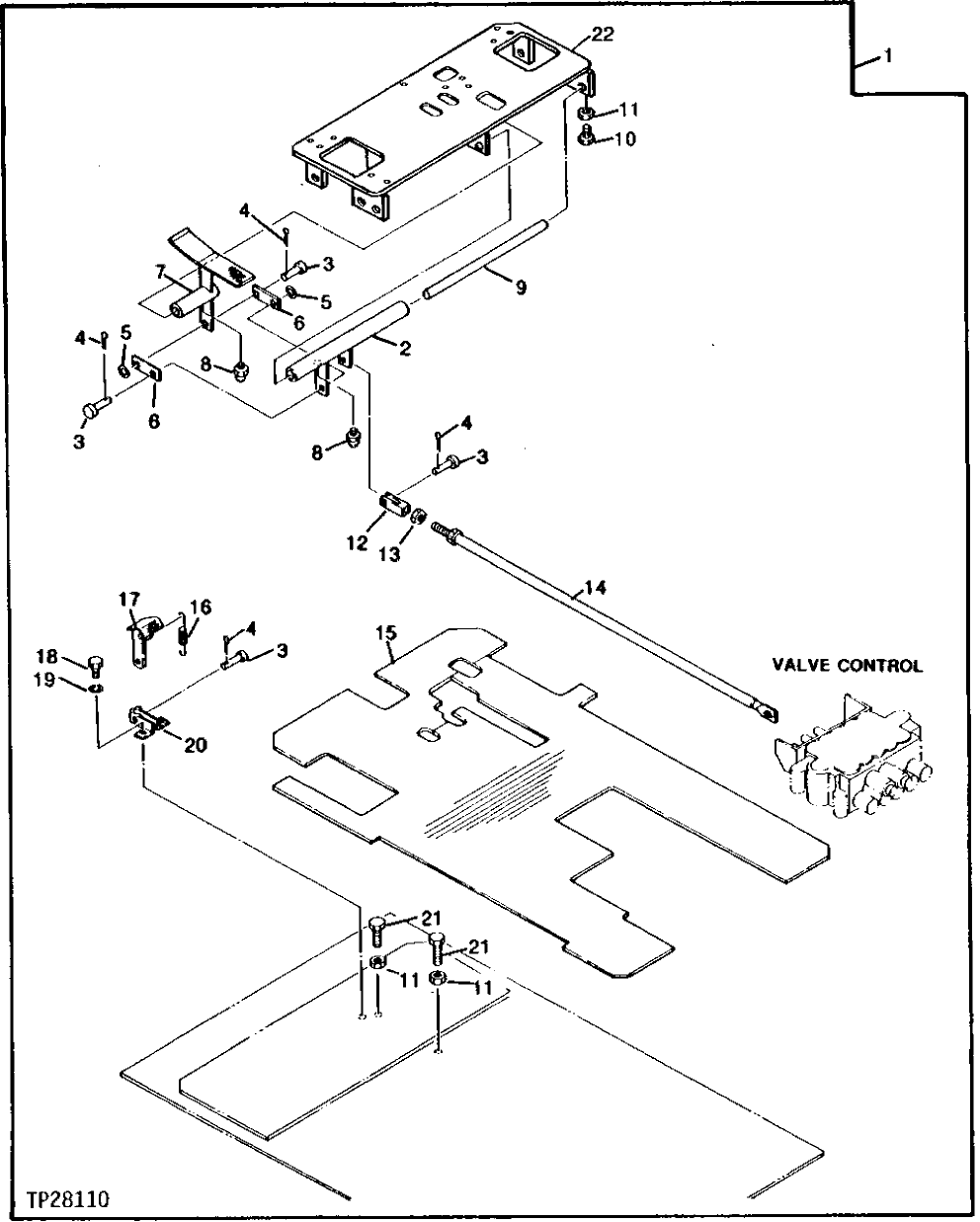

Запчасти John Deere 0 14 - AUXILIARY FOOT CONTROL LINKAGE 3315 - EXCAVATOR 33

1

KIT

(ALSO ORDER (2) TH106101 AND (2) TH101006 OR (2) X8-10F5OX) (FOR USE WITH ONE PIECE BOOM ONLY) ( TH110075 NO LONGER AVAILABLE)

1шт.

2

9062665

LEVER

(SUB FOR TH106743)

1шт.

3

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

4шт.

4

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR 11M7080)

4шт.

5

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

6

TH108044

PLATE

2шт.

7

9062666

PEDAL

(SUB FOR TH106742)

1шт.

8

TH100074

LUBRICATION FITTING

2шт.

9

4166100

PIN

(SUB FOR TH106750)

1шт.

10

19M7402

CAP SCREW

M10 X 25

1шт.

11

14M7274

NUT

M10

3шт.

12

M981055

END

(SUB FOR TH105702)

1шт.

13

J952010

NUT

(SUB FOR TH104196)

1шт.

14

9724082

ROD

(SUB FOR TH106745)

1шт.

15

2021926

MAT

(SUB FOR TH106751)

1шт.

16

4149125

SPRING

(SUB FOR TH106748)

1шт.

17

9718654

PEDAL

(SUB FOR TH106747)

1шт.

18

19M8324

CAP SCREW

M10 X 16

2шт.

19

12M7066

LOCK WASHER

10 MM

2шт.

20

8027060

BRACKET

(SUB FOR TH106746)

1шт.

21

19M8600

CAP SCREW

M10 X 50

1шт.

22

7015314

BRACKET

(SUB FOR TH106187)

1шт.
