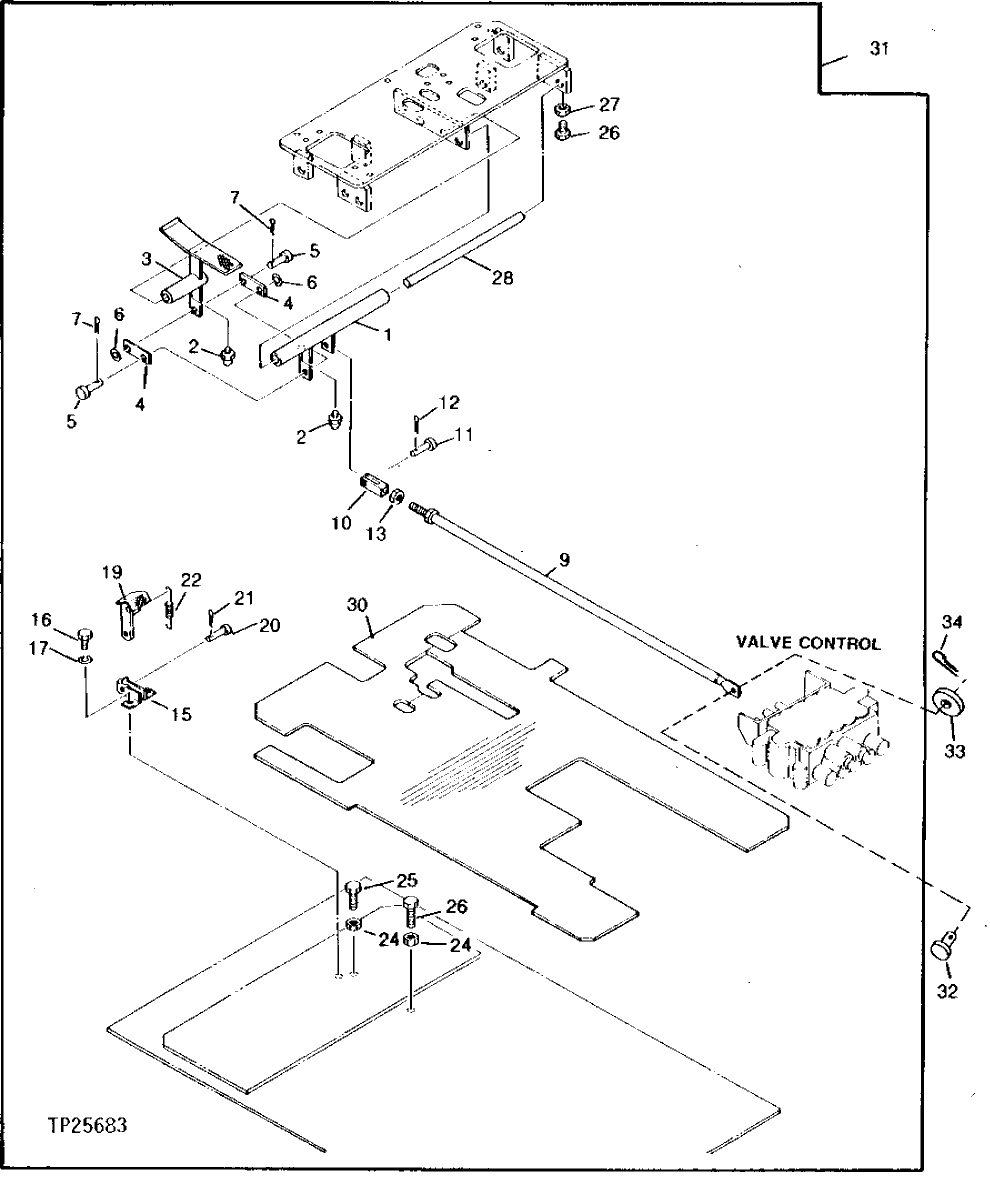

Запчасти John Deere 0 12 - OFFSET BOOM CONTROL PEDAL 3315 - EXCAVATOR 33

1

9062665

LEVER

(SUB FOR TH106743)

1шт.

2

TH100074

LUBRICATION FITTING

2шт.

3

9062666

PEDAL

(SUB FOR TH106742)

1шт.

4

TH108044

PLATE

(SET OF TWO)

1шт.

5

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

2шт.

6

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

7

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

2шт.

9

9724082

ROD

(SUB FOR TH106745)

1шт.

10

M981055

END

(SUB FOR TH105702)

1шт.

11

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

1шт.

12

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

1шт.

13

J952010

NUT

(SUB FOR TH104196)

1шт.

15

8027060

BRACKET

(SUB FOR TH106746)

1шт.

16

19M8324

CAP SCREW

M10 X 16

2шт.

17

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

19

9718654

PEDAL

(SUB FOR TH106747)

1шт.

20

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

1шт.

21

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

1шт.

22

4149125

SPRING

(SUB FOR TH106748)

1шт.

24

14M7274

NUT

M10

2шт.

25

19M8447

SCREW

(SUB FOR TH106749 AND TH100941)

2шт.

26

19M7402

CAP SCREW

M10 X 25

1шт.

27

14M7274

NUT

M10

1шт.

28

4166100

PIN

(SUB FOR TH106750)

1шт.

30

2021926

MAT

(SUB FOR TH106751)

1шт.

31

LEVER

( TH110225 NO LONGER AVAILABLE)

1шт.

32

4168988

PIN

(SUB FOR TH108075)

1шт.

33

24M7054

WASHER

6.400 X 12 X 1.600 MM

1шт.

34

11M7075

COTTER PIN

1.200 X 12 MM

1шт.
