Запчасти John Deere 0 8 - CONTROL LEVER LOCK 3315 - EXCAVATOR 33

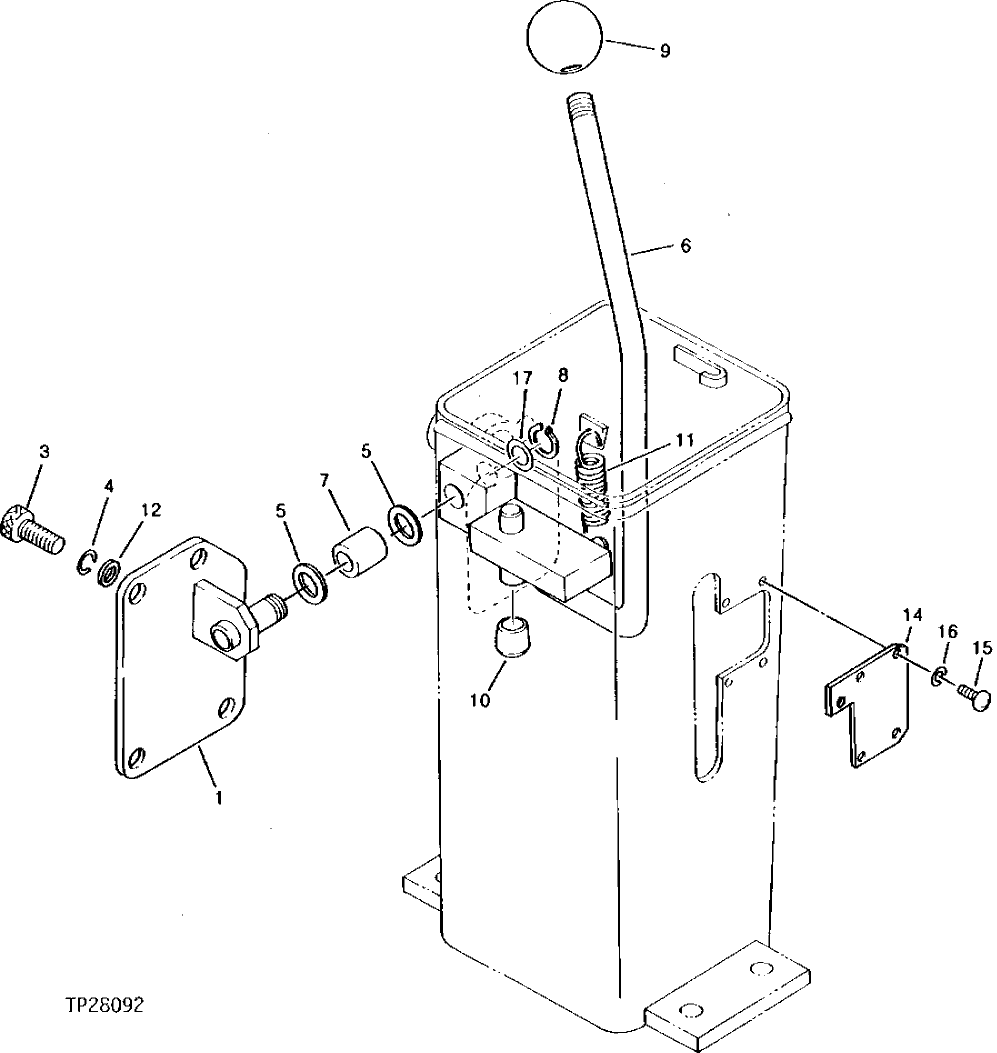

Схема запчастей John Deere 0 - 8 - CONTROL LEVER LOCK 3315 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

9726025

BRACKET

(SUB FOR TH106481)

1шт.

3

19M8440

SCREW

M10 X 25, (SUB FOR TH101108)

4шт.

4

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

5

A590414

WASHER

(SUB FOR TH107990)

2шт.

6

8036424

LEVER

(SUB FOR TH106482)

1шт.

7

4042162

SPACER

(SUB FOR TH106483)

1шт.

8

40M7188

SNAP RING

(SUB FOR TH103803)

1шт.

9

4143169

KNOB

(SUB FOR TH100268)

1шт.

10

4193061

CAP

(SUB FOR TH106484)

1шт.

11

4191698

EXTENSION SPRING

(SUB FOR TH106485)

1шт.

12

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

4шт.

14

4199532

COVER

(SUB FOR TH106486) (SUB FOR TH107989)

1шт.

15

21M7285

SCREW

M6 X 12, (SUB FOR TH102134)

4шт.

16

12M7006

LOCK WASHER

6 MM

4шт.

17

24M7085

WASHER

15 X 28 X 2.500 MM, (SUB FOR TH102583)

1шт.

Выбрано товаров: 15
