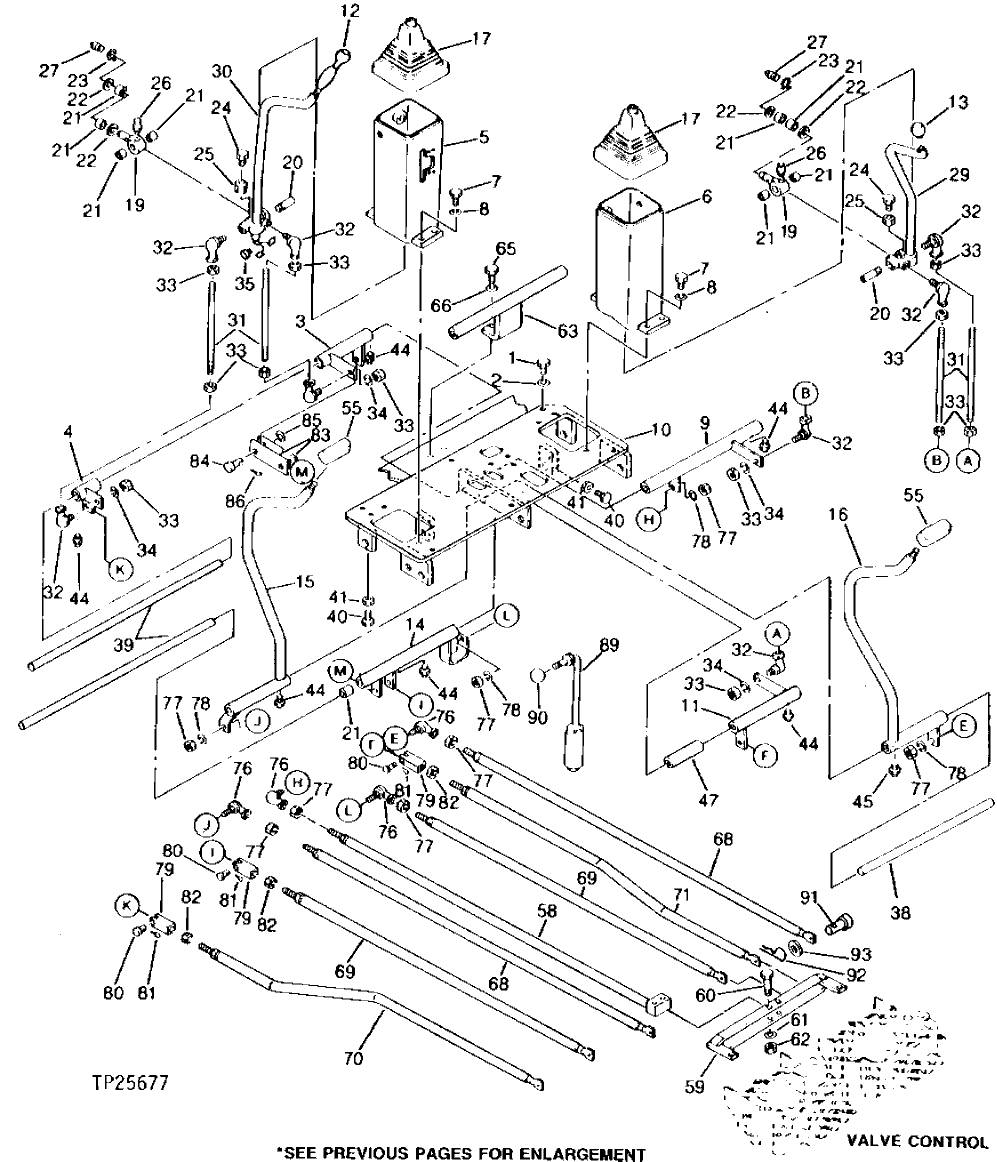

Запчасти John Deere 0 6 - CONTROL LEVER 3315 - EXCAVATOR 33

26

TH100074

LUBRICATION FITTING

2шт.

27

94-2010

FITTING PLUG

(SUB FOR TH100689)

2шт.

29

7017161

LEVER

(SUB FOR TH106205)

1шт.

30

7017283

LEVER

(SUB FOR TH106206)

1шт.

31

4131254

STUD

(SUB FOR TH106020)

4шт.

32

4056019

BALL JOINT

(SUB FOR TH100254)

8шт.

33

14M7444

NUT

M10, (SUB FOR TH100255)

12шт.

34

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

35

487081

GROMMET

(SUB FOR TH108081)

1шт.

38

4140991

PIN

(SUB FOR TH106051)

1шт.

39

4165564

PIN

(SUB FOR TH106085)

2шт.

40

19M7662

CAP SCREW

M10 X 30

3шт.

41

14M7274

NUT

M10

3шт.

44

TH100074

LUBRICATION FITTING

6шт.

45

TH100074

LUBRICATION FITTING

1шт.

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

1шт.

47

4170084

SPACER

(SUB FOR TH106092)

1шт.

55

4122423

GRIP

(SUB FOR TH106012)

2шт.

58

9723658

ROD

(SUB FOR TH106288)

1шт.

59

8031938

LINK

(SUB FOR TH106217)

1шт.

60

19M8499

CAP SCREW

M10 X 60

2шт.

61

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

62

14M7274

NUT

M10

2шт.

63

9719420

FOOTREST

(SUB FOR TH106281)

1шт.

65

19M7402

CAP SCREW

M10 X 25

2шт.

66

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

68

9723689

ROD

(SUB FOR TH106290)

2шт.

69

9723688

ROD

(SUB FOR TH106289)

2шт.

70

9723140

ROD

(SUB FOR TH106287)

1шт.

71

9722308

ROD

(SUB FOR TH106285)

1шт.

76

4056019

BALL JOINT

(SUB FOR TH100254)

4шт.

77

14M7444

NUT

M10, (SUB FOR TH100255)

9шт.

78

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

5шт.

79

M981055

END

(SUB FOR TH105702)

3шт.

80

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

3шт.

81

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

3шт.

82

14M7444

NUT

M10, (SUB FOR TH100255)

3шт.

83

9725845

STRAP

(SUB FOR TH106298)

1шт.

84

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

2шт.

85

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

86

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

2шт.

89

8025882

LOCK

(SUB FOR TH106208)

1шт.

90

4143169

KNOB

(SUB FOR TH100268)

1шт.

91

4168988

PIN

(SUB FOR TH108075)

8шт.

92

24M7054

WASHER

6.400 X 12 X 1.600 MM

8шт.

93

11M7075

COTTER PIN

1.200 X 12 MM

8шт.
