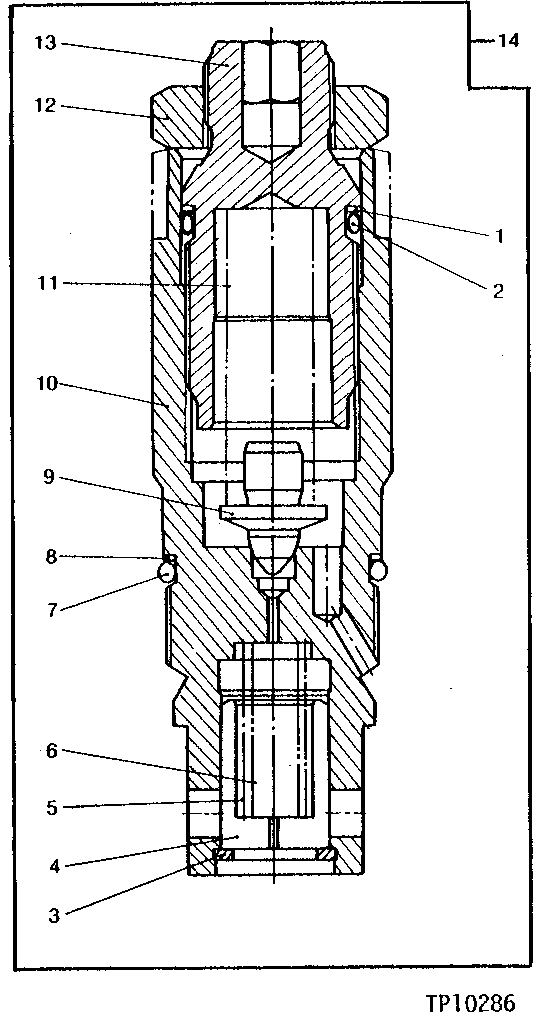

Запчасти John Deere 0 50 - PILOT PRESSURE RELIEF VALVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

0444507

BACK-UP RING

14 X 16.500 X 0.500 MM (0.551" X 0.650" X 0.020") (SUB FOR TH101562) (SUB FOR AT200255)

1шт.

2

R76617

O-RING

12.421 X 1.778 MM (0.489" X 0.070") (SUB FOR TH101564)

1шт.

3

0215711

SNAP RING

(SUB FOR TH101566)

1шт.

4

VALVE SPOOL

(SUB TH101419)

1шт.

5

SPRING

( TH101561 NO LONGER AVAILABLE)

1шт.

6

SPRING

( TH101568 NO LONGER AVAILABLE)

1шт.

7

0215710

O-RING

17.170 X 1.778 MM (0.676" X 0.070") (SUB FOR TH101565)

1шт.

8

0215708

BACK-UP RING

(SUB FOR TH101563)

1шт.

9

POPPET

(SUB TH101419)

1шт.

10

HOUSING

(SUB TH101419)

1шт.

11

SPRING

( TH101567 NO LONGER AVAILABLE)

1шт.

12

NUT

(SUB TH101419)

1шт.

13

SCREW

(SUB TH101419)

1шт.

14

4163192

RELIEF VALVE

(SUB FOR TH101419)

1шт.
