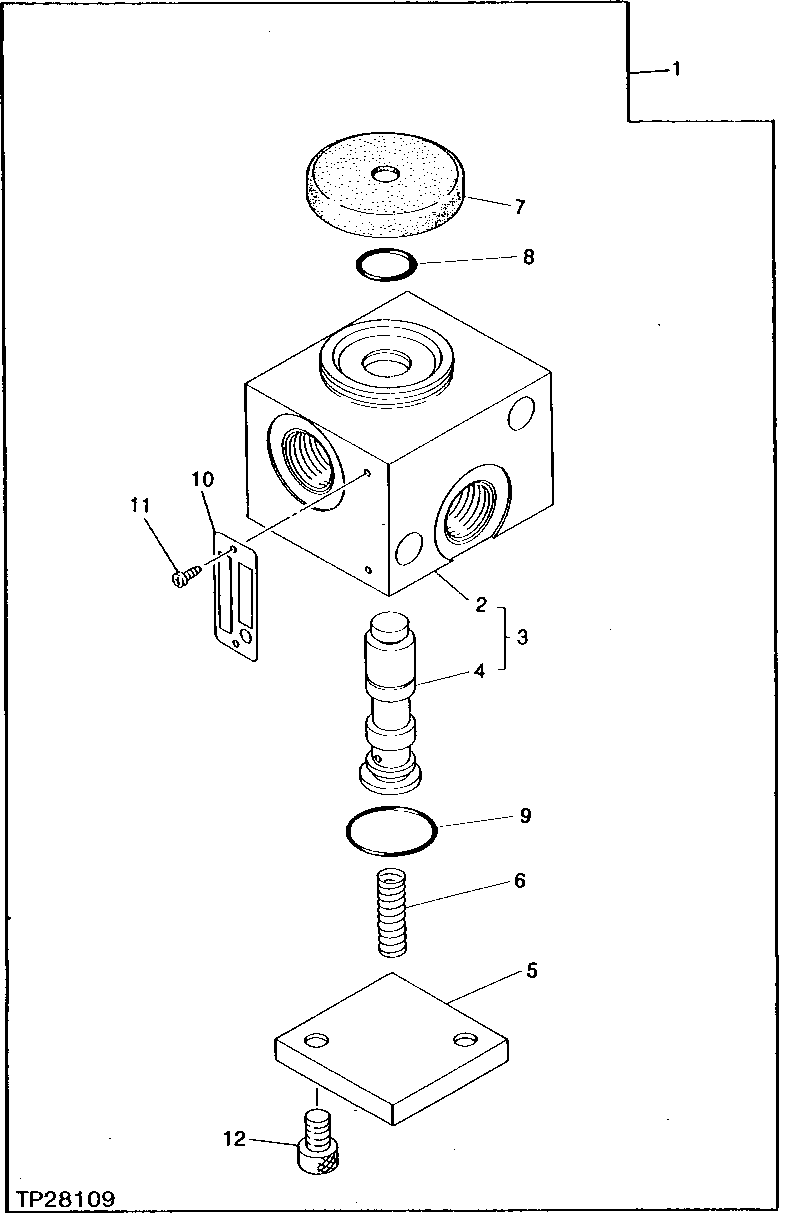

Запчасти John Deere 0 48 - PILOT VALVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

4135337

VALVE

(SUB FOR TH101992) STANDARD

1шт.

4135337

VALVE

(SUB FOR TH101992) WITH BLADE

2шт.

4201720

VALVE

(SUB FOR TH110079) STANDARD

1шт.

4201720

VALVE

(SUB FOR TH110079) WITH BLADE

2шт.

2

VALVE

(SUB TH101992)

1шт.

3

HOUSING

(SUB TH101992)

1шт.

4

SPOOL

(SUB TH101992)

1шт.

5

COVER

(USE WITH TH101992) ( TH106353 NO LONGER AVAILABLE)

1шт.

6

0208903

SPRING

(USE WITH TH101992) (SUB FOR TH105711)

1шт.

7

COVER

(USE WITH TH101992) ( TH105712 NO LONGER AVAILABLE)

1шт.

8

CH15146

PACKING

(USE WITH TH101992)

1шт.

9

4506416

O-RING

(USE WITH TH101992) (SUB FOR TH102561)

1шт.

10

PLATE

(SUB TH101992)

1шт.

11

SCREW

(SUB TH110079) (STANDARD)

2шт.

SCREW

(SUB TH110079) (WITH BLADE)

2шт.

0208717

SCREW

(SUB FOR TH102697) (STANDARD)

2шт.

0208717

SCREW

(SUB FOR TH102697) (WITH BLADE)

2шт.

12

0344046

BOLT

(USE WITH TH101992) (SUB FOR TH105713) (SUB FOR AT121123)

2шт.
