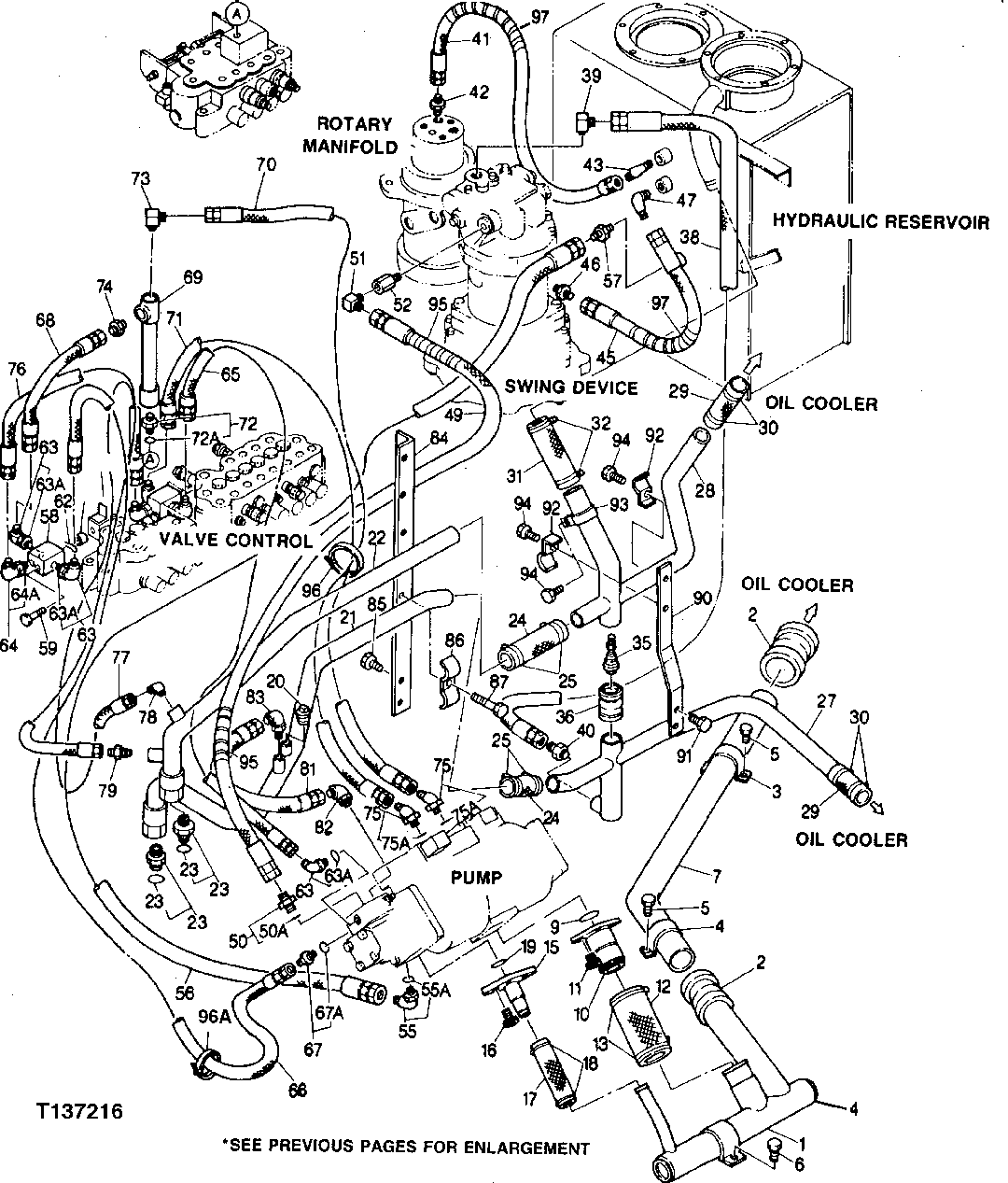

Запчасти John Deere 0 46 - OIL COOLER LINES AND HOSES 2160 - MAIN HYDRAULIC SYSTEM 21

55

4190246

ELBOW FITTING

(SUB FOR TH106154)

1шт.

55A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

56

4190219

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106127)

1шт.

57

4190245

ADAPTER FITTING

(SUB FOR TH106153)

1шт.

58

4135337

VALVE

(SUB FOR TH101992) STANDARD

2шт.

4135337

VALVE

(SUB FOR TH101992) WITH BLADE

2шт.

4201720

VALVE

(SUB FOR TH110079) STANDARD

2шт.

4201720

VALVE

(SUB FOR TH110079) WITH BLADE

2шт.

59

TH105694

SCREW

4шт.

60

4175785

STRAP

(SUB FOR 14M7272) (SUB FOR TH108043)

2шт.

61

4134871

BUSHING

(SUB FOR TH102063)

2шт.

62

11M7099

COTTER PIN

2 X 12 MM, (SUB FOR TH102069)

2шт.

63

4154670

ELBOW FITTING

(SUB FOR TH100951)

5шт.

63A

M800650

PACKING

(SUB FOR TH100716)

1шт.

64

AT318014

ELBOW FITTING

(SUB FOR 4156434) (SUB FOR TH101930)

2шт.

64A

M800650

PACKING

(SUB FOR TH100716)

1шт.

65

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106149) (USE IF AVAILABLE)

1шт.

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106149)

1шт.

66

AE42282

HYDRAULIC HOSE

(SUB FOR TH106129)

1шт.

67

4200465

ADAPTER FITTING

(SUB FOR TH101059) (SUB FOR TH108328)

1шт.

67A

M800650

PACKING

(SUB FOR TH100716)

1шт.

68

AT126482

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH101058)

1шт.

69

9725718

LINE

(SUB FOR TH106292)

1шт.

70

AE42718

HYDRAULIC HOSE

(SUB FOR TH106128)

1шт.

71

AE42282

HYDRAULIC HOSE

(SUB FOR TH106129)

1шт.

72

4042030

ADAPTER FITTING

(SUB FOR TH105939)

1шт.

72A

M800650

PACKING

(SUB FOR TH100716)

1шт.

73

4154656

ELBOW FITTING

(SUB FOR TH101588)

1шт.

74

X0103-4-4

ADAPTER FITTING

(SUB FOR TH100963)

1шт.

75

4193826

ELBOW FITTING

(SUB FOR TH106467)

2шт.

76

AE25986

HYDRAULIC HOSE

(SUB FOR TH106131)

1шт.

77

AR98204

HYDRAULIC HOSE

(SUB FOR TH101048)

1шт.

78

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

79

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

81

AE25986

HYDRAULIC HOSE

(SUB FOR TH106131)

1шт.

82

4190244

ELBOW FITTING

(SUB FOR TH106152)

1шт.

83

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

84

8027851

ANGLE

(SUB FOR TH106468)

1шт.

85

19M8011

CAP SCREW

M12 X 30

2шт.

86

4053599

CLAMP

(SUB FOR TH101980)

1шт.

87

19M8348

CAP SCREW

M12 X 65

1шт.

90

4191149

SUPPORT

(SUB FOR TH106469)

1шт.

91

19M8011

CAP SCREW

M12 X 30

2шт.

92

4053598

CLAMP

(SUB FOR TH101032)

2шт.

93

4053698

CLAMP

(SUB FOR TH101936)

1шт.

94

19M8348

CAP SCREW

M12 X 65

3шт.

95

E90991

HOSE GUARD

(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

7шт.

96

H77698

TIE BAND

(SUB FOR T44946)

3шт.

96A

H77698

TIE BAND

(SUB FOR TH102001 OR M88199)

1шт.

97

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

7шт.
