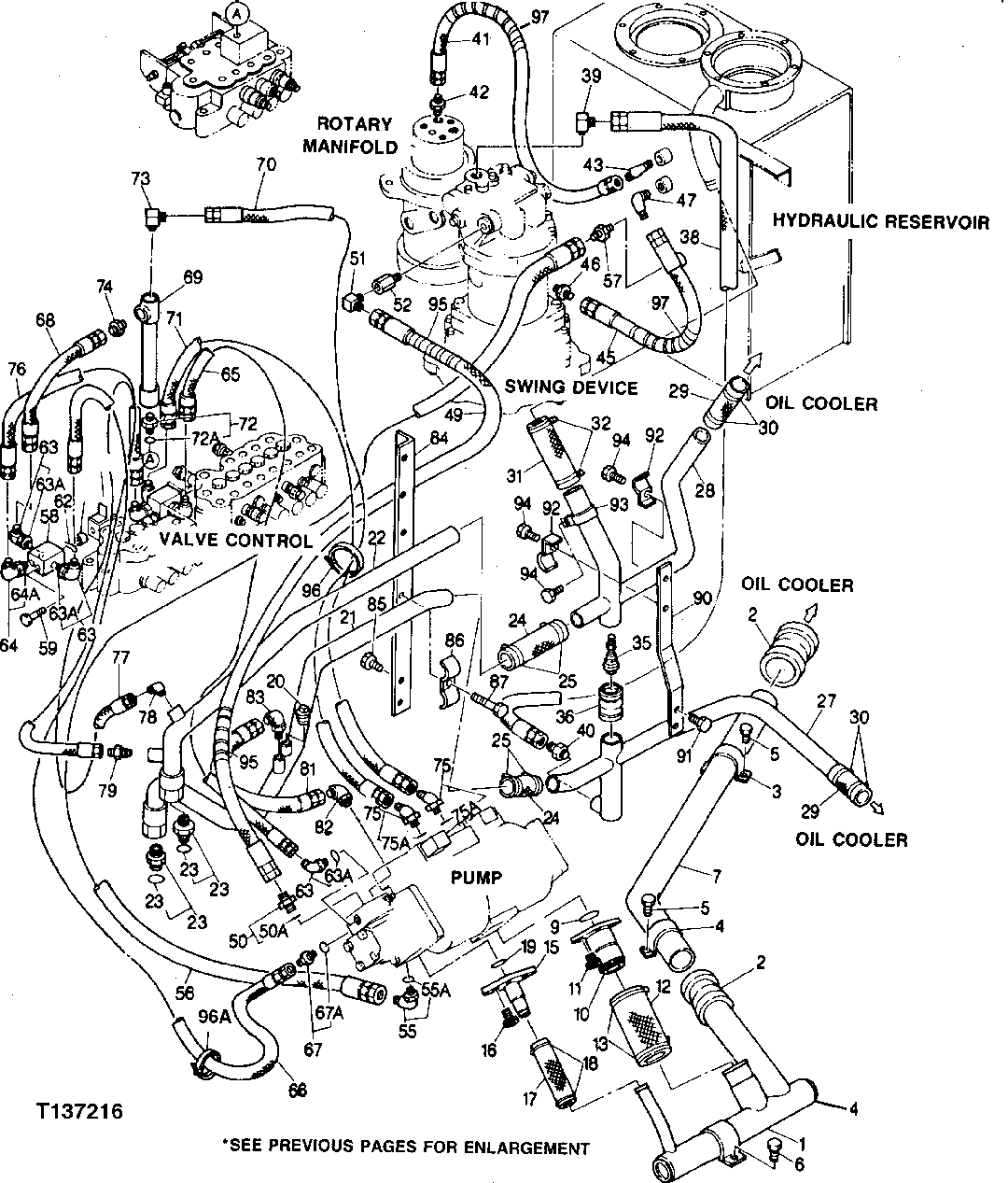

Запчасти John Deere 0 44 - OIL COOLER LINES AND HOSES 2160 - MAIN HYDRAULIC SYSTEM 21

1

7017116

LINE

(SUB FOR TH106197)

1шт.

2

4067833

COUPLING

(SUB FOR TH101934)

2шт.

4196261

SEAL

(SUB FOR TH106968)

1шт.

3

4053865

CLAMP

(SUB FOR TH103646)

1шт.

4

4170694

CLAMP

(SUB FOR TH106466)

2шт.

5

19M7938

CAP SCREW

M10 X 20

3шт.

6

19M7402

CAP SCREW

M10 X 25

1шт.

7

3035837

LINE

(SUB FOR TH105927)

1шт.

9

TH105683

O-RING

1шт.

10

9722274

LINE

(SUB FOR TH106283)

1шт.

11

19M8448

SCREW

(SUB FOR TH101907)

4шт.

12

4053959

HOSE

(SUB FOR TH105948)

1шт.

13

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR TH101728)

2шт.

15

9722275

LINE

(SUB FOR TH106284)

1шт.

16

19M8447

SCREW

(SUB FOR TH100941)

4шт.

17

HOSE

(SUB FOR TH106008) ( 4120248 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY22556 BULK MATERIAL CUT TO 150 MM LENGTH)

1шт.

18

TY22467

CLAMP

(SUB FOR TH101909 OR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

19

A811030

O-RING

(SUB FOR TH101300)

1шт.

20

94-2024

FITTING PLUG

(SUB FOR TH101292)

1шт.

21

8036045

OIL TUBE

(SUB FOR TH106239)

1шт.

22

8036046

OIL TUBE

(SUB FOR TH106240)

1шт.

23

4139973

ADAPTER FITTING

(SUB FOR TH106045)

2шт.

23A

4506424

O-RING

(SUB FOR TH100055)

1шт.

24

4125486

HOSE

(SUB FOR TH101025)

2шт.

25

TY22470

CLAMP

(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)

4шт.

27

8036044

OIL TUBE

(SUB FOR TH106238)

1шт.

28

8036043

LINE

(SUB FOR TH106237)

1шт.

29

4125486

HOSE

(SUB FOR TH101025)

2шт.

30

TY22470

CLAMP

(SUB FOR TH102960) (SUB FOR AR21840, THIS APPLICATION) (SUB FOR AR65293)

4шт.

31

HOSE

( TH106010 NO LONGER AVAILABLE) (SUB TH101919 BULK MATERIAL CUT TO LENGTH OF 150 MM)

1шт.

32

TY22472

CLAMP

(SUB FOR AT145651 OR AR21999 OR AR21840)

2шт.

35

4170957

VALVE

(SUB FOR TH106094)

1шт.

36

4069801

COUPLING

(SUB FOR TH101915)

1шт.

4196259

SEAL

(SUB FOR TH106966)

1шт.

38

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106071) ( 4156407 NO LONGER AVAILABLE FOR SERVICE)

1шт.

39

4156433

ELBOW FITTING

(SUB FOR TH101971)

1шт.

40

4154654

ADAPTER FITTING

(SUB FOR TH100942)

1шт.

41

AT48434

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106125)

1шт.

42

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

43

T115889

ELBOW FITTING

(SUB FOR TH101035)

1шт.

45

4190224

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106126) (SUB FOR TH106134)

1шт.

46

4154653

ADAPTER FITTING

(SUB FOR TH100989)

1шт.

47

4154658

ELBOW FITTING

(SUB FOR TH101039)

1шт.

49

AT71731

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106150) (USE IF AVAILABLE)

1шт.

AT71731

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106150)

1шт.

50

4200465

ADAPTER FITTING

(SUB FOR TH101059) (SUB FOR TH108328)

1шт.

50A

M800650

PACKING

(SUB FOR TH100716)

1шт.

51

4154656

ELBOW FITTING

(SUB FOR TH101588)

1шт.

52

4078859

ADAPTER FITTING

(SUB FOR TH105956)

1шт.
