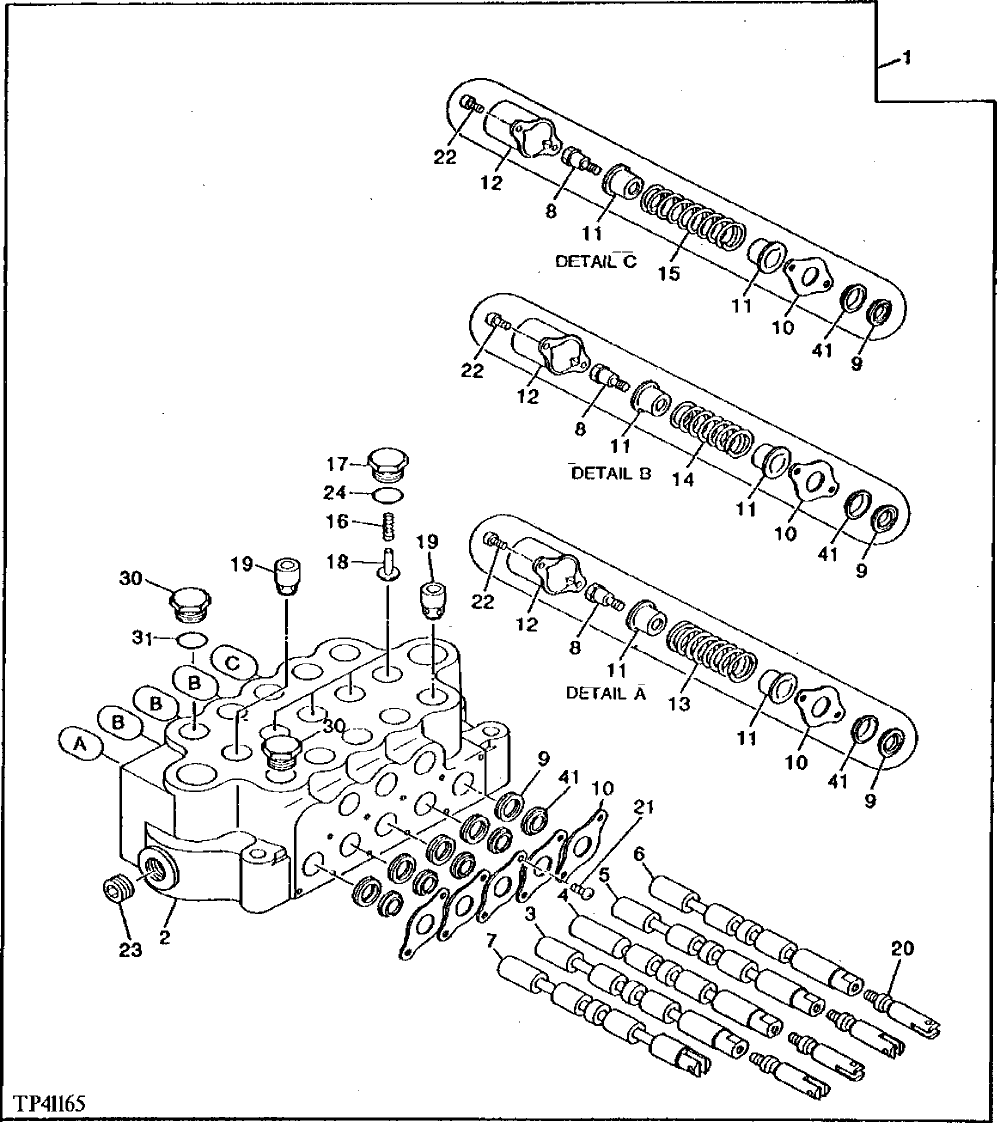

Запчасти John Deere 0 32 - CONTROL VALVE 2160 - MAIN HYDRAULIC SYSTEM 21

1

4168641

HYD ACTUATED CONTROL VALVE

(SUB FOR TH106472) (CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS, SEE FOLLOWING PAGE)

1шт.

2

HOUSING

(SUB TH106472)

1шт.

3

SPOOL

(SUB TH106472) ARM

1шт.

4

SPOOL

(SUB TH106472) AUXILIARY

1шт.

5

SPOOL

(SUB TH106472) BOOM I

1шт.

6

SPOOL

(SUB TH106472) BUCKET

1шт.

7

SPOOL

(SUB TH106472) RIGHT PROPEL

1шт.

8

0225201

CAP SCREW

(SUB FOR TH106840)

5шт.

9

0225202

SEAL

(SUB FOR TH105747)

10шт.

10

0225204

PLATE

(SUB FOR TH105749)

10шт.

11

0225205

RETAINER

(SUB FOR TH105750)

10шт.

12

0225206

CAP

(SUB FOR TH105751)

5шт.

13

0225208

SPRING

(SUB FOR TH105753)

1шт.

14

0225207

SPRING

(SUB FOR TH105752)

3шт.

15

0289501

SPRING

(SUB FOR TH105821) (WITHOUT BLADE)

1шт.

0289501

SPRING

(SUB FOR TH105821) (WITH BLADE)

1шт.

0289513

SPRING

(SUB FOR TH108085) (WITHOUT BLADE)

1шт.

0289513

SPRING

(SUB FOR TH108085) (WITH BLADE)

1шт.

16

0225209

SPRING

(SUB FOR TH105754)

4шт.

17

0225210

FITTING PLUG

(SUB FOR TH105755)

4шт.

18

0225211

POPPET

(SUB FOR TH105756)

4шт.

19

0289502

POPPET

(SUB FOR TH105822)

2шт.

20

0289503

CYLINDER HEAD

(SUB FOR TH105823)

4шт.

21

21M7400

SCREW

M6 X 10, (SUB FOR TH105705)

4шт.

22

0209423

BOLT

(SUB FOR TH105824) (SUB FOR TH100738)

10шт.

23

0113504

PLUG

(SUB FOR TH102732)

1шт.

24

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

4шт.

30

0225216

FITTING PLUG

(SUB FOR TH105825) (SUB FOR TH105757)

2шт.

31

4506418

O-RING

(SUB FOR U46489)

2шт.

41

0225203

SEAL

(SUB FOR TH105748) (WIPER)

10шт.
