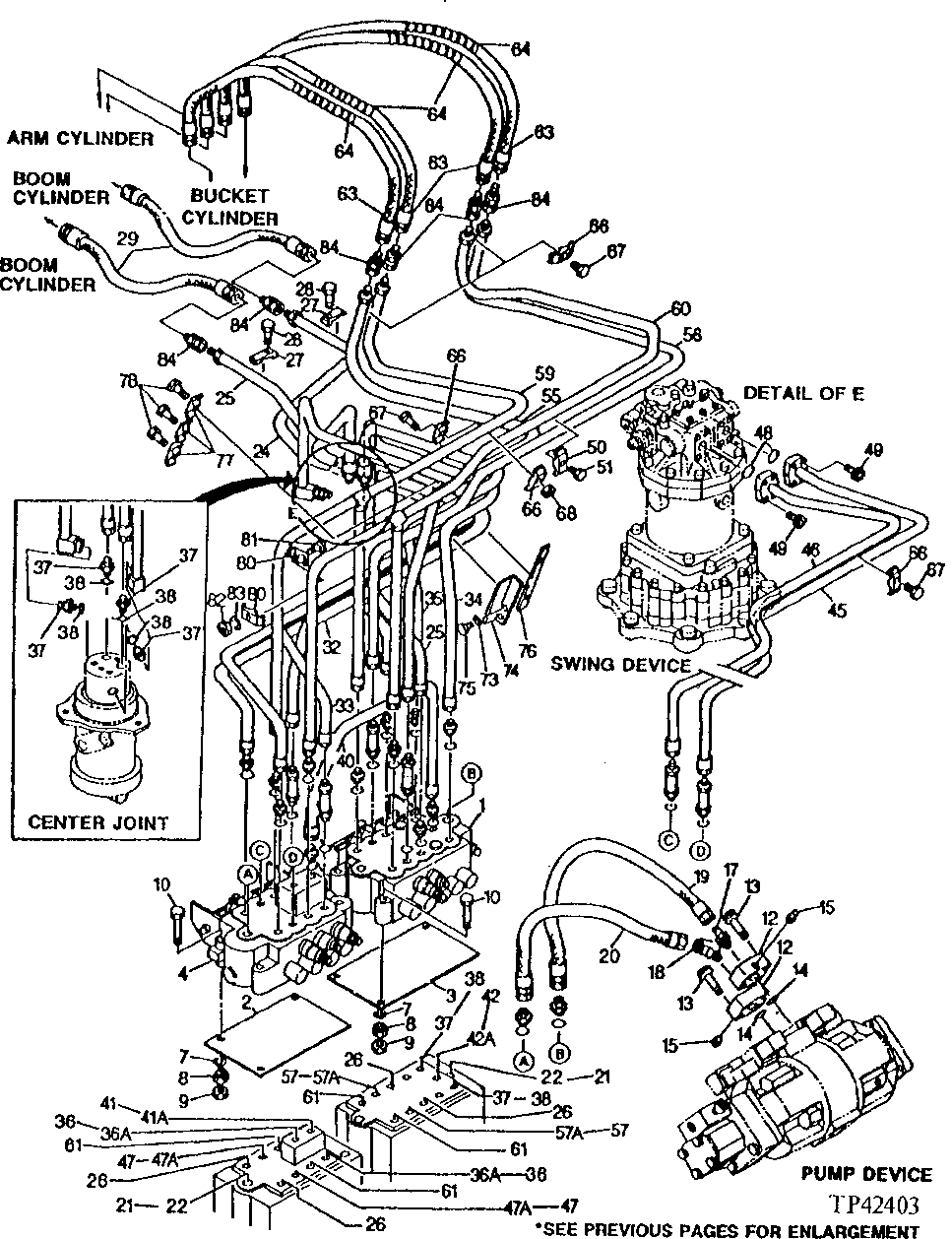

Запчасти John Deere 0 30 - HYDRAULIC FUNCTION VALVE HOSES AND LINES 2160 - MAIN HYDRAULIC SYSTEM 21

50

4053593

CLAMP

(SUB FOR TH100969)

1шт.

51

19M7572

CAP SCREW

M10 X 45

1шт.

55

7015363

OIL LINE

(SUB FOR TH106193)

1шт.

56

7015361

OIL LINE

(SUB FOR TH106191)

1шт.

57

4139971

ADAPTER FITTING

(SUB FOR TH106043)

2шт.

57A

4506418

O-RING

(SUB FOR TH100061) (SUB FOR U46489)

1шт.

59

7015364

OIL LINE

(SUB FOR TH106194)

1шт.

60

7015362

OIL LINE

(SUB FOR TH106192)

1шт.

61

X8F3P4S

ADAPTER FITTING

(SUB FOR TH100960 OR 94-1303) (SUB FOR TH101294, ALONG WITH U46489)

4шт.

4506418

O-RING

(SUB FOR U46489)

4шт.

63

4190225

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH106138)

4шт.

64

HOSE GUARD

(MAKE FROM AT138222 BULK MATERIAL, CUT TO LENGTH)

4шт.

66

4053593

CLAMP

(SUB FOR TH100969)

5шт.

67

19M7572

CAP SCREW

M10 X 45

4шт.

68

14M7274

NUT

M10

1шт.

73

24M7047

WASHER

(SUB FOR TH100967)

2шт.

74

9726404

ANGLE

(SUB FOR TH106475)

1шт.

75

19M8011

CAP SCREW

M12 X 30

2шт.

76

4169884

STRAP

(SUB FOR TH106090)

1шт.

77

4053593

CLAMP

(SUB FOR TH100969)

3шт.

78

19M7572

CAP SCREW

M10 X 45

3шт.

80

4053593

CLAMP

(SUB FOR TH100969)

2шт.

81

19M7572

CAP SCREW

M10 X 45

1шт.

82

14M7274

NUT

M10

1шт.

83

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

1шт.

84

TH106158

ADAPTER FITTING

6шт.
