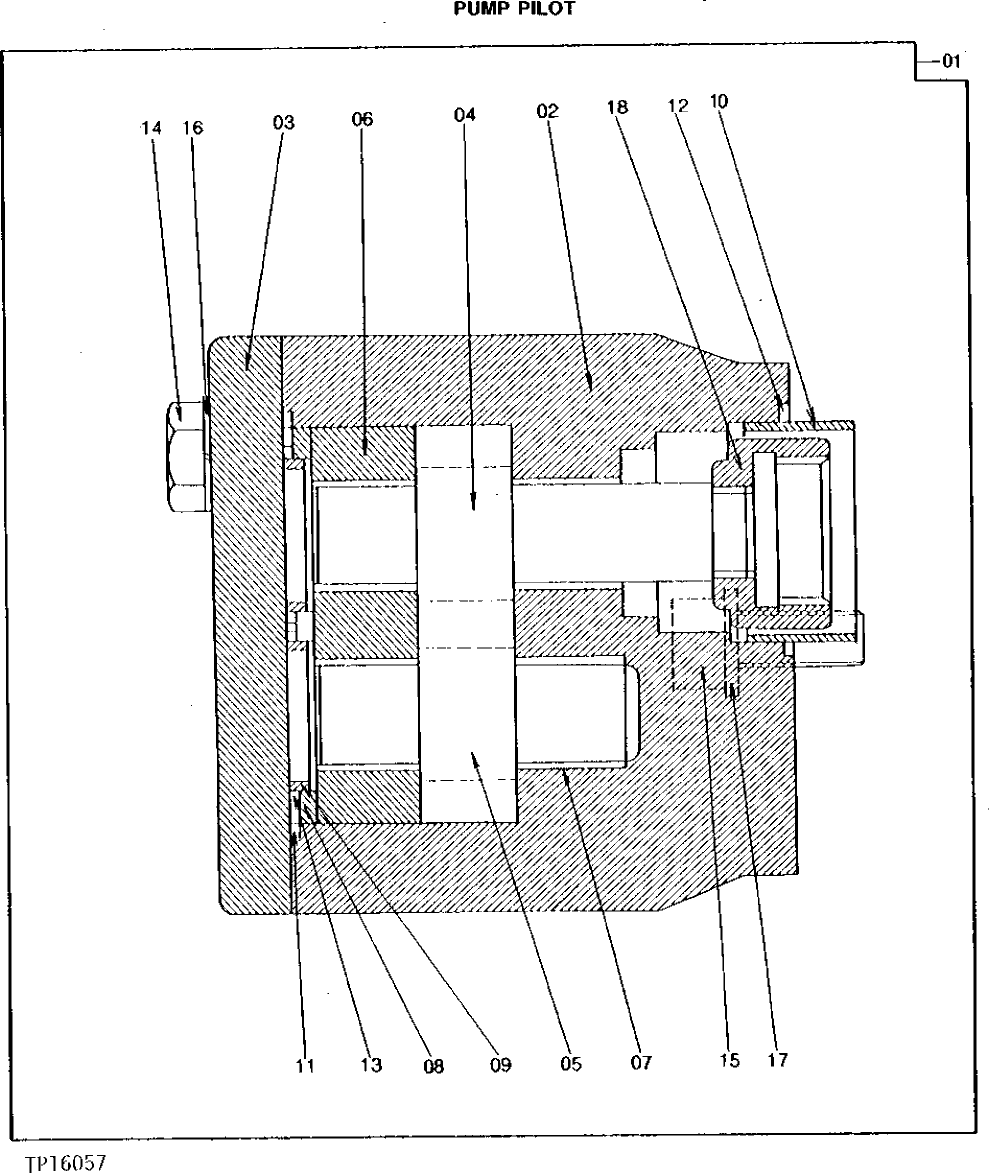

Запчасти John Deere 0 20 - PILOT PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

1

4187888

PUMP

(SUB FOR TH106123)

1шт.

2

HOUSING

(SUB TH106123)

1шт.

3

COVER

( TH106819 NO LONGER AVAILABLE)

1шт.

4

GEAR

(SUB TH106123)

1шт.

5

GEAR

(SUB TH106123)

1шт.

6

PLATE

(SUB TH106123)

1шт.

7

SHEET

(SUB TH106123)

2шт.

8

0295002

PLATE

(SUB FOR TH106820)

1шт.

9

0295003

GUIDE

(SUB FOR TH106821)

2шт.

10

TH105805

BUSHING

1шт.

11

0295004

RING

(SUB FOR TH105860)

1шт.

12

0295005

O-RING

(SUB FOR TH105861)

1шт.

13

0295006

O-RING

(SUB FOR TH105862)

2шт.

14

0284310

CAP SCREW

(SUB FOR TH105807)

4шт.

15

19M8533

SCREW

M10 X 25, (SUB FOR TH105863)

2шт.

16

12M7066

LOCK WASHER

10 MM, (SUB FOR TH105808)

4шт.

17

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH105864)

2шт.

18

COUPLING

( TH105804 NO LONGER AVAILABLE)

1шт.
