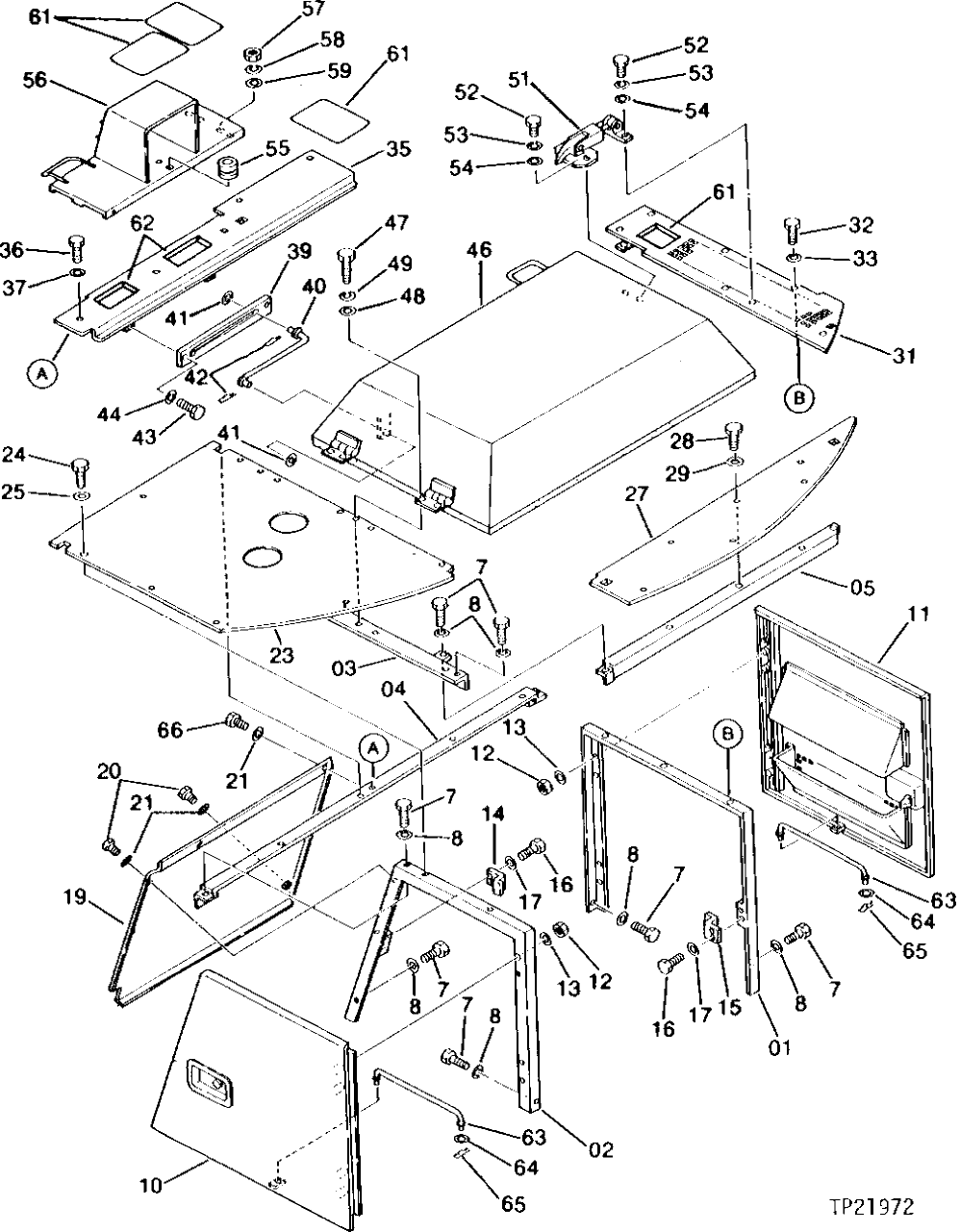

Запчасти John Deere 0 4 - HOOD AND COVERS 1910 - SHEET METAL AND STYLING 19

1

8036122

SUPPORT

(SUB FOR TH106242)

1шт.

2

8032022

SUPPORT

(SUB FOR TH106222)

1шт.

3

8036123

ANGLE

(SUB FOR TH106243)

1шт.

4

8036124

SUPPORT

(SUB FOR TH106244)

1шт.

5

8036125

SUPPORT

(SUB FOR TH106245)

1шт.

7

19M7872

CAP SCREW

M12 X 25

10шт.

8

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

10шт.

10

7015343

DOOR

(SUB FOR TH106190)

1шт.

11

7017148

DOOR

(SUB FOR TH106201)

1шт.

12

14M7275

NUT

M12

8шт.

13

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

8шт.

14

4170963

STOP

(SUB FOR TH106095)

1шт.

15

4122801

STOP

(SUB FOR TH101242)

1шт.

16

19M7872

CAP SCREW

M12 X 25

4шт.

17

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

4шт.

19

7013641

COVER

(SUB FOR TH106184)

1шт.

20

19M7872

CAP SCREW

M12 X 25

5шт.

21

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

6шт.

23

7017149

COVER

(SUB FOR TH106202)

1шт.

24

19M7872

CAP SCREW

M12 X 25

8шт.

25

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

8шт.

27

3035896

COVER

(SUB FOR TH105929)

1шт.

28

19M7872

CAP SCREW

M12 X 25

7шт.

29

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

7шт.

31

8036127

COVER

(SUB FOR TH106247)

1шт.

32

19M7872

CAP SCREW

M12 X 25

5шт.

33

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

5шт.

35

8036126

COVER

(SUB FOR TH106246)

1шт.

36

19M7872

CAP SCREW

M12 X 25

5шт.

37

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

5шт.

39

4159492

PLATE

(SUB FOR TH106080)

1шт.

40

9720341

BRACE

(SUB FOR TH106282)

1шт.

41

24H1748

WASHER

1/2" X 1-1/4" X 0.105", (SUB FOR TH100967)

1шт.

24M7047

WASHER

13 X 24 X 2.500 MM, HOOD END OF ROD

1шт.

42

R50647

SPRING LOCKING PIN

(SUB FOR TH101244)

2шт.

43

19M7938

CAP SCREW

M10 X 20

2шт.

44

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

46

6007926

COVER

(SUB FOR TH106176)

1шт.

47

19M8011

CAP SCREW

M12 X 30

4шт.

48

24M7047

WASHER

13 X 24 X 2.500 MM, (SUB FOR TH100967)

4шт.

49

12H301

LOCK WASHER

1/2"

4шт.

51

CATCH

(SUB TH102246, TH102247 AND 21M7397)

1шт.

52

19M7881

SCREW

M8 X 20

4шт.

53

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

54

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

55

445100

GROMMET

(SUB FOR TH106653)

1шт.

56

7012385

COVER

(SUB FOR TH106178)

1шт.

57

14M7272

NUT

M6

4шт.

58

12M7006

LOCK WASHER

6 MM

4шт.

59

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

61

4121128

MAT

(SUB FOR TH106654)

6шт.

62

4191452

MAT

(SUB FOR TH106655)

2шт.

63

9707254

ROD

(SUB FOR TH101245)

2шт.

64

24M7047

WASHER

(SUB FOR TH100967)

2шт.

65

R50647

SPRING LOCKING PIN

(SUB FOR TH101244)

2шт.

66

19M8017

CAP SCREW

1шт.

67

4158653

KEY

(SUB FOR TH101605) ENGINE SERVICE DOOR

1шт.
