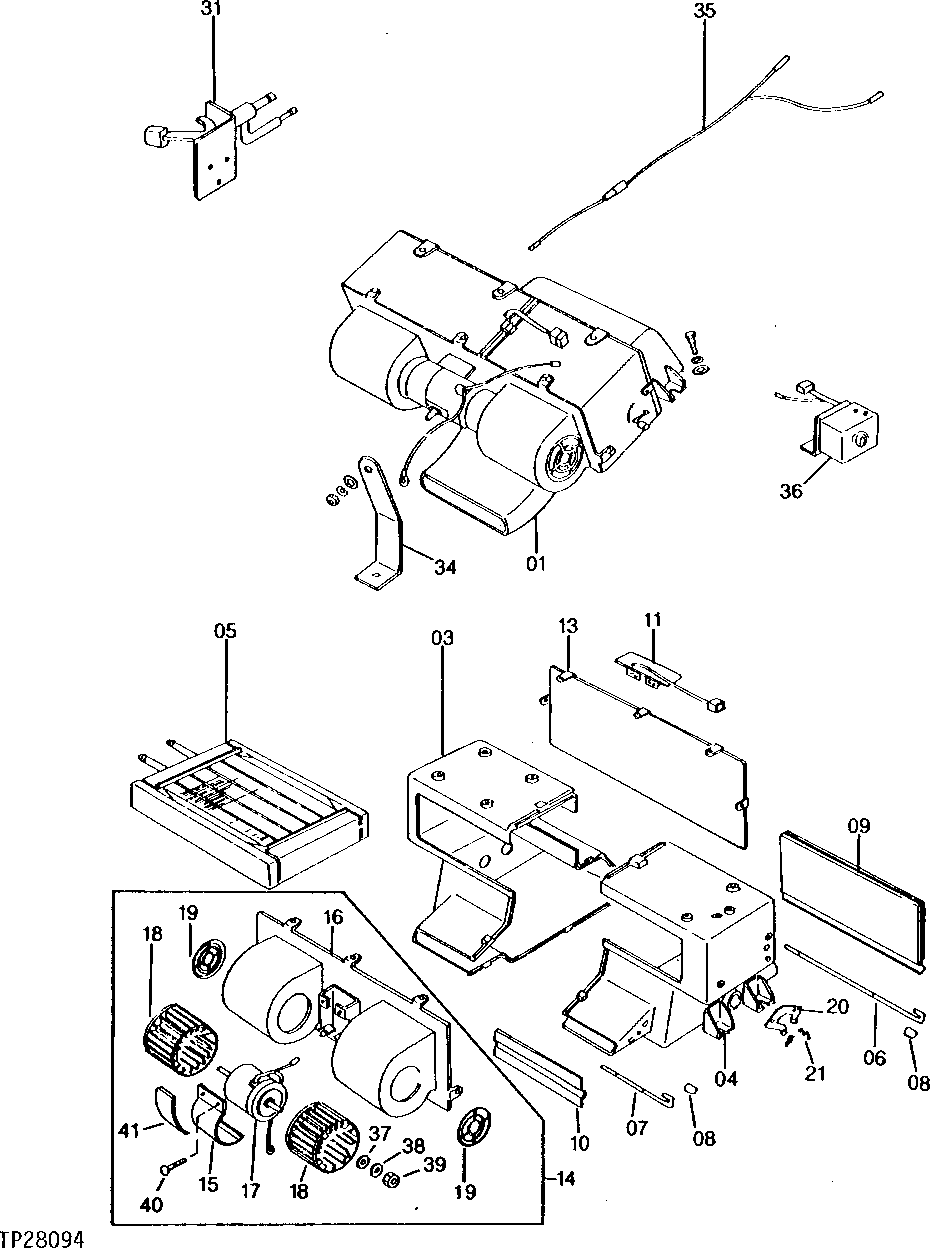

Запчасти John Deere 0 4 - HEATER 1830 - OPERATORS STATION 18

1

4173750

HEATER

(SUB FOR TH101675) (SUB FOR TH105571) (13,500 BTU)

1шт.

3

CASE

(SUB TH105571)

1шт.

4

CASE

(SUB TH105571)

1шт.

5

CORE

(SUB FOR TH101676) (USE TH110251 IF AVAILABLE)

1шт.

6

SHAFT

( TH101677 NO LONGER AVAILABLE)

1шт.

7

SHAFT

( TH101678 NO LONGER AVAILABLE)

1шт.

8

KNOB

( TH101679 NO LONGER AVAILABLE)

2шт.

9

TORSIONAL DAMPER

( TH101680 NO LONGER AVAILABLE)

1шт.

10

TORSIONAL DAMPER

( TH101681 NO LONGER AVAILABLE)

1шт.

11

0228114

RESISTOR

(SUB FOR TH101682)

1шт.

13

COVER

( TH101683 NO LONGER AVAILABLE)

1шт.

14

CASE

( TH101684 NO LONGER AVAILABLE)

1шт.

15

COVER

( TH101685 NO LONGER AVAILABLE)

1шт.

16

HOUSING

1шт.

17

0228120

BLOWER MOTOR

(SUB FOR TH101687)

1шт.

18

0228121

FAN

(SUB FOR TH101688)

2шт.

19

0228122

GRILLE

(SUB FOR TH101689)

2шт.

20

GUIDE

( TH101690 NO LONGER AVAILABLE)

1шт.

21

0228124

SPRING

(SUB FOR TH101691)

2шт.

31

4115856

VALVE

(SUB FOR TH101085) TEMPERATURE CONTROL

1шт.

34

4080636

BRACKET

(SUB FOR TH101086)

1шт.

35

0228125

WIRING HARNESS

(SUB FOR TH101692)

1шт.

36

4110100

SWITCH

(SUB FOR TH101087)

1шт.

37

0311502

WASHER

(SUB FOR TH108796)

2шт.

38

0311503

WASHER

(SUB FOR TH108797)

2шт.

39

14M7297

NUT

M5

2шт.

40

0311501

SCREW

(SUB FOR TH108795)

2шт.

41

CUSHION

( TH108800 NO LONGER AVAILABLE)

1шт.
