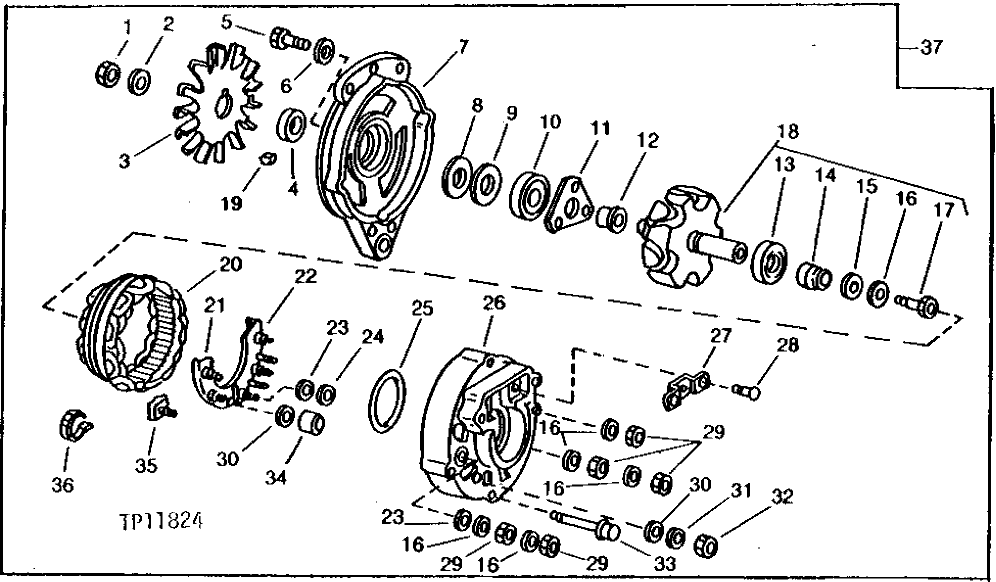

Запчасти John Deere 0 2 - ALTERNATOR (42-AMP) (MOTOROLA NO. 70D44811E01) 1672 - ELECTRICAL SYSTEM 16

1

14H866

NUT

5/8"

1шт.

2

12H294

LOCK WASHER

5/8"

1шт.

3

AR50231

FAN

1шт.

4

R47463

SPACER

1шт.

5

21H1299

SCREW

0.164" X 3/8"

3шт.

6

12H315

LOCK WASHER

0.164"

3шт.

7

HOUSING

( T37812 USE IF AVAILABLE)

1шт.

8

T46861

WASHER

1шт.

9

SHIM

( T51143 USE IF AVAILABLE)

1шт.

10

AR50228

BALL BEARING

1шт.

11

RETAINER

( T25346 USE IF AVAILABLE)

1шт.

12

R47462

SLEEVE

1шт.

13

JD9449

BALL BEARING

1шт.

14

RING

( AT27127 USE IF AVAILABLE)

1шт.

15

WASHER

( T51232 USE IF AVAILABLE)

1шт.

16

12H246

LOCK WASHER

0.190"

6шт.

17

T17948

SCREW

(SUB FOR T29102)

1шт.

18

ROTOR

( AT49447 USE IF AVAILABLE)

1шт.

19

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

20

STATOR

( AT49448 USE IF AVAILABLE)

1шт.

21

DIODE

POSITIVE ( AT49451 USE IF AVAILABLE)

1шт.

22

DIODE

NEGATIVE ( AT49450 USE IF AVAILABLE)

1шт.

23

R15036

WASHER

2шт.

24

BUSHING

( T50863 USE IF AVAILABLE)

1шт.

25

RING

( T50860 USE IF AVAILABLE)

1шт.

26

HOUSING

( T50859 USE IF AVAILABLE)

1шт.

27

AT27128

HOLDER

1шт.

28

37H120

SCREW

0.164" X 1/2"

4шт.

29

14H778

NUT

0.190"

5шт.

30

WASHER

( T50861 USE IF AVAILABLE)

2шт.

31

12H302

LOCK WASHER

1/4"

1шт.

32

14H786

NUT

1/4"

1шт.

33

R47460

BOLT

4шт.

34

BUSHING

( T50862 USE IF AVAILABLE)

1шт.

35

DIODE

( AT49449 USE IF AVAILABLE)

1шт.

36

R44302

TIE BAND

2шт.

37

ALTERNATOR

( AT44644 NO LONGER AVAILABLE)

1шт.

TY26036

ALTERNATOR

(SUB FOR TY6606) LESS PULLEY, WITH VOLTAGE REGULATOR (REMANUFACTURED)

1шт.

SE501359

ALTERNATOR

(REMANUFACTURED FOR TY26036)

1шт.
