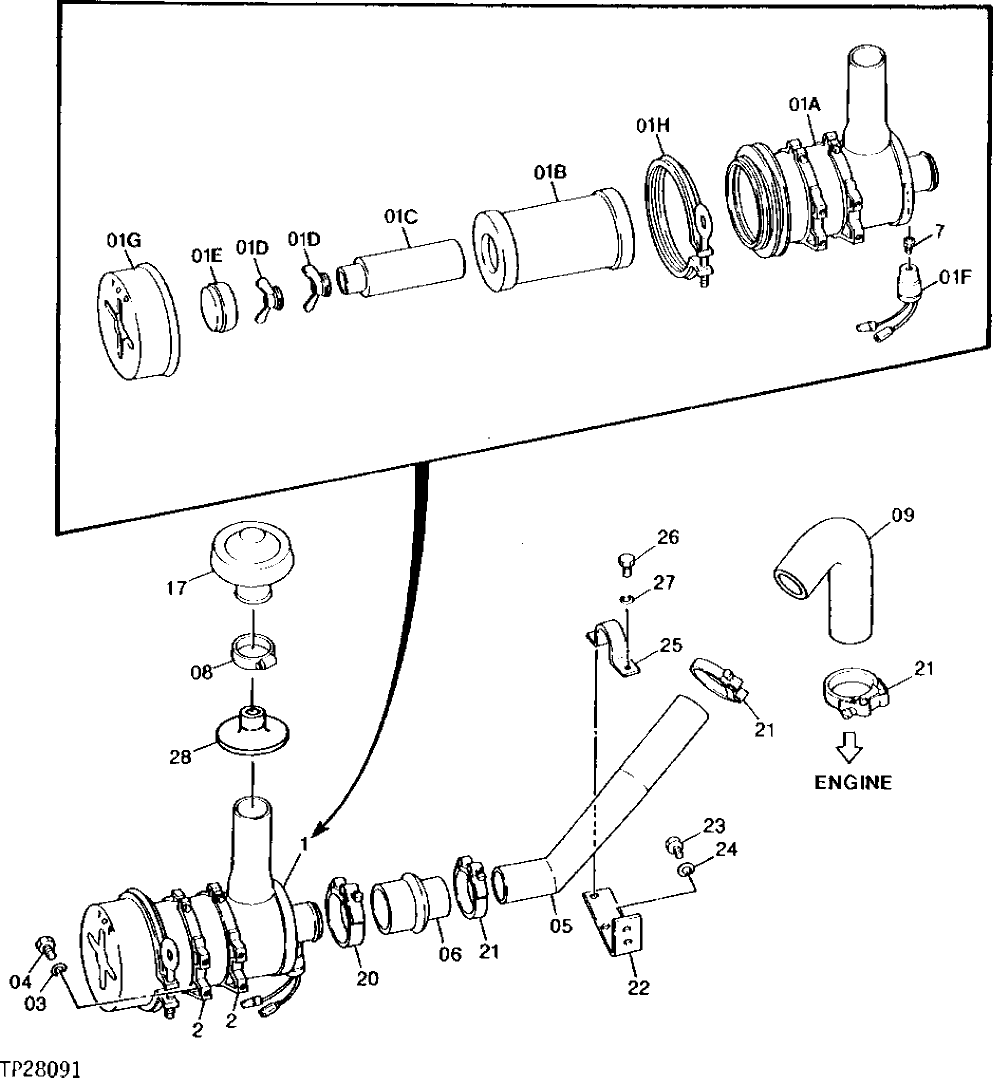

Запчасти John Deere 0 2 - AIR CLEANER 520 - ENGINE AUXILIARY SYSTEM 5

1

AIR CLEANER

( AT130712 NO LONGER AVAILABLE)

1шт.

1A

4189197

HOUSING

(SUB FOR TH106444)

1шт.

1B

CH18287

FILTER ELEMENT

(SUB FOR TH106445)

1шт.

1C

CH18289

FILTER ELEMENT

(SUB FOR TH106446)

1шт.

1D

AH20849

WING NUT

(SUB FOR TH106447)

2шт.

1E

AH20858

ISOLATOR

(SUB FOR TH106448)

1шт.

1F

4224238

INDICATOR

(SUB FOR TH100933 OR TH108915) (SUB FOR AT131922)

1шт.

1G

AH20852

HOUSING

(SUB FOR TH106449)

1шт.

1H

AH20855

CLAMP

(SUB FOR AR27854)

1шт.

2

AN31656

CLAMP

(SUB FOR TH106452)

2шт.

3

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

4

19M7932

CAP SCREW

M8 X 16

4шт.

5

8036966

LINE

(SUB FOR TH106453)

1шт.

6

4215718

HOSE

(SUB FOR TH106059) (SUB FOR AT130672)

1шт.

7

FITTING

(NO LONGER REQUIRED)

1шт.

8

TY22473

CLAMP

(SUB FOR AR21841, THIS APPLICATION) (SUB FOR AR62936)

1шт.

9

4S00177

SUCTION HOSE

(SUB FOR TH106454) (SUB FOR TH108042)

1шт.

17

TH106455

CAP

1шт.

20

AT43291

HOSE CLAMP

(SUB FOR TH106163)

1шт.

21

AT39141

HOSE CLAMP

(SUB FOR TH106162)

3шт.

22

4188632

ANGLE

(SUB FOR TH106456)

1шт.

23

19M7872

CAP SCREW

M12 X 25

2шт.

24

12H301

LOCK WASHER

1/2"

2шт.

25

4037694

CLAMP

(SUB FOR TH106457)

1шт.

26

19M7932

CAP SCREW

M8 X 16

2шт.

27

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

28

4338147

COVER

(SUB FOR TH107988) (SUB FOR AT165857) (WITHOUT BLADE)

1шт.

4338147

COVER

(SUB FOR TH107988) (SUB FOR AT165857) (WITH BLADE)

1шт.
