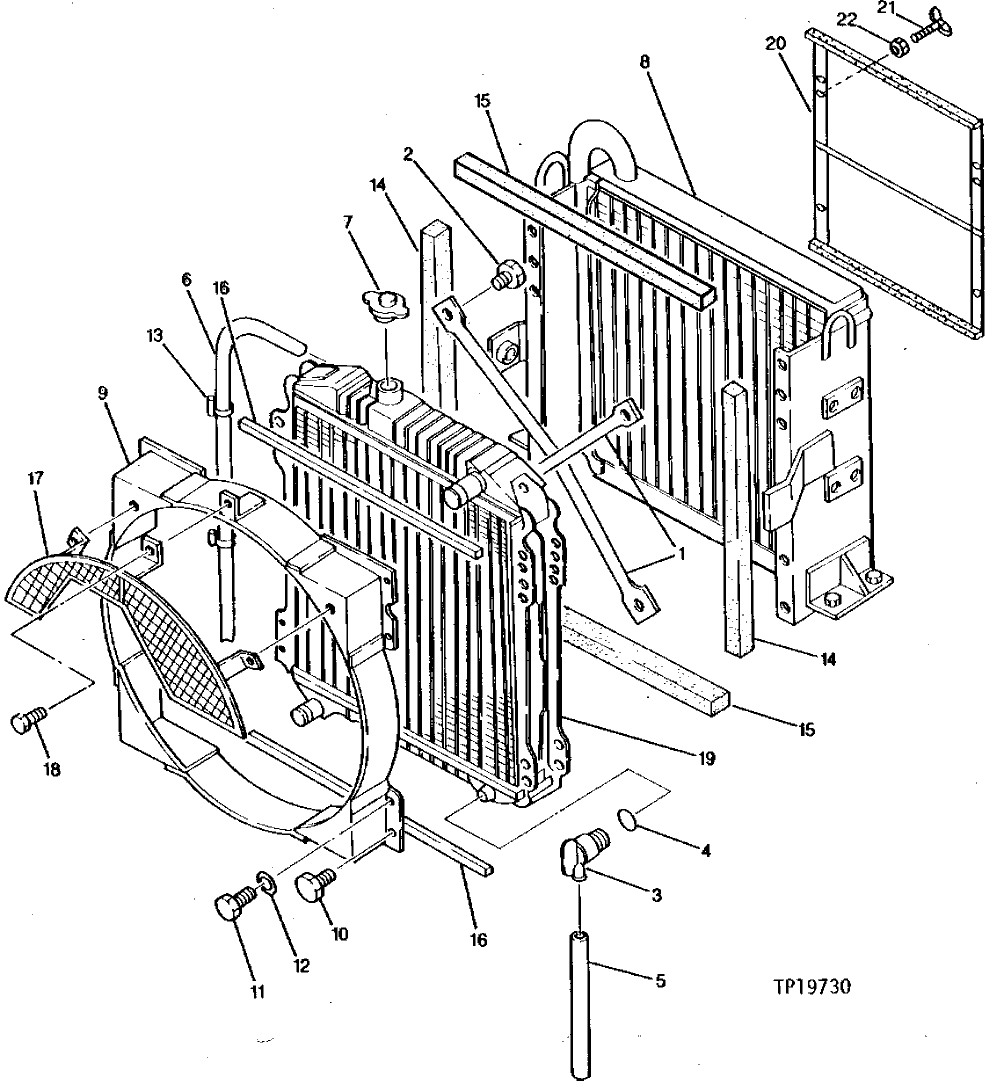

Запчасти John Deere 0 8 - RADIATOR 510 - ENGINE AUXILIARY SYSTEM 5

1

4193027

SUPPORT

(SUB FOR TH106430)

2шт.

2

19M8425

CAP SCREW

M6 X 16

4шт.

3

4193028

DRAIN PLUG

(SUB FOR TH106431)

1шт.

4

4193029

PACKING

(SUB FOR TH106432)

1шт.

5

HOSE

( TH106433 NO LONGER AVAILABLE) (MAKE FROM 1/2 INCH VINYL TUBING CUT TO LENGTH)

1шт.

6

HOSE

( TH106434 NO LONGER AVAILABLE) (MAKE FROM 1/4 INCH I.D. VINYL TUBING CUT TO LENGTH)

1шт.

7

AT169085

FILLER CAP

(SUB FOR TH106435 OR TH111864)

1шт.

8

4209228

OIL COOLER

(SUB FOR TH106436) (SUB FOR TH108156)

1шт.

9

4193034

SHROUD

(SUB FOR TH106437)

1шт.

10

19M7881

SCREW

M8 X 20

4шт.

11

19M7923

CAP SCREW

M6 X 12

6шт.

12

12M7006

LOCK WASHER

6 MM

6шт.

13

4185811

CLIP

(SUB FOR TH106109)

2шт.

14

4193036

ISOLATOR

(SUB FOR TH106438)

2шт.

15

4185809

PACKING

(SUB FOR TH106439) (SUB FOR TH106107)

2шт.

16

4185808

PACKING

(SUB FOR TH106440) (SUB FOR TH106106)

2шт.

17

4193039

SHIELD

(SUB FOR TH106441)

1шт.

18

19M7932

CAP SCREW

M8 X 16

3шт.

19

4193026

RADIATOR

(SUB FOR TH106429)

1шт.

20

4208734

SCREEN

(SUB FOR TH108157)

1шт.

21

21M1689

WING SCREW

M6 X 12

4шт.

22

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH108159)

4шт.
