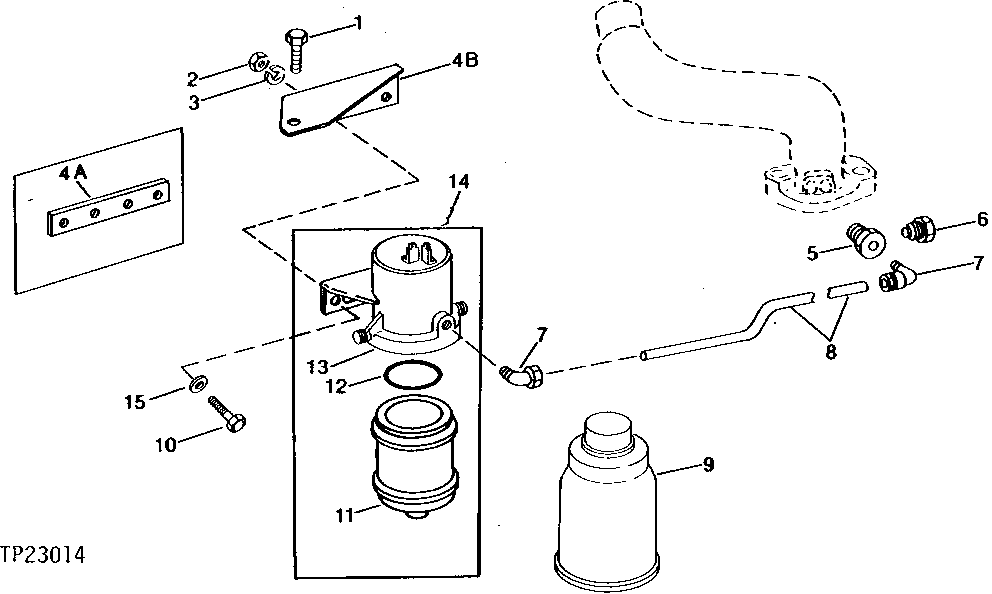

Запчасти John Deere 0 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEM 5

1

19H3385

CAP SCREW

1/2" X 1-1/8"

1шт.

2

14H785

NUT

5/16"

2шт.

3

12H303

LOCK WASHER

5/16"

2шт.

4A

L32515

BRACKET

(SUB R82427, THIS APPLICATION) (ALSO ORDER (2) 19H3217 AND (2) 28H3381)

1шт.

4B

R82427

STRAP

(SUB FOR L32515)

1шт.

5

R47160

NOZZLE HOLDER

1шт.

6

T155858

NOZZLE

(SUB FOR R28583)

1шт.

7

RE21790

ELBOW FITTING

(SUB FOR AT25266)

2шт.

8

HOSE

(MAKE FROM T78593 BULK MATERIAL, CUT TO LENGTH)

1шт.

9

RE33636

STARTING FLUID

(SUB FOR AR27814, RE24561 AND RE30174)

1шт.

10

19H2127

CAP SCREW

5/16" X 7/8"

2шт.

19H3217

CAP SCREW

3/8" X 1-3/4", (USE WITH R82427)

2шт.

11

R73498

CONTAINER

1шт.

12

T13119

O-RING

1шт.

13

SOLENOID

(SUB RE48311)

1шт.

14

RE48311

STARTING AID

(SUB FOR AT105778 OR AT125915)

1шт.

15

28H3381

SPACER

0.493" X 0.675" X 5/8", (USE WITH R82427)

2шт.
