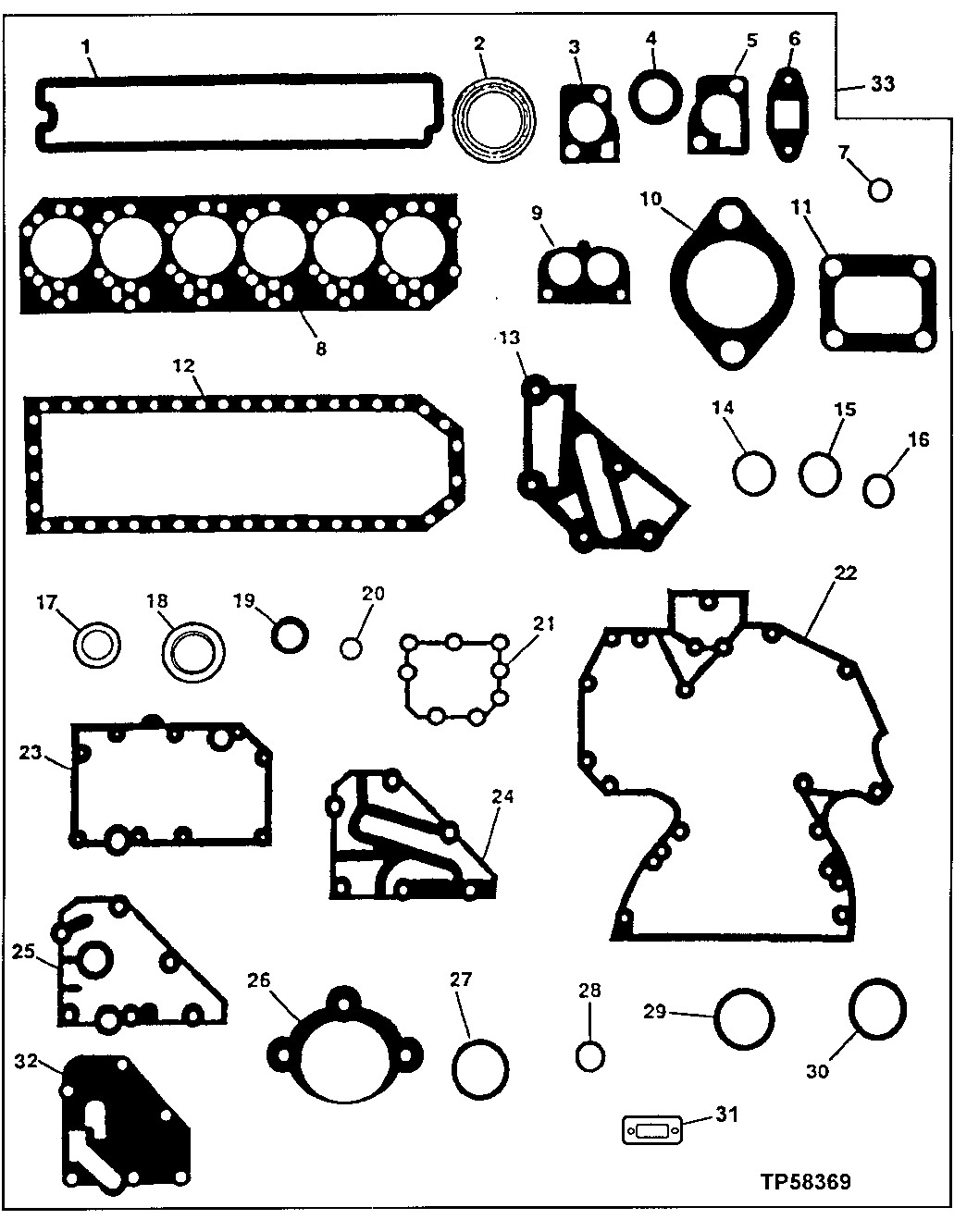

Запчасти John Deere 90ELC 97 - Engine Major Overhaul Gasket Set and Engine Overhaul Kit ( - 704568) 0452 Gasket Replacement Kits 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R123543

Gasket

ROCKER ARM COVER

1шт.

RE520540

Gasket Kit

(HIGH TEMPERATURE GASKET)

1шт.

2

R90658

Gasket

EXHAUST MANIFOLD

6шт.

3

R502814

Gasket

(SUB FOR R121416 AND R 135896)THERMOSTAT COVER

1шт.

4

R123226

Seal

WATER BY-PASS TUBE

2шт.

5

R123345

Gasket

THERMOSTAT HOUSING

1шт.

6

R123570

Gasket

TURBOCHARGER OIL OUTLET TUBE

1шт.

7

R123575

O-Ring

ROCKER ARM COVER HOLD DOWN STUD

4шт.

8

R116516

Engine Cylinder Head Gasket

1шт.

9

R501373

Gasket

(SUB FOR R54638)THERMOSTAT COVER

1шт.

10

R81275

Gasket

AIR INLET

1шт.

11

R123572

Gasket

TURBOCHARGER TO EXHAUST MANIFOLD

1шт.

12

R123354

Gasket

ENGINE OIL PAN

1шт.

13

R501428

Gasket

COOLANT PASSAGE ADAPTER (SUB FOR R123502)

1шт.

14

R75892

O-Ring

OIL PUMP TUBE CONNECTOR

1шт.

15

R97185

O-Ring

OIL PUMP OUTLET TUBE TO COVER

1шт.

16

R61871

O-Ring

OIL PUMP INTAKE TUBE

1шт.

17

A4827R

Washer

OIL PRESSURE REGULATOR PLUG

1шт.

18

RE44574

Seal

REAR OIL SEAL

1шт.

19

RE516340

Seal Kit

FRONT OIL SEAL (SUB FOR RE59810 ) (MARKED RE52346 OR RE505515)

1шт.

20

R123273

O-Ring

FUEL TRANSFER PUMP

1шт.

21

R123417

Gasket

WATER PUMP

1шт.

22

R136516

Gasket

TIMING GEAR COVER (SUB FOR R134534)

1шт.

R136515

Gasket

(SUB FOR R134533)TIMING GEAR COVER F OR AUXILIARY DRIVE (NOT ILLUSTRATED)

1шт.

23

R123501

Gasket

OIL COOLER HOUSING

1шт.

24

R502864

Gasket

REMOTE OIL FILTER ADAPTER (SUB FOR R123504)

1шт.

25

R123525

Gasket

OIL FILTER HEADER

1шт.

26

R53108

Gasket

STARTING MOTOR

1шт.

27

R72328

O-Ring

REMOTE OIL FILTER TUBES

4шт.

28

R89944

O-Ring

WATER PUMP INLET

1шт.

29

R61105

O-Ring

CONNECTOR TUBE TO TIMING GEAR COVER

2шт.

30

T122075

O-Ring

OIL COOLER TO HOUSING

2шт.

31

R136495

Gasket

OIL FILL COVER

2шт.

32

R500374

Gasket

OIL FILTER HEADER

1шт.

33

RE501456

Gasket Kit

(SUB FOR RE66087)ENGINE MAJOR OVERHAUL

1шт.

RE515749

Engine Overhaul Kit

(NOT ILLUSTRATED) (SUB FOR RE66097 (IN CLUDES ENGINE MAJOR OVERHAUL GASKET SET , ENGINE CONNECTING ROD BEARINGS, ENGIN E MAIN BEARINGS, AND PISTON AND CYLINDE R LINER KITS)(ORDER ONE KIT PER ENGINE) )

1шт.
