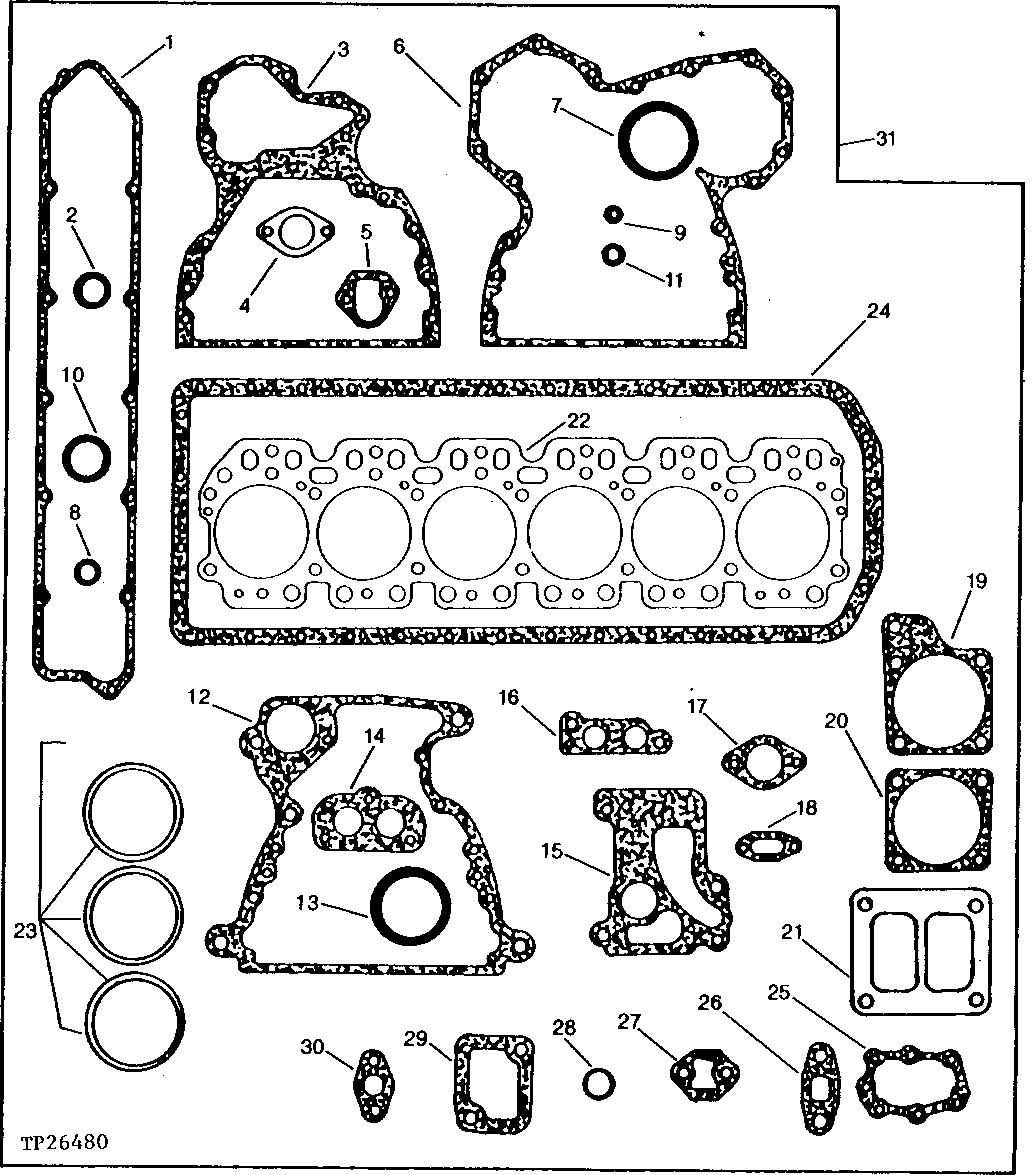

Запчасти John Deere 90ELC 96 - ENGINE OVERHAUL GASKET SET ( - 704568) 0452 Gasket Replacement Kits 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R75728

Gasket

ROCKER ARM COVER GASKET

1шт.

2

R80632

O-Ring

OIL PUMP OUTLET AND CONNECTOR TUBE

2шт.

3

R131794

Gasket

(SUB FOR R90648)CYLINDER BLOCK PLATE

1шт.

4

R90658

Gasket

EXHAUST MANIFOLD

6шт.

5

R125066

Gasket

(SUB FOR R97773)INJECTION PUMP GEAR COVER

1шт.

6

R126513

Gasket

(SUB FOR R97454, R119269 O R R121314)TIMING GEAR COVER

1шт.

7

R56193

O-Ring

OIL COOLER HOUSING, OUTER

1шт.

8

R56461

O-Ring

WATER BYPASS TUBE

2шт.

9

R26286

O-Ring

CONNECTOR TO INJECTION PUMP

1шт.

10

U13639

O-Ring

COOLANT HEATER PLUG

1шт.

11

R56463

O-Ring

VENT TUBE

1шт.

12

R97351

Gasket

FLYWHEEL HOUSING

1шт.

13

R56192

O-Ring

OIL COOLER HOUSING, INNER

1шт.

14

R501373

Gasket

(SUB FOR R54638)THERMOSTAT COVER

1шт.

15

R98489

Gasket

OIL COOLER TO CLINDER BLOCK

1шт.

16

R98488

Gasket

OIL COOLER

1шт.

17

R81275

Gasket

AIR INLET

3шт.

18

R97352

Gasket

OIL FILLER INLET COVER

1шт.

19

R98485

Gasket

OIL COOLER LOWER, COVER

1шт.

20

R98484

Gasket

OIL COOLER

1шт.

R98471

Gasket

OIL COOLER UPPER COVER

1шт.

21

R123572

Gasket

TURBOCHARGER (SUB FOR R 89879, THIS APPLICATION)

1шт.

22

R114157

Engine Cylinder Head Gasket

CYLINDER HEAD (SUB FOR R92426)

1шт.

23

AR65507

O-Ring Kit

CYLINDER LINER PACKING

6шт.

24

R97344

Gasket

OIL PAN

1шт.

25

T20273

Gasket

TIMING GEAR COVER

1шт.

26

R105346

Gasket

TURBO CHARGER DRAIN LINE

1шт.

27

R520618

Gasket

(SUB FOR R97350)FUEL LINE

1шт.

28

R61871

O-Ring

OIL PUMP INTAKE

1шт.

29

R54641

Gasket

WATER OUTLET HOUSING

1шт.

30

R97348

Gasket

TURBO CHARGER TO OIL INLET ADAPTER

1шт.

31

RE501569

Gasket Kit

(SUB FOR RE38556)

1шт.
