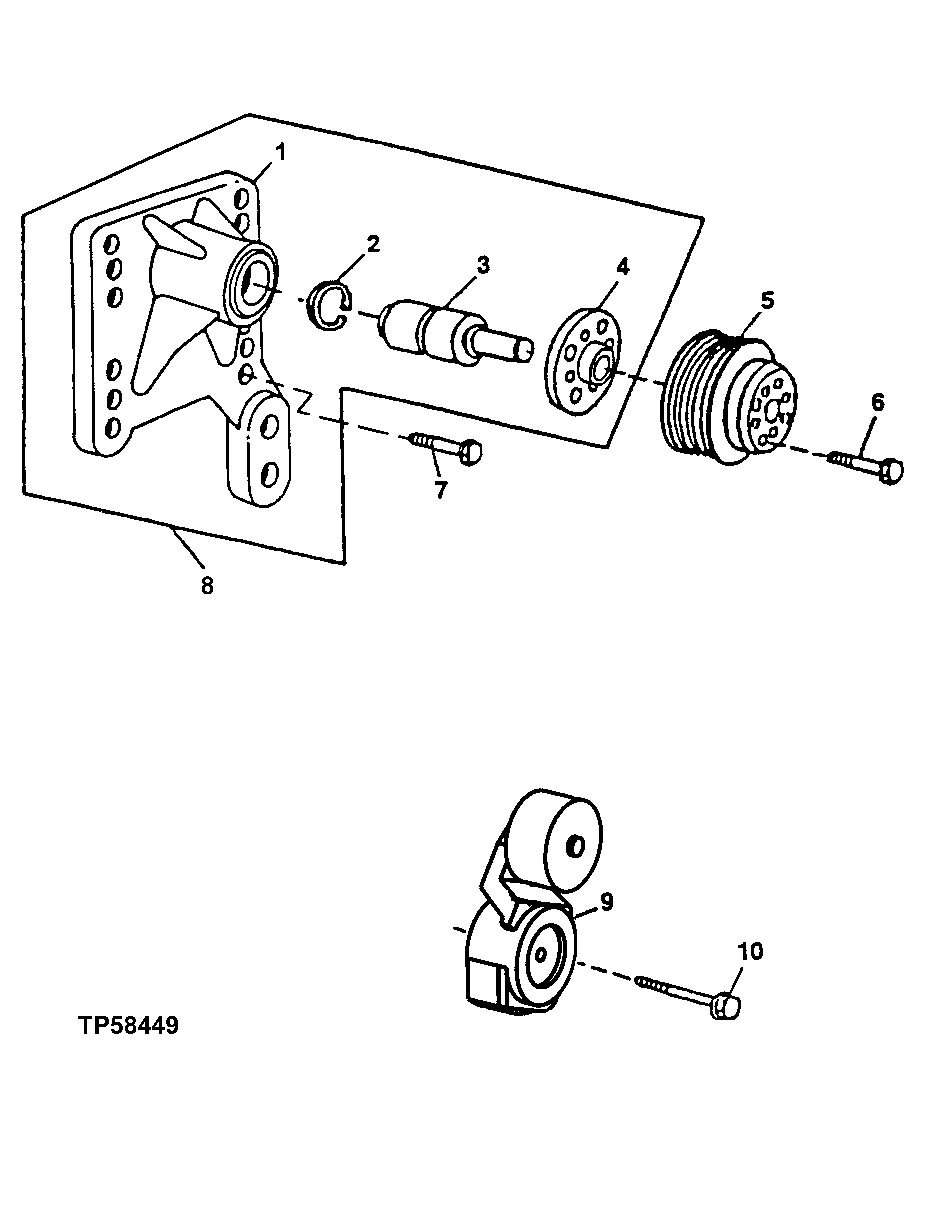

Запчасти John Deere 90ELC 88 - FAN DRIVE,PULLEYS AND BELT TENSIONERS (704559 - ) 0429 FAN DRIVE 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

Bearing Housing W/ Bearing

(MARKED R134775)

1шт.

2

E1343FN

Snap Ring

1шт.

3

Shaft

( RE69292 NO LONGER AVAILABLE)

1шт.

4

RE500538

Fan

(MARKED R123284)

1шт.

5

R128662

Pulley

1шт.

6

19M7784

Screw

M10 X 20

4шт.

7

19M7835

Screw

M10 X 35

4шт.

8

RE503664

Support

(MARKED R502014 ) (SUB FOR RE70177)

1шт.

9

RE70536

Belt Tensioner

1шт.

10

19M8131

Screw

M10 X 70

1шт.
