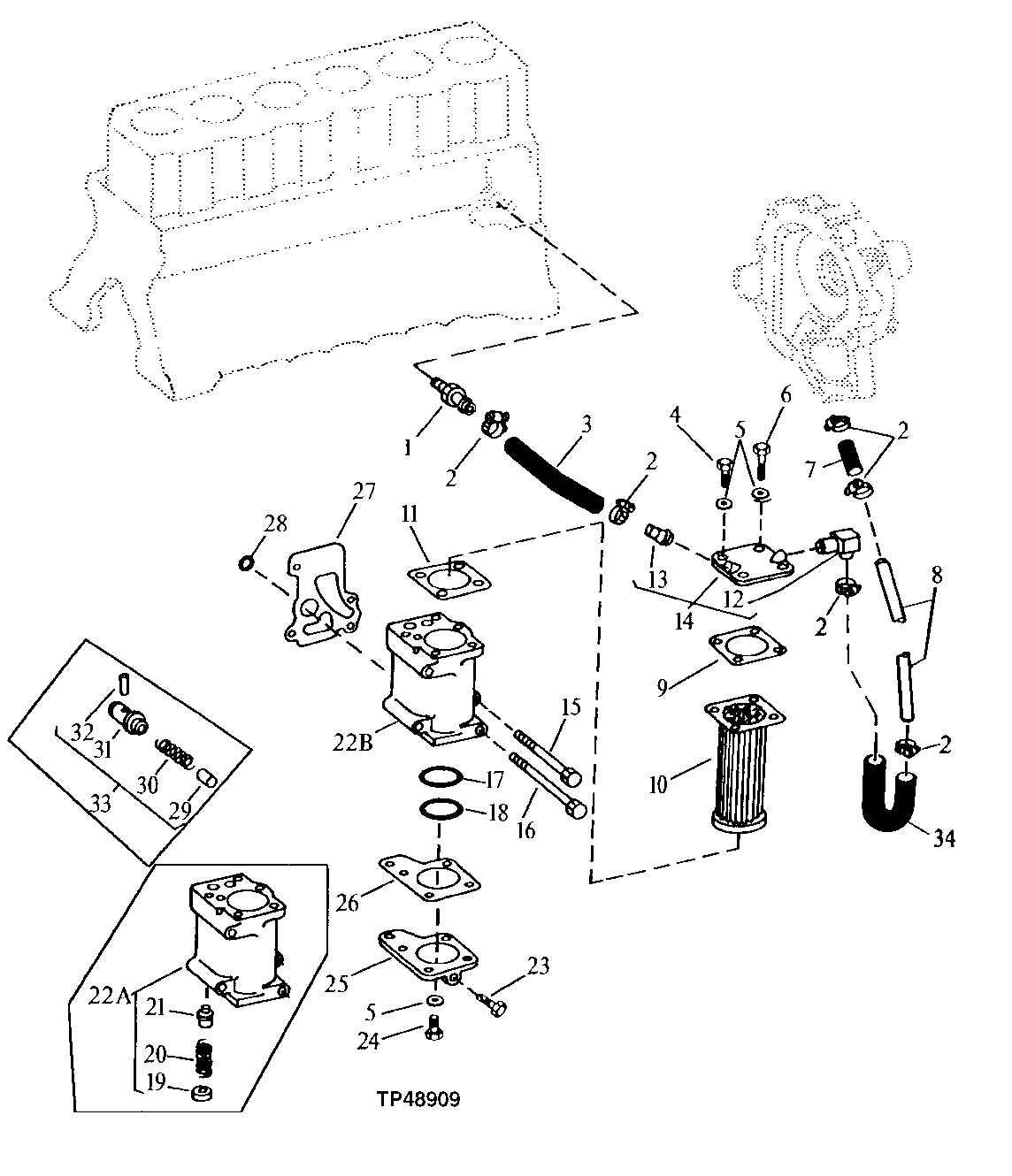

Запчасти John Deere 90ELC 75 - Engine Oil Cooler ( - 704568) 0419 OIL COOLER 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R39503

Fitting

1шт.

2

AR21839

Clamp

6шт.

3

R54826

Hose

1шт.

4

19H3751

Screw

3/8" X 1-3/8"

3шт.

5

12H304

Lock Washer

3/8"

ARшт.

6

19H3065

Cap Screw

3/8" X 2"

1шт.

7

Hose

(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH)

2шт.

8

R106698

Tube

1шт.

9

R98471

Gasket

1шт.

10

RE31286

Oil Cooler

1шт.

11

R98484

Gasket

1шт.

12

AR26732

Elbow Fitting

1шт.

13

R34985

Line

1шт.

14

AR66406

Cover

(MARKED R56195)

1шт.

15

19H2104

Cap Screw

3/8" X 5"

2шт.

24H1304

Washer

13/32" X 23/32" X 0.120"

2шт.

16

19H2562

Cap Screw

3/8" X 5-3/4"

2шт.

17

R56192

O-Ring

1шт.

18

R56193

O-Ring

1шт.

19

Valve Seat

(SUB AR103164)

1шт.

20

Spring

(SUB AR103164)

1шт.

21

Valve

(SUB AR103164)

1шт.

22A

AR103164

Housing

(MARKED R76240)

1шт.

22B

R110562

Housing

1шт.

23

R42852

Pipe Plug

1шт.

24

19H3483

Cap Screw

3/8" X 1-1/8"

5шт.

25

R56197

Cover

1шт.

26

R98485

Gasket

1шт.

27

R98489

Gasket

1шт.

28

R61871

O-Ring

1шт.

29

Valve

(SUB AR63351)

1шт.

30

R46625

Spring

1шт.

31

Housing

(SUB AR63351)

1шт.

32

34H184

Spring Pin

1/8" X 1-1/8"

1шт.

33

AR63351

Valve

1шт.

34

R53046

Hose

1шт.
