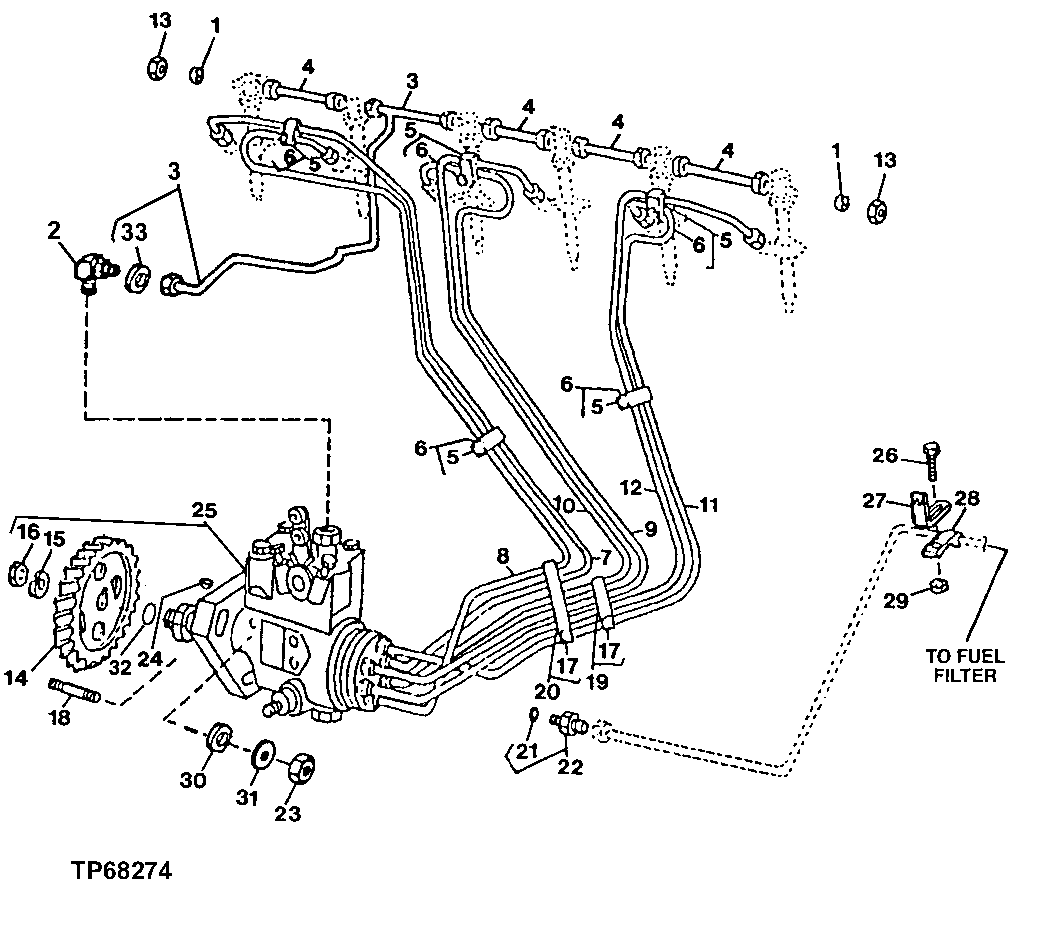

Запчасти John Deere 90ELC 61 - Fuel Injection System - 24 Volt (704569 - ) 0413 Fuel Injection System 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

AR85519

Plug

2шт.

2

R67364

Elbow Fitting

1шт.

3

RE70848

Fuel Line

LEAK OFF

1шт.

4

RE68748

Tube

4шт.

R51936

Sealing Washer

8шт.

5

RE19797

Clamp

GREEN

5шт.

6

19M7300

Cap Screw

M6 X 10

5шт.

7

RE60055

Fuel Line

NO. 1

1шт.

8

RE60056

Fuel Line

NO. 2

1шт.

9

RE60057

Fuel Line

NO. 3

1шт.

10

RE60058

Fuel Line

NO. 4

1шт.

11

RE60059

Fuel Line

NO. 5

1шт.

12

RE60060

Fuel Line

NO. 6

1шт.

13

R123593

Tube Nut

LEAK OFF

2шт.

14

R132267

Gear

(60 TEETH)

1шт.

15

R132874

Washer

1шт.

16

R91360

Nut

1шт.

17

19M7300

Cap Screw

M6 X 10

3шт.

18

R116386

Stud

3шт.

19

RE19799

Clamp

1шт.

20

RE19800

Clamp

1шт.

21

51M7040

O-Ring

9.300 X 2.200 mm

1шт.

22

RE60029

Adapter Fitting

1шт.

23

14M7273

Nut

M8 (SUB FOR (3) 14M7298)

3шт.

24

26H10

Shaft Key

5/32" X 5/8"

1шт.

25

RE67765

Fuel Injection Pump

(A) (STANADYNE DB46295327)

1шт.

SE500650

Fuel Injection Pump Reman

(A) (STANADYNE DB46295 327) (REMAN FOR RE67765)

1шт.

RE501328

Fuel Injection Pump

(A) (STANADYNE DB46295424)

1шт.

SE500799

Fuel Injection Pump Reman

(A) (STANADYNE DB462954 24) (REMAN FOR RE501328)

1шт.

26

19M7865

Screw

M8 X 16

1шт.

27

R116116

Bracket

1шт.

28

T14050

Clamp

1шт.

29

14M7298

Flange Nut

M8

1шт.

30

T27860

Washer

3шт.

31

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

32

R502076

O-Ring

(SUB FOR R89944)

1шт.

33

R51936

Sealing Washer

2шт.
