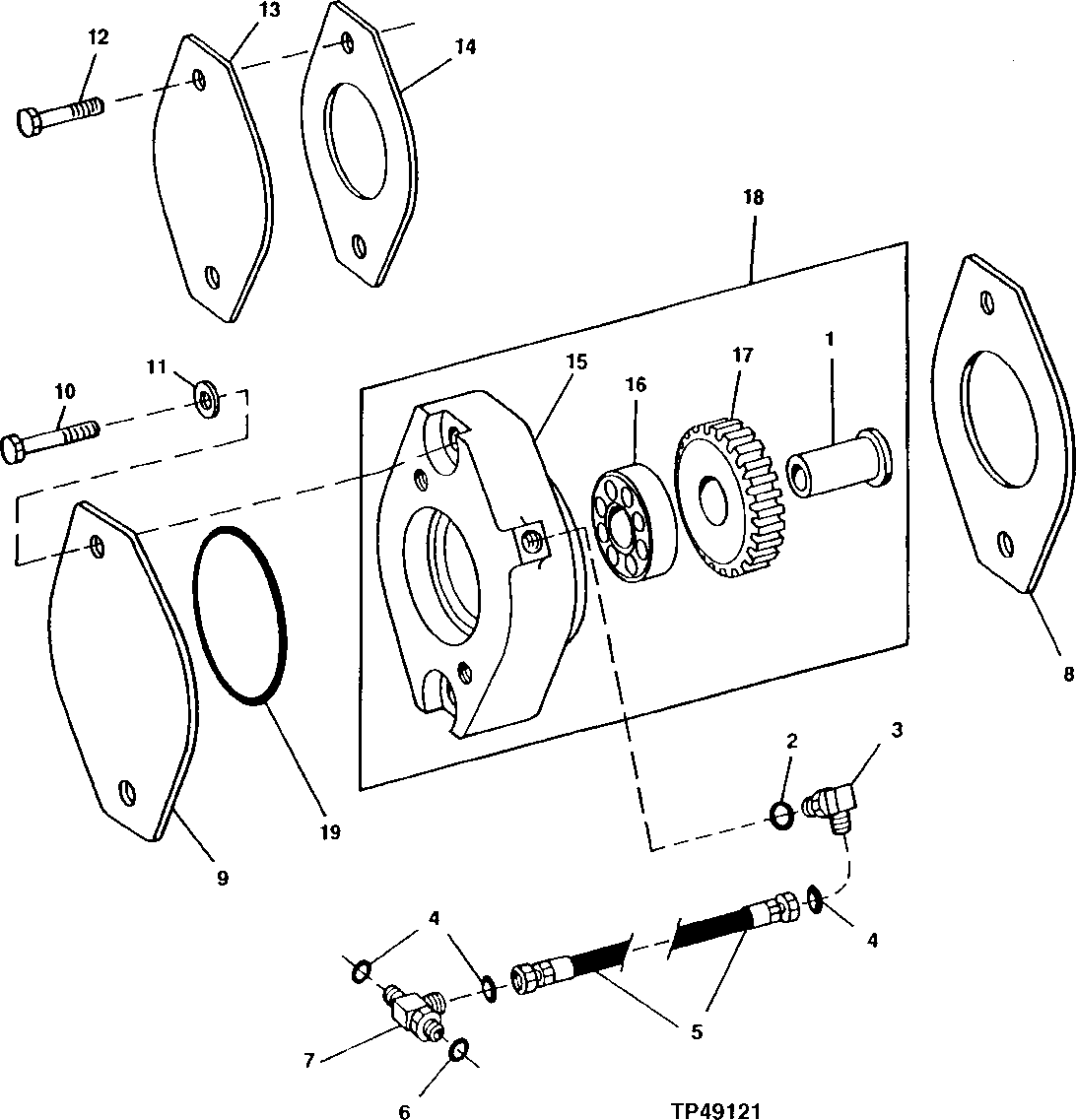

Запчасти John Deere 90ELC 388 - AUXILIARY DRIVE GEAR 4151 Gears, Shafts And Bearings

1

Shaft

1шт.

2

51M7040

O-Ring

9.300 X 2.200 mm (CODE 5201, 5202)

1шт.

3

38H5022

Elbow Fitting

(CODE 5201, 5202)

1шт.

4

T77613

O-Ring

(CODE 5201, 5202)

3шт.

5

RE60017

Hydraulic Hose

(CODE 5201, 5202)

1шт.

6

51M7042

O-Ring

13.300 X 2.200 mm (CODE 5201, 5202)

1шт.

7

38H5165

Tee Fitting

(CODE 5201, 5202)

1шт.

8

R522690

Gasket

(SUB FOR R123481 AND R1 34465)(CODE 5201, 5202)

1шт.

9

R135757

Cover

(SUB FOR R123480)(CODE 5201, 5204)

1шт.

10

19M7943

Cap Screw

M12 X 90 (CODE 5201)

2шт.

19M7753

Cap Screw

M12 X 70 (CODE 5202)

2шт.

19M7790

Screw

M12 X 35 (CODE 5204)

2шт.

11

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12

19M7785

Screw

M10 X 25 (CODE 5202)

2шт.

13

R85145

Cover

(CODE 5202)

1шт.

14

R96935

Gasket

(CODE 5202)

1шт.

15

Housing

1шт.

16

Roller Bearing

1шт.

17

Gear

1шт.

18

RE69561

Adapter Fitting

(CODE 5201) SAE "B" SIZE PUMP DRIVE

1шт.

RE69562

Adapter Fitting

(CODE 5202) SAE "A" SIZE PUMP DRIVE

1шт.

19

T20758

O-Ring

(CODE 5201, 5204)

1шт.
