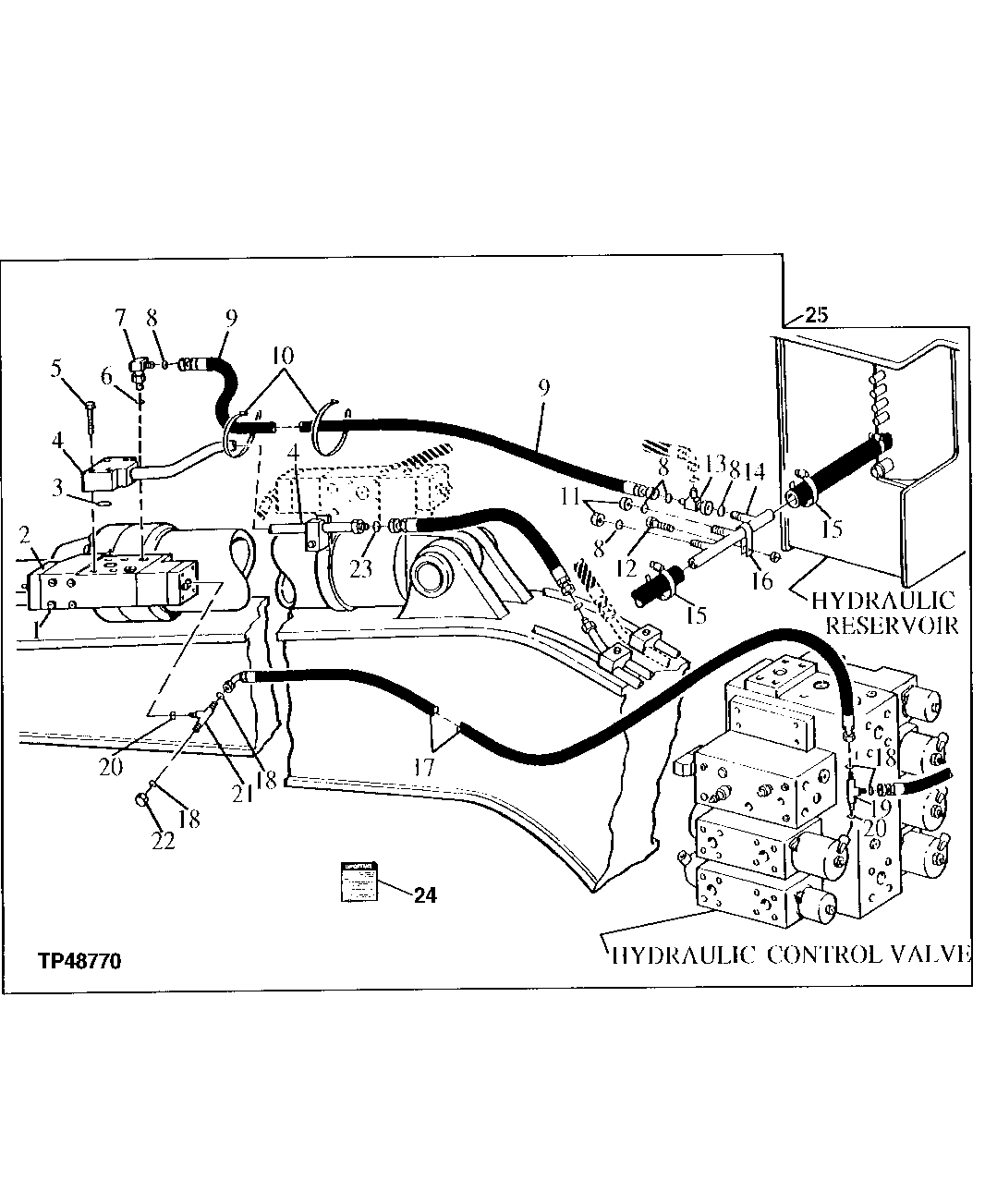

Запчасти John Deere 90ELC 386 - ROD END, ARM CYLINDER LOAD LOWERING HYDRAULICS 3360 HYDRAULIC SYSTEM

1

19M8519

Screw

M12 X 120

4шт.

2

AT168446

Hyd Actuated Control Valve

1шт.

3

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

4

AT168410

Line

1шт.

5

19M7753

Cap Screw

M12 X 70

4шт.

6

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

1шт.

7

38H1006

Elbow Fitting

1шт.

8

T77932

O-Ring

15.596 X 1.778 mm (0.614" X 0.070")

5шт.

9

AT168405

Hose

1" X 7289 mm (287") X 1"

1шт.

10

H77698

Tie Band

ARшт.

11

38H1417

Fitting

2шт.

12

19M7785

Screw

M10 X 25

1шт.

13

38H1032

Tee Fitting

1шт.

14

AT169498

Structural Tube

1шт.

15

AT152191

Hose Clamp

2шт.

16

T26955

Clamp

1шт.

17

AT168393

Hose

17.4752" X 6350 mm (250") X 17.4752"

1шт.

18

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

4шт.

19

38H1023

Tee Fitting

1шт.

20

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

21

38H1016

Tee Fitting

1шт.

22

38H1415

Fitting

1шт.

23

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

24

T157676

Label

LOAD LOWERING

1шт.

25

Package Of Parts

KIT, ARM CYLINDER ROD END LOAD LOWE RING ( AT168449 NO LONGER AVAILABLE)

1шт.
