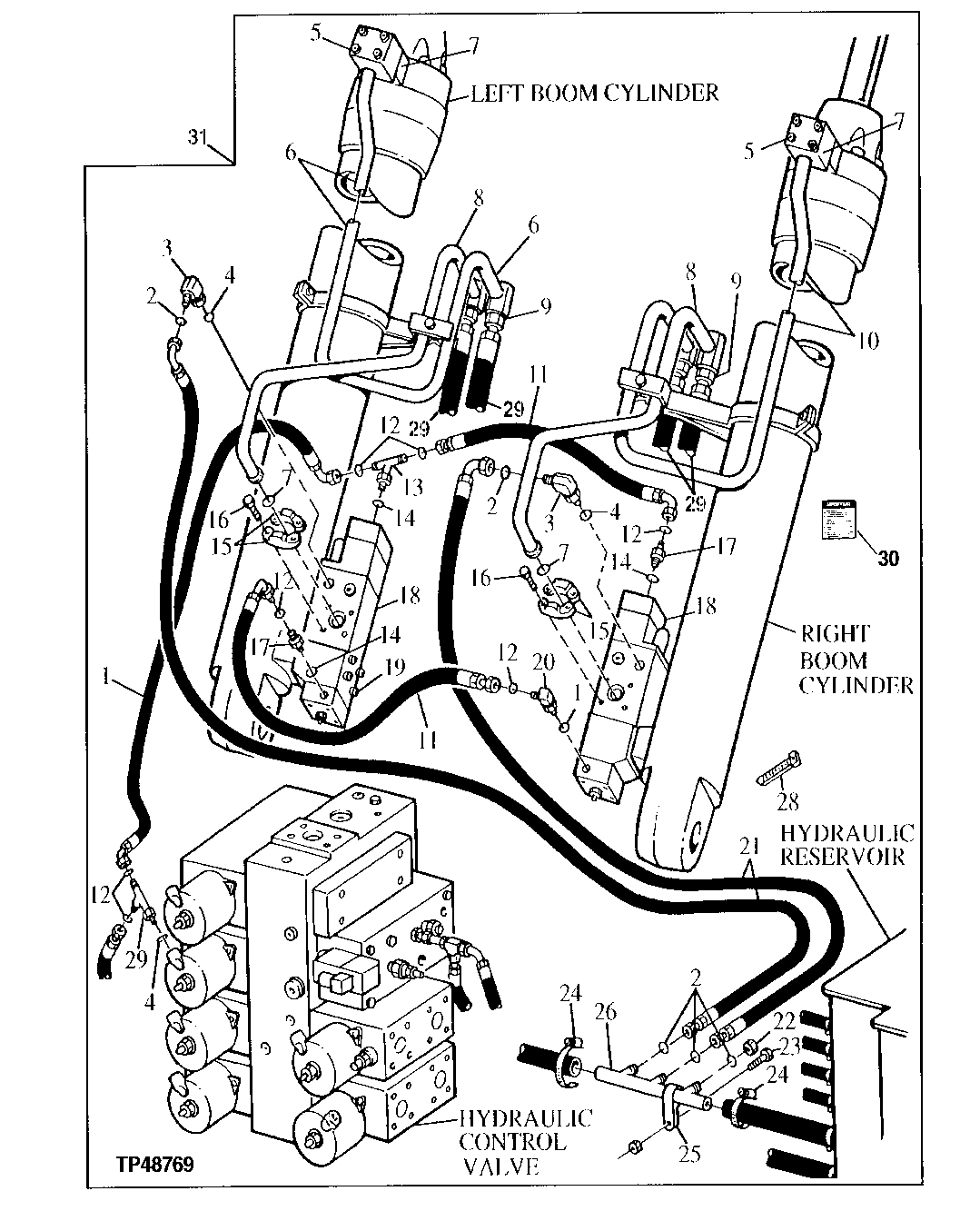

Запчасти John Deere 90ELC 385 - BOOM CYLINDER LOAD LOWERING VALVE HYDRAULICS 3360 HYDRAULIC SYSTEM

1

AT168402

Hose

17.4752" X 2324 mm (91-1/2") X 17.4752"

1шт.

2

T77932

O-Ring

15.596 X 1.778 mm (0.614" X 0.070")

5шт.

3

38H1006

Elbow Fitting

2шт.

4

R26906

O-Ring

19.177 X 2.464 mm (0.755" X 0.097")

3шт.

5

19M8441

Screw

M10 X 60

8шт.

6

AT168381

Line

1шт.

7

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

8

AT168413

Line

2шт.

9

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

10

AT168382

Line

1шт.

11

AT168403

Hose

17.4752" X 330 mm (13") X 17.4752"

2шт.

12

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

7шт.

13

38H1016

Tee Fitting

1шт.

14

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

15

T107068

Flange Fitting

4шт.

16

19M7496

Cap Screw

M12 X 45

8шт.

17

38H1160

Adapter Fitting

2шт.

18

AT168448

Hyd Actuated Control Valve

2шт.

19

19M8519

Screw

M12 X 120

8шт.

20

38H1004

Elbow Fitting

1шт.

21

AT168408

Hose

1" X 2133 mm (84") X 1"

2шт.

22

38H1417

Fitting

1шт.

23

19M7785

Screw

M10 X 25

1шт.

24

AT152191

Hose Clamp

2шт.

25

T26955

Clamp

1шт.

26

AT169498

Structural Tube

1шт.

27

38H1030

Tee Fitting

1шт.

28

H77698

Tie Band

ARшт.

29

AT173736

Hydraulic Hose

30.1752" X 901 mm (35-1/2") X 30.1752"

4шт.

30

T157676

Label

LOAD LOWERING

2шт.

31

Package Of Parts

KIT, BOOM CYLINDER LOAD LOWERING ( AT168451 NO LONGER AVAILABLE)

1шт.
