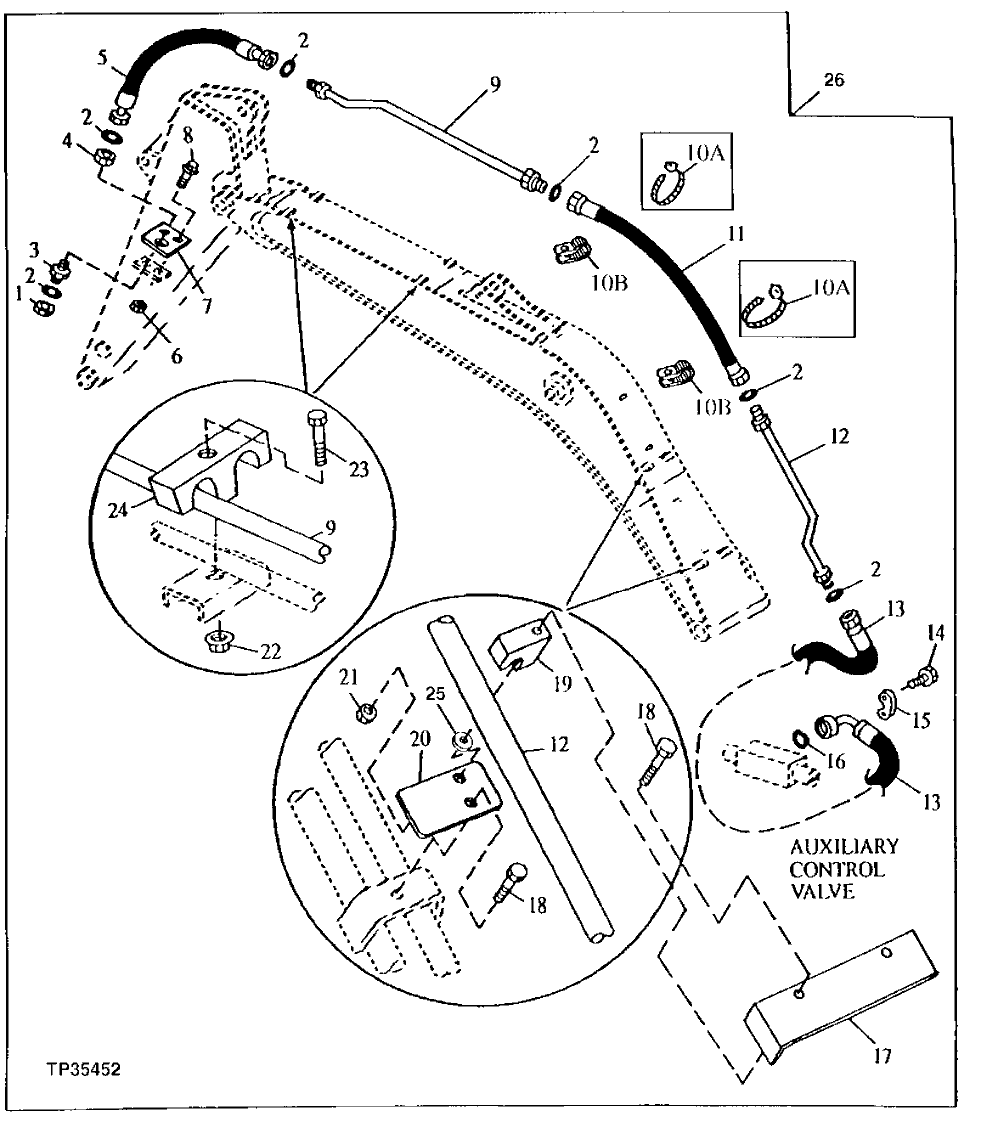

Запчасти John Deere 90ELC 381 - BOOM AND ARM AUXILIARY HYDRAULIC LINES (541136 - ) 3360 HYDRAULIC SYSTEM

1

38H1419

Fitting

2шт.

2

T76938

O-Ring

12шт.

3

38H1287

Adapter Fitting

2шт.

4

T78715

Nut

2шт.

5

AT162843

Hydraulic Hose

2шт.

6

14M7400

Lock Nut

M10

4шт.

7

T144743

Strap

2шт.

8

19M7835

Screw

M10 X 35

4шт.

9

AT162715

Oil Line

LEFT (WHEN ORDERED PRIOR TO SERIAL NUMB ER 551586 ALSO ORDER(4) 24H1346 WASHERS)

1шт.

AT162715

Oil Line

RIGHT (WHEN ORDERED PRIOR TO SERIAL NUMB ER 551586 ALSO ORDER(4) 24H1346 WASHERS)

1шт.

10A

N189220

Tie Band

6шт.

10B

T153064

Clamp

4шт.

11

AT162716

Hydraulic Hose

LEFT

1шт.

AT162716

Hydraulic Hose

RIGHT

1шт.

12

AT162714

Oil Line

LEFT

1шт.

AT162714

Oil Line

RIGHT

1шт.

13

AT162717

Hydraulic Hose

3/4" X 2389 mm (94") X 36.5252" LEFT

1шт.

AT178406

Hose

3/4" X 1117 mm (44") X 36.5252" LEFT

1шт.

AT162718

Hydraulic Hose

3/4" X 1204 mm (47-1/2") X 36.5252" RIGHT

1шт.

AT178407

Hose

3/4" X 1422 mm (56") X 36.5252" RIGHT

1шт.

14

19M8881

Screw

M10 X 30

8шт.

15

T107446

Flange Fitting

4шт.

16

T59014

O-Ring

2шт.

17

T144746

Guard

1шт.

18

19M7818

Screw

M12 X 80

8шт.

19

T104355

Clamp

4шт.

20

T144741

Strap

4шт.

21

14M7401

Lock Nut

M12

4шт.

22

14M7299

Flange Nut

M12

4шт.

23

19M7753

Cap Screw

M12 X 70

4шт.

24

T142129

Clamp

4шт.

25

24H1346

Washer

17/32" X 1-3/4" X 0.120"

4шт.

26

Kit

AUXILIARY HYDRAULIC LINES ( AT156891 NO LONGER AVAILABLE)

1шт.

Kit

AUXILIARY HYDRAULIC LINES ( AT178408 NO LONGER AVAILABLE)

1шт.
