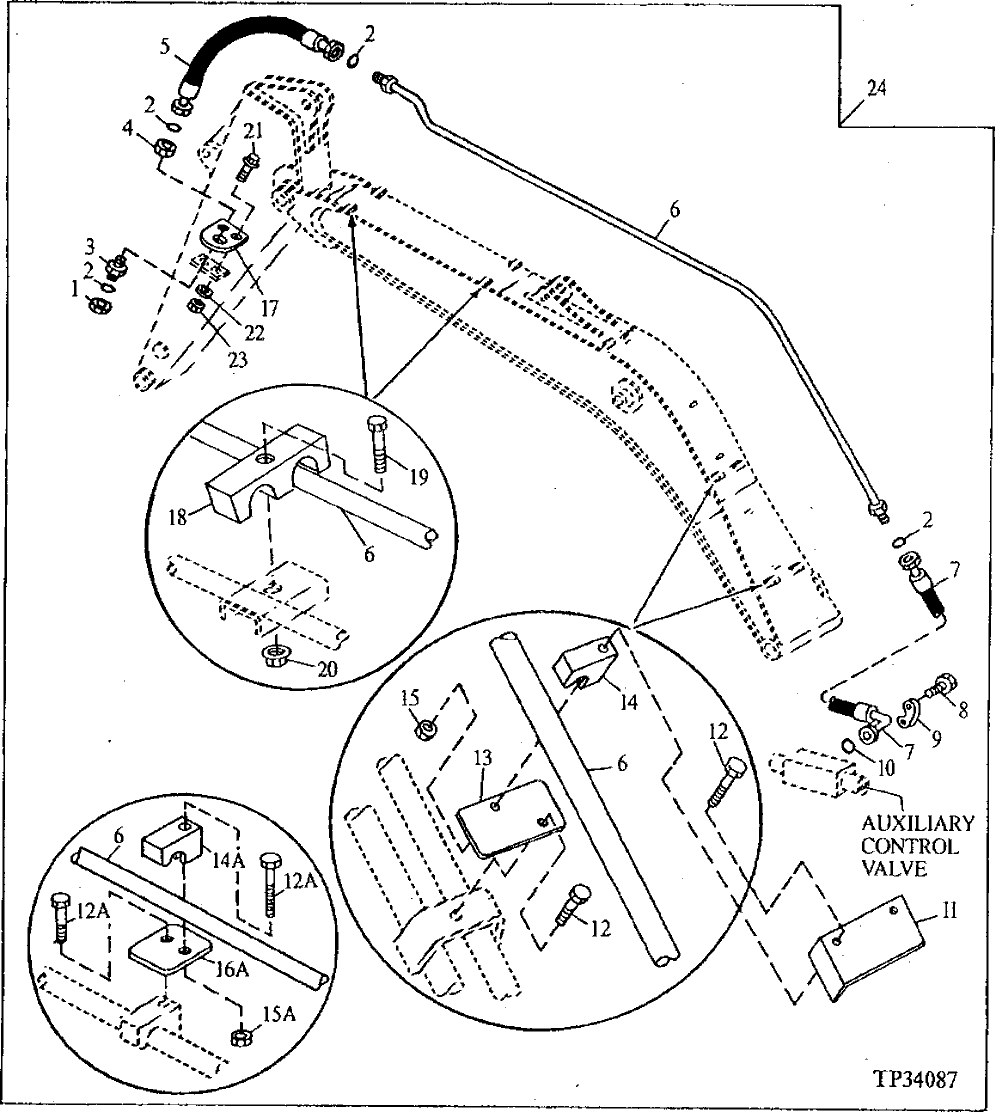

Запчасти John Deere 90ELC 380 - BOOM AND ARM AUXILIARY HYDRAULIC LINES ( - 541135) 3360 HYDRAULIC SYSTEM

1

38H1418

Fitting

2шт.

2

T77858

O-Ring

8шт.

3

38H1276

Adapter Fitting

2шт.

4

T78707

Nut

2шт.

5

AT147203

Hydraulic Hose

2шт.

6

AT169521

Oil Line

(SUB FOR AT163111 ) (SU B FOR AT139595)LEFT SIDE

1шт.

AT169520

Oil Line

(SUB FOR AT163109 ) (SUB FOR AT139594)RIGHT SIDE

1шт.

7

AT158419

Hydraulic Hose

LEFT SIDE

1шт.

AT158420

Hydraulic Hose

RIGHT SIDE

1шт.

8

19M8881

Screw

M10 X 30

8шт.

9

T107446

Flange Fitting

4шт.

10

T59014

O-Ring

2шт.

11

T144746

Guard

1шт.

12

19M7818

Screw

M12 X 80

8шт.

12A

19M7818

Screw

M12 X 80

12шт.

13

T144742

Adjusting Strap

4шт.

14

T139648

Clamp

4шт.

14A

T139648

Clamp

6шт.

15

14M7401

Lock Nut

M12

4шт.

15A

14M7401

Lock Nut

M12

6шт.

16A

Strap

( T144741 NO LONGER AVAILABLE)

4шт.

17

T144743

Strap

2шт.

18

T142128

Clamp

4шт.

19

19M7753

Cap Screw

M12 X 70

4шт.

20

14M7299

Flange Nut

M12

4шт.

21

19M7835

Screw

M10 X 35

4шт.

22

Washer

(WASHER NO LONGER REQUIRED)

4шт.

23

14M7400

Lock Nut

M10

4шт.

24

Kit

AUXILIARY HYDRAULIC LINES (A T156891 NO LONGER AVAILABLE)

1шт.
