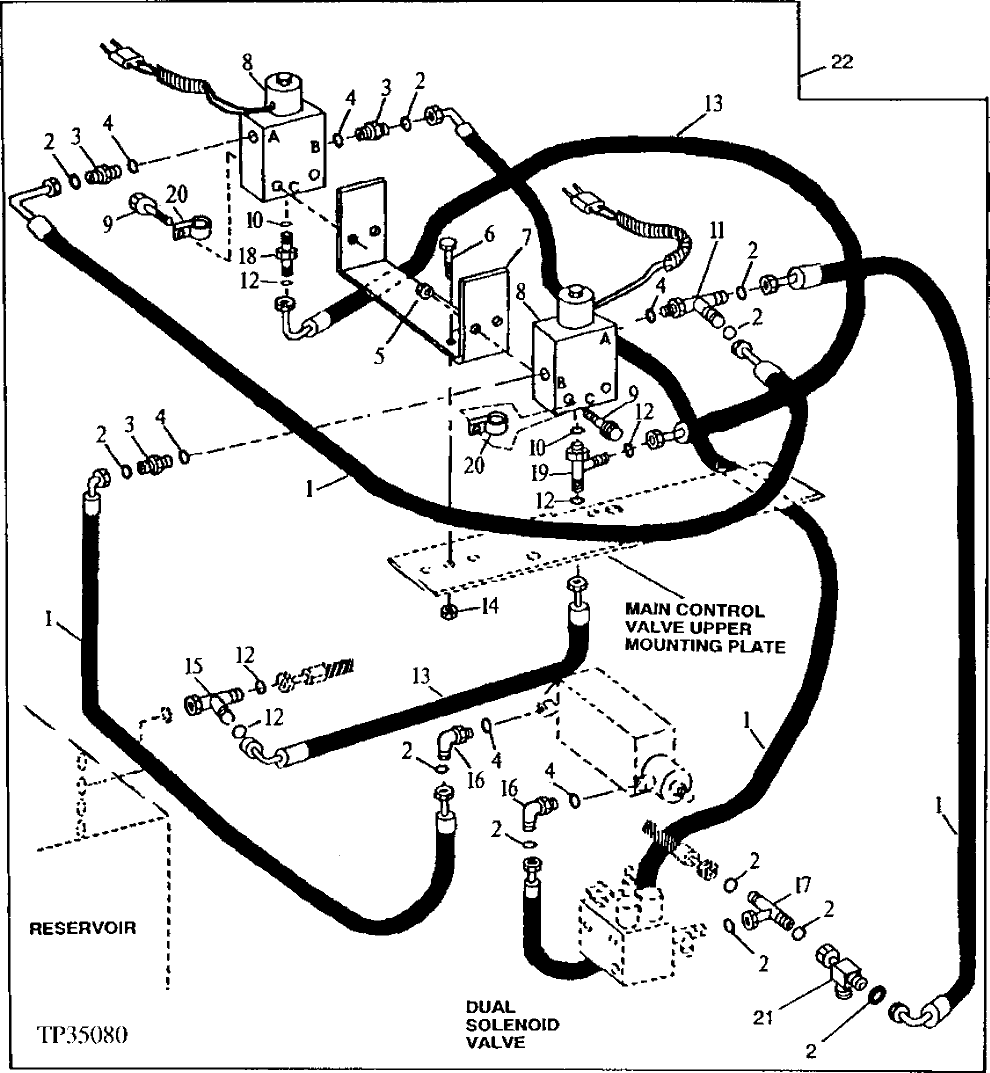

Запчасти John Deere 90ELC 377 - AUXILIARY CONTROL AND SOLENOID VALVES, LINES AND FITTINGS ( - 556935) 3360 HYDRAULIC SYSTEM

1

AT152147

Hydraulic Hose

(SUB FOR AT103379, THIS APPLICATION)

4шт.

2

T77613

O-Ring

11шт.

3

38H1160

Adapter Fitting

3шт.

4

R26448

O-Ring

6шт.

5

14M7401

Lock Nut

M12

4шт.

6

19M7789

Screw

M12 X 30

2шт.

7

T145176

Channel

1шт.

8

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR A T115437 ) (SUB FOR AT116486, AT140041)

2шт.

9

19M7808

Screw

M10 X 65

4шт.

10

R26375

O-Ring

2шт.

11

38H1023

Tee Fitting

1шт.

12

T77857

O-Ring

5шт.

13

AT170474

Hydraulic Hose

13/16" X 850 mm (33-1/2") X 13/16" (SUB FOR AT83275)

2шт.

14

14M7400

Lock Nut

M10

2шт.

15

38H1031

Tee Fitting

1шт.

16

38H1004

Elbow Fitting

2шт.

17

38H1038

Tee Fitting

1шт.

18

38H1161

Adapter Fitting

1шт.

19

38H1024

Tee Fitting

1шт.

20

T19935

Clamp

2шт.

21

38H1030

Tee Fitting

1шт.

22

Control

AUXILIARY ( AT159661 NO LONG ER AVAILABLE, SUB COMPONENTS)

1шт.
