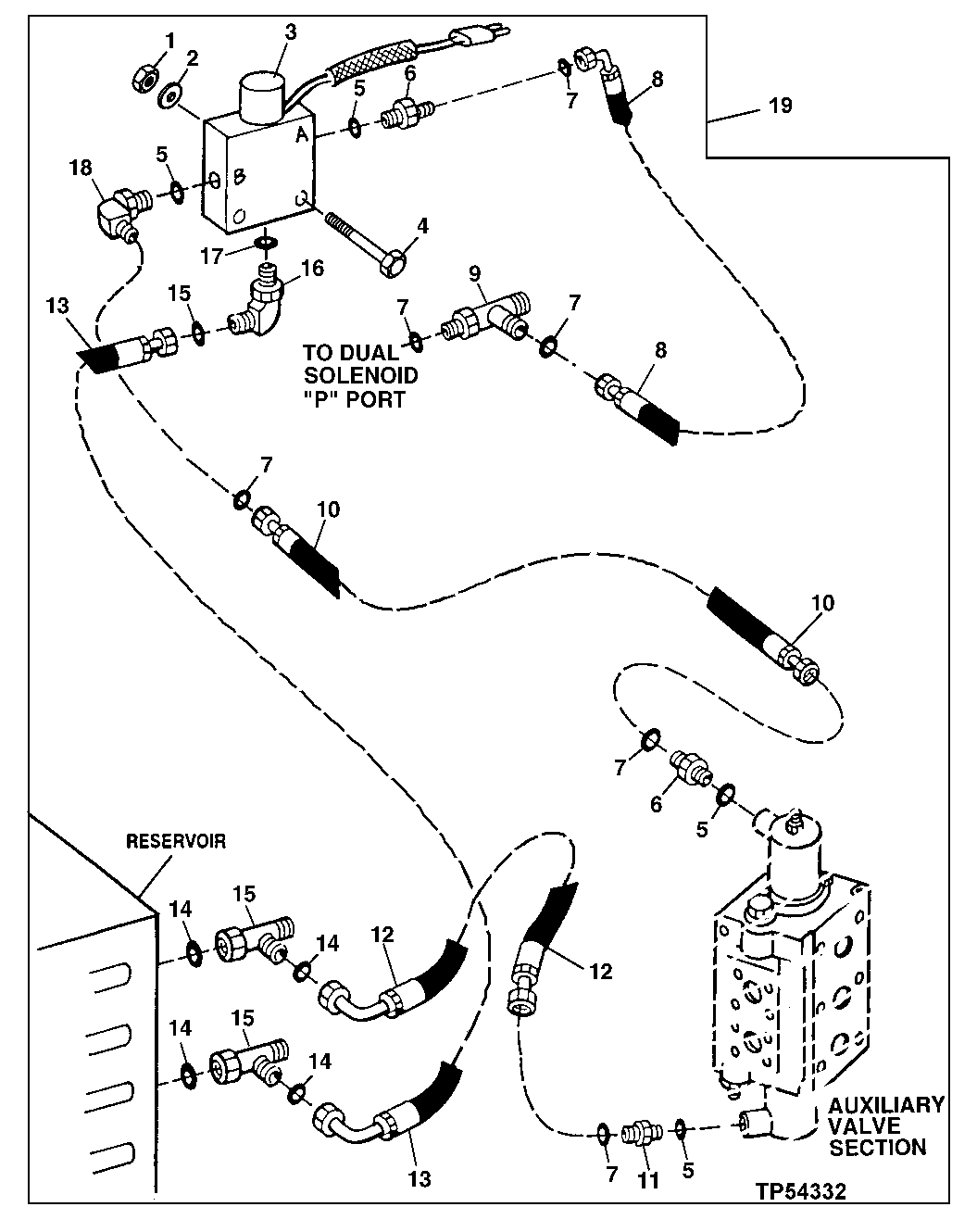

Запчасти John Deere 90ELC 376 - SINGLE SOLENOID (556936 - ) 3360 HYDRAULIC SYSTEM

1

14M7166

Lock Nut

M8

2шт.

2

24M7298

Washer

8.400 X 25 X 2 mm (SUB FOR 24M7207)

2шт.

3

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR A T115437 ) (SUB FOR AT116486, AT140041)

1шт.

4

19M7802

Screw

M8 X 65

2шт.

5

R26448

O-Ring

4шт.

6

38H1160

Adapter Fitting

2шт.

7

T77613

O-Ring

5шт.

8

AT116449

Hydraulic Hose

1шт.

9

38H1030

Tee Fitting

1шт.

10

AT177789

Hydraulic Hose

1шт.

11

38H1173

Adapter Fitting

1шт.

12

AT178743

Hydraulic Hose

1шт.

13

AT178391

Hydraulic Hose

1шт.

14

T77857

O-Ring

5шт.

15

38H1031

Tee Fitting

2шт.

16

38H1005

Elbow Fitting

1шт.

17

R26375

O-Ring

1шт.

18

38H1004

Elbow Fitting

1шт.

19

Package Of Parts

SINGLE SOLENOID AUXILIARY PILOT (FIEL D KIT) ( AT178382 NO LONGER AVAILABLE)

1шт.
