371 - AUXILIARY CONTROL VALVE(S) MOUNTING (556936 - )

Запчасти John Deere 90ELC 371 - AUXILIARY CONTROL VALVE(S) MOUNTING (556936 - ) 3360 HYDRAULIC SYSTEM

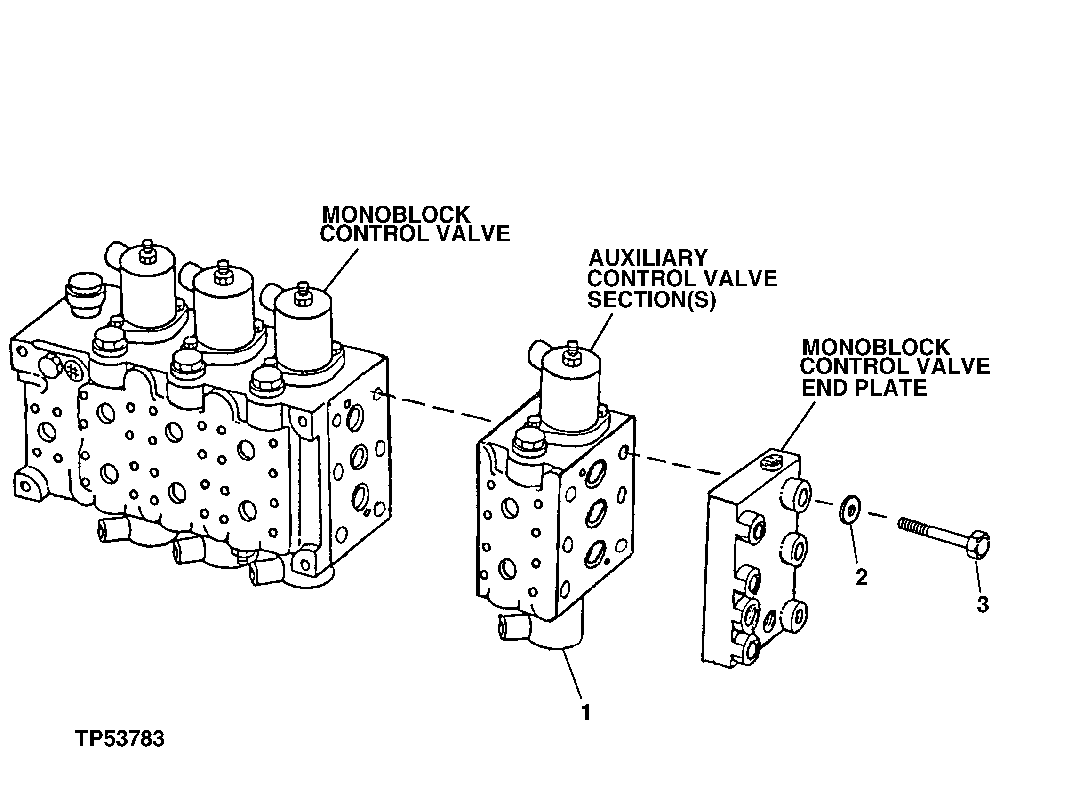

Схема запчастей John Deere 90ELC - 371 - AUXILIARY CONTROL VALVE(S) MOUNTING (556936 - ) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Valve

AUXILIARY CYLINDER AND/OR MOTOR

1шт.

2

Washer

ONE VALVE - NO WASHERS REQUIRED

ARшт.

R63845

Washer

TWO VALVES - USE IF REQUIRED

ARшт.

R63845

Washer

THREE VALVES

6шт.

3

19M8915

Screw

M10 X 130 ONE VALVE INSTALLATION

6шт.

19M8310

Cap Screw

M10 X 220 TWO VALVE INSTALLATION

6шт.

19M8173

Cap Screw

M10 X 280 THREE VALVE INSTALLATION

6шт.
